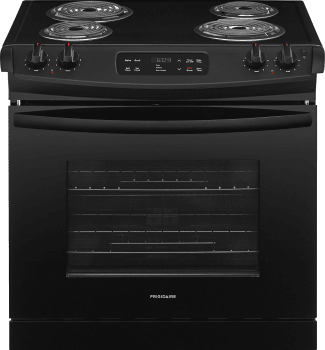

Frigidaire FFED3016TB - Black Front View
Frigidaire FFED3016TB - Black Front View
Frigidaire FFED3016TB - Side View
Frigidaire FFED3016TB - Side View
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FFED3016TB
Authorized
Dealer

Frigidaire
FFED3016TB
30 Inch Drop-In Electric Range with Vari-Broil™ Hi/Lo, Oven Auto Shut-Off, One-Touch Self Clean, Ready-Select® Controls, ADA Compliant and 4.6 cu. ft. Oven Capacity: Black

Top Quality Store on Google
quick specs
Sabbath Mode: No
Cooktop: Coil
Drawer: None
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 26 1/2 Inch
Number of Burners: 4
Primary Oven Capacity: 4.6 Cu. Ft.
Hot Surface Indicator Light: Yes
Induction: No
Convection: No
Self-Cleaning: Yes
Temperature Probe: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Frigidaire
Model: FFED3016TB
Warranty Terms: 1 year
?
Appearance
Fuel Type: Electric
Style: Drop-In
Color: Black
Stainless Steel Handle: No
Cooktop: Coil
Cooktop Control Type: Knobs
Oven Control Type: Touchpad
Viewing Window: Yes
Double Oven: No
Drawer: None
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 26 1/2 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 18 3/4 Inch
Interior Height: 17 1/2 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Capacity
Number of Burners: 4
Primary Oven Capacity: 4.6 Cu. Ft.
Burner
Burner 1 Output: 1500
Burner 2 Output: 2600
Gas Cooktop Features
Grill: No
Griddle: No
French Top: No
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: No
Proof Mode: No
Self-Cleaning: Yes
Racks: 2
Temperature Probe: No
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
ADA Compliant: Yes
Oven Wattage: 2,750
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 012505804410
EAN: 0012505804410
Are you a Trade Pro? Join Now

Description

30 Inch Drop-In Electric Range with Vari-Broil™ Hi/Lo
This easy to use electric range by Frigidaire is dropped into place for a perfect fit. The Vari-Broil™ two position broiling provides variable temperature control for cooking under your ideal conditions. The large capacity oven offers more room to cook more dishes at once. The Extra-Large viewing window makes it easy to keep an eye on everything being baked inside the oven. Once its all done the oven rack handles with room for an oven mitt makes it easy and safe to remove it all.

Specifications

Oven Features
Oven Light:
1 Halogen
Baking System:
Even Baking Technology
Rack Configuration:
2 Handle Racks
Broiling System:
Vari-Broil™ Hi/Lo
Bake Element Watts:
2,750
Broil Element Watts:
3,400
Bake Element Watts:
2,750
Auto Oven Shut-Off:
12 Hours
Dimensions & Weight
Product Width:
30"
Product Depth:
28 5/16"
Product Height:
26 1/2"
Depth w/ Door Open 90˚:
47 9/16"
Weight:
170 lbs
Cutout Dimensions
Width Min:
29 15/16"
Width Max:
30 1/16"
Depth Min:
21 3/4"
Depth Max:
22 1/8"
Height:
29"
Electrical Specifications
Volts:
240V/208V
Amps:
40A
Warranty
Parts & Labor:
1 Year Limited

Features

Vari-Broil™ Hi/Lo
  • Offers two-position broiling and variable temperature control.
Oven Auto Shut-Off
  • As an extra safety measure, the oven will automatically shut off after 12 hours.
Ready-Select® Controls
  • Easy to use oven controls.
One-Touch Self Clean
  • Your oven cleans itself - so you don't have to. Self clean options available in 2- and 3-hour cycles.
Certifications
  • ADA Compliant
4.6 cu. ft. Oven Capacity
  • Capacity
