Quick Specs

Product Information
Brand: Frigidaire
Model: FFED3015PB
Appearance
Fuel Type: Electric
Style: Drop-In
Color: Black
Cooktop: Coil
Stainless Steel Handle: No
Viewing Window: Yes
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 26 1/2 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 18 3/4 Inch
Interior Height: 17 1/2 Inch
Burner Output
Set 1 QTY: 2
Set 1 Output: 2600
Set 2 QTY: 2
Set 2 Output: 1500
Cooktop Features
Burners / Elements: 4
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Hot Surface Indicator Light: No
Induction: No
Grill: No
Griddle: No
Oven Features
Primary Oven Capacity: 4.6 Cu. Ft.
Oven Control Type: Digital
Digital Temperature Display: Yes
Timer: Yes
Convection: No
Self-Cleaning: Yes
Delay Bake: Yes
Proofing: No
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 2
Removable Door: Yes
Technical Details
Star-K Certified: No
ADA Compliant: Yes
Oven Wattage: 3400
Amps: 40
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
List Price:
$1,199.00
Price:
$1,073.10
You Save:
$125.90 (10%) Ends 12/04
Additional Savings in Cart - Ends Today!
$78.25/month with No Interest for 12 months if paid in full. Learn More.
Warranty
5 Year In Home Service - 50% Cash Back! +$199.00
3 Year In Home Service +$89.99
Decline Protection

Image Disclaimer

Authorized
Dealer

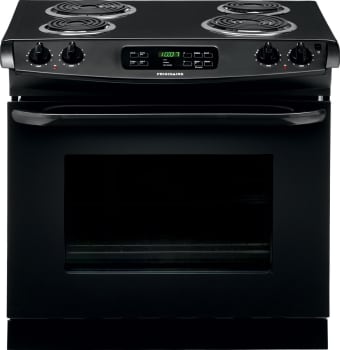

Frigidaire FFED3015PB
30 Inch Drop-in Electric Range

  • 4 Coil Elements
  • 4.6 cu. ft. Oven
  • Ready-Select Controls
  • Delay Clean Option
  • Self-Cleaning Mode
  • ADA Compliant
FREE Nationwide Delivery
Option: Black
Black
FFED3015PB
$1,073.10
Additional Options
Add
Backguard Kit: Black 9030469010 preview + $59.00
Add
Black Side Trim Kit 9030769010 + $189.00
Our Recommendations
Add
$99.00

Quick Specs

Product Information
Brand: Frigidaire
Model: FFED3015PB
Appearance
Fuel Type: Electric
Style: Drop-In
Color: Black
Cooktop: Coil
Stainless Steel Handle: No
Viewing Window: Yes
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 26 1/2 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 18 3/4 Inch
Interior Height: 17 1/2 Inch
Burner Output
Set 1 QTY: 2
Set 1 Output: 2600
Set 2 QTY: 2
Set 2 Output: 1500
Cooktop Features
Burners / Elements: 4
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Hot Surface Indicator Light: No
Induction: No
Grill: No
Griddle: No
Oven Features
Primary Oven Capacity: 4.6 Cu. Ft.
Oven Control Type: Digital
Digital Temperature Display: Yes
Timer: Yes
Convection: No
Self-Cleaning: Yes
Delay Bake: Yes
Proofing: No
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 2
Removable Door: Yes
Technical Details
Star-K Certified: No
ADA Compliant: Yes
Oven Wattage: 3400
Amps: 40
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience and style; an appliance that has been designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances, offering superior products and service to rival many other companies.

Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart. This 30" freestanding electric range features a quick clean function and the Store-More storage drawer. Let's not forget about the Ready-Select controls that allow you to easily select options with the touch of a button. Get yours today at AJ Madison.

Specifications

Features
Oven Capacity:
4.6 Cu. Ft.
Oven Control / Timing System:
Ready-Select
Surface Type:
Black Porcelain
Window:
Extra-Large
Exterior Door Finish:
Black
Handle Design:
Black
Exterior Finish (Side Panels):
Black
Convection System:
No
Oven Cleaning System:
Self-Clean
Drawer Functionality:
No
Cooktop Features
Right Front Element:
8" - 2,600 Watts
Right Rear Element:
6" - 1,500 Watts
Left Front Element:
6" - 1,500 Watts
Left Rear Element:
8" - 2,600 Watts
Center Element:
No
Hot Surface Indicator Light:
No
Coil Cooktop:
Yes
Drip Bowls:
Chrome
Oven Features
Oven Light:
1 Halogen
Hidden Bake Element:
No
Heavy Duty Racks:
No
Offset Racks:
No
Effortless Racks:
No
Handle Racks:
2
Baking System:
Even Baking Technology
Broiling System:
Vari-Broil Hi/Lo
Bake Element:
2,750 Watts
Broil Element:
3,400 Watts
Convection Element:
No
Drawer Rack:
No
Oven Controls
Bake:
Yes
Broil:
Low and High
Add-a-Minute:
No
Delay Start:
Yes
Self-Clean:
Yes
Clean Options:
2, 3 Hours
Steam Clean:
No
Delay Clean:
2, 3 Hours
Kitchen Timer:
Yes
Timed Cook Option:
Yes
Auto Oven Shut-Off:
12 Hours
Lower Drawer Control:
No
Certifications
A.D.A. Compliant:
Yes
Sabbath Mode:
No
Star-K Certified:
No
Specifications
Power Supply Connection Location:
Left Bottom Rear
Voltage Rating:
240V / 208V / 60Hz
Connected Load (kW Rating) @ 240/208 Volts:
11.6/8.7 kW
Amps @ 240/208 Volts:
48.3/41.8 Amps
Minimum Circuit Required:
40 Amps
Dimensions and Weights
Overall Width:
30"
Overall Depth:
28 5/16"
Overall Depth with Door Open 90°:
47 9/16"
Overall Height:
26 1/2"
Oven Interior Width:
24 1/8"
Oven Interior Depth:
18 3/4"
Oven Interior Height:
17 1/2"
Cutout Width:
29 15/16" - 30 1/16"
Cutout Depth:
21 3/4" - 22 1/8"
Cutout Height:
29"
Shipping Weight (Approx.):
170.0 Lbs.

Features

Large Capacity Oven

Larger capacity means more space to cook more dishes at once. Holiday meals and large family gatherings are no match for this huge oven.

Multiple Broil Options

Multiple Broil Options

With multiple broiling options on hand, you’ll never be left wanting. No matter what dish you’re preparing this broiler has a setting to perfectly suit your needs.

Quick Clean

Frigidaire’s quick self-clean cycle will clean your oven in just two hours. Not only do you not have to do the cleaning, but it’s done so quickly you can run it in between meals.

Power Clean

Power Clean

25% more self-cleaning power than average units. With extra power on hand you can forget the elbow grease and let this range do all the work for you.

Delay Clean

Delay Clean

Want the oven to clean itself while you’re out? Just set the delay clean function accordingly and, voila – return to cleanliness!

Oven Rack Handles

Oven Rack Handles

Specially designed oven racks are easy to pull out, even while wearing thick oven mitts. Thanks to these generously sized handles, you no longer have to wrestle with awkward oven racks. It’s so easy!

Color-Coordinated Oven Door with Large Window

Color-Coordinated Oven Door with Large Window

Monitor meals as they cook without opening the oven door. It’s more efficient, more precise and reduces cooking times.

Ready-Select® Controls

Frigidaire’s simple control panel makes adjusting temperatures and other settings a breeze. Ready-Select® controls are simple and easy to use, while always in reach.

Built with American Pride

Built with American Pride

This range was designed, engineered and assembled in the USA. It’s just one of many high-performing and highly innovative appliances from Frigidaire’s American manufacturing facilities.
