Frigidaire FCVW3652AS - 36 Inch Under Cabinet Range Hood
Frigidaire FCVW3652AS - 36 Inch Under Cabinet Range Hood
Frigidaire FCVW3652AS - 36 Inch Under Cabinet Range Hood Left Angle
Frigidaire FCVW3652AS - 36 Inch Under Cabinet Range Hood Right Angle
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FCVW3652AS
Authorized
Dealer

Frigidaire
FCVW3652AS
36 Inch Under Cabinet Range Hood with 220 CFM Internal Blower, Filter Indicator Light, Rocker Switch Control, LED Lighting, and Convertible Design

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 36 Inch
Depth: 19 3/4 Inch
Height: 4 15/16 Inch
WiFi: No
CFM: 220 CFM
Permanent Air Flow Reduction: No
Noise Level: 5.8 Sones
Number of Fan Speeds: 2
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Warranty Terms: 1 year
?
View more
$289.00
MSRP: $499.00
You save $210.00
OR
Have questions? Chat with us!

You Might Also Like

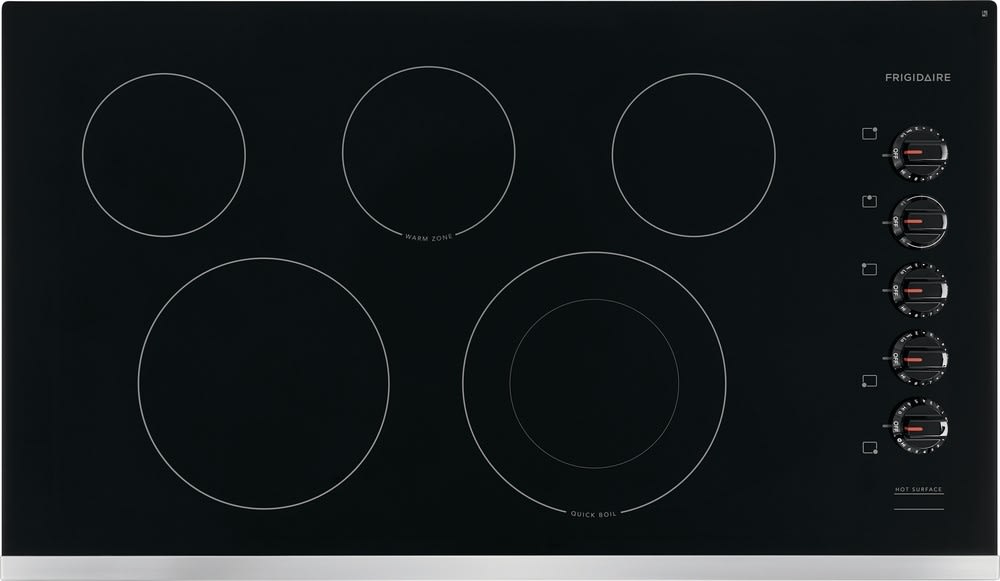

36 Inch Electric Cooktop
Frigidaire
36 Inch Electric Cooktop
$679.00
30 Inch Freestanding Electric Range
Frigidaire
30 Inch Freestanding Electric Range
$649.00

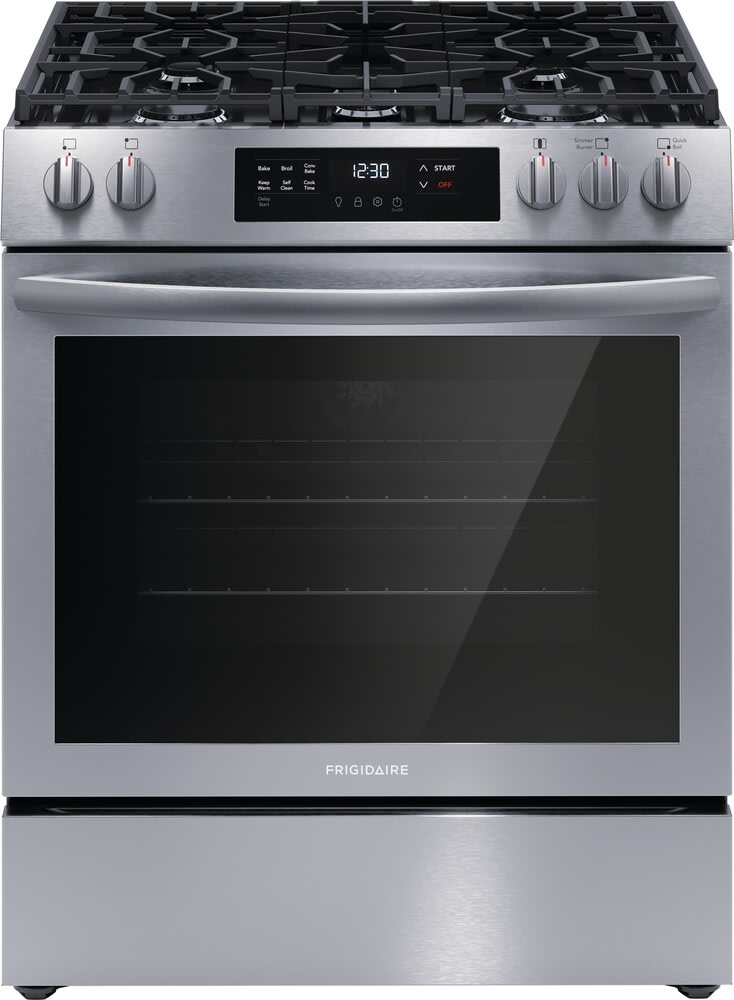

30 Inch Freestanding Gas Range
Frigidaire
30 Inch Freestanding Gas Range
$799.00
Product Information
Brand: Frigidaire
Model: FCVW3652AS
Warranty Terms: 1 year
?
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 36 Inch
Depth: 19 3/4 Inch
Height: 4 15/16 Inch
Smart
WiFi: No
Capacity
CFM: 220 CFM
Permanent Air Flow Reduction: No
Noise Level: 5.8 Sones
Features
Number of Fan Speeds: 2
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Tunable Lighting: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 810143400267
Are you a Trade Pro? Join Now

Description

36 Inch Under Cabinet Range Hood with 220 CFM Internal Blower
Never worry about stale odors in your kitchen again with the Frigidaire Undercabinet 36" Ventilation Hood. It features a filter indicator light that reminds you when it's time to replace your carbon charcoal filter to continue capturing odors and circulating fresher air. This Undercabinet Ventilation Hood has a dual-speed fan that recirculates air at 220 CFM. The LED lighting illuminates the cooktop, while the switch controls offer an effortless selection of fan and lighting options.

Specifications

Ventilation System
Ventilation Options:
Convertible
Ducted Vent:
Optional (See Manual)
Ductless Vent:
Yes - Out of the Box
Exhaust Fan Speeds:
2
Maximum Air Flow Capacity:
220 CFM
Minimum Air Flow Capacity:
100 CFM
Maximum Sones Rating:
5.8 Sone
Minimum Sones Rating:
2.7 Sone
Grease Filter Included:
Yes
Grease Filter Quantity:
2
Grease Filter Type:
Aluminum Mesh
Grease Filter Dishwasher Safe:
Yes
Charcoal Filter Included:
Yes
Charcoal Filter Quantity:
2
Controls
Control Type:
Rocker Switch Control
Filter Change Indicator:
Yes
Surface Light System
Lighting Type:
LED Strip
Number of Lights:
1
Number of Light Settings:
2
Installation
Duct Exit Location:
Top
Hardwired:
Yes
Power Supply Connection Type:
Hard Wired
Electrical Specifications
Voltage Rating:
120 V
Watts @ 120 Volts:
42 Watts
Dimensions and Weight
Height:
4 15/16"
Width:
36"
Depth:
19 3/4"
Product Weight:
13 lbs.
Certifications and Approvals
cUL Listed:
Yes
HVI Listed:
Yes
UL Listed:
Yes
AHAM Certified:
Yes
Warranty
Labor:
1 Year
Parts:
1 Year

Features

220 CFM Internal Blower
  • Quickly removes smoke and cooking odors from the air, ensuring a cleaner and more comfortable kitchen environment.
Two Speed Fan
  • Quickly move odors and steam away from the cooktop's surface with two levels of ventilation that recirculate air up to 220 CFM.
Filter Indicator Light
  • Let's you know when it's time to change your filter.
Dishwasher Safe Grease Filter
  • Easily clean the aluminum grease filter by putting it in the dishwasher.
Carbon Charcoal Filter Included
  • Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Rocker Switch Control
  • Quickly control fan speed and lighting levels with fan/light switch controls.
Bright LED Lighting
  • Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.
Power Button
  • Easily turn on/off the fan and light with the press of a button.
Convertible Design for Installation
  • Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
Stylish Built-in Look
  • Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
Additional Features
  • 5.8 Sone
  • UL Listed
  • AHAM Certified
