Frigidaire FCVW3062AS - 30 Inch Under Cabinet Range Hood
Frigidaire FCVW3062AS - 30 Inch Under Cabinet Range Hood
Frigidaire FCVW3062AS - 30 Inch Under Cabinet Range Hood Stainless Steel Finish
Frigidaire FCVW3062AS - 30 Inch Under Cabinet Range Hood Dishwasher Safe Grease Filter
+6

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FCVW3062AS
Authorized
Dealer

Frigidaire
FCVW3062AS
30 Inch Under Cabinet Range Hood with 330 CFM Internal Blower, Touch Control, Dishwasher Safe Grease Filter, and LED Lighting: Stainless Steel

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 30 Inch
Depth: 19 3/4 Inch
Height: 4 15/16 Inch
WiFi: No
CFM: 330 CFM
Permanent Air Flow Reduction: No
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Warranty Terms: 1 year
?
View more
Size & Color: 30 Inch; Stainless Steel
30 Inch; Stainless Steel
30 Inch; Stainless Steel
FCVW3062AS
$289.00
36 Inch; Stainless Steel
36 Inch; Stainless Steel
FCVW3662AS
$339.00
In stock
30 Inch; Black Stainless Steel
30 Inch; Black Stainless Steel
FCVW3062AD
$339.00
$289.00
MSRP: $499.00
You save $210.00
OR
Have questions? Chat with us!

You Might Also Like

30 Inch Slide-In Electric Range
Frigidaire
30 Inch Slide-In Electric Range
$1,699.00

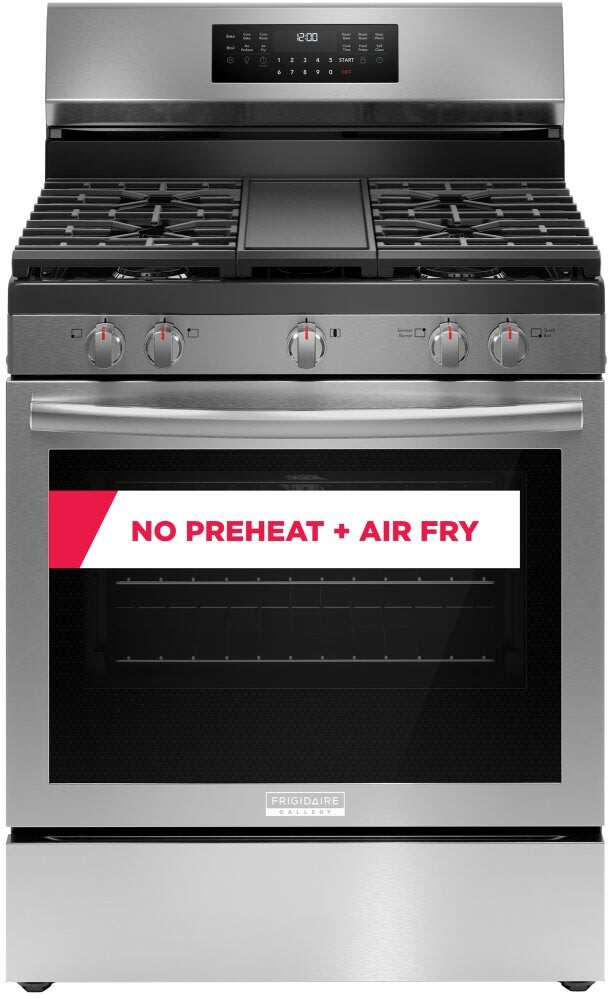

30 Inch Freestanding Gas Range
Frigidaire
30 Inch Freestanding Gas Range
$1,069.00
Electric Cooktop
Frigidaire
Electric Cooktop
$749.00
30 Inch Gas Cooktop
Frigidaire
30 Inch Gas Cooktop
$599.00
Product Information
Brand: Frigidaire
Model: FCVW3062AS
Warranty Terms: 1 year
?
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 30 Inch
Depth: 19 3/4 Inch
Height: 4 15/16 Inch
Smart
WiFi: No
Capacity
CFM: 330 CFM
Permanent Air Flow Reduction: No
Features
Number of Fan Speeds: 3
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Lighting Levels: 3
Lights: LED
Delay Shut-Off: No
Tunable Lighting: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 012505566363
EAN: 0012505566363
Are you a Trade Pro? Join Now

Description

30 Inch Under Cabinet Range Hood with 330 CFM Internal Blower
The Frigidaire Undercabinet 30" Ventilation Hood features a filter indicator light that reminds you when to replace your carbon charcoal filter to continue capturing odors and circulating fresher air. It also offers LED lighting that illuminates the cooktop for better visibility while cooking. Capacitive touch controls allow easy selection of fan and lighting settings. Additionally, the three-speed fan recirculates air efficiently at 330 CFM for optimal ventilation.

Specifications

General Specifications
General Specifications
Size:
30"
Size:
30"
Product Line:
Ventilation
Product Line:
Ventilation
Mounting Type:
Under Cabinet
Mounting Type:
Under Cabinet
Venting Type:
Convertible
Venting Type:
Convertible
Color:
Stainless Steel
Color:
Stainless Steel
Prop 65 Label:
Yes
Prop 65 Label:
Yes
Controls
Controls
Control Type:
Glass Touch
Control Type:
Glass Touch
Filter Change Indicator:
Yes
Filter Change Indicator:
Yes
Ventilation System
Ventilation System
Ventilation Options:
Convertible
Ventilation Options:
Convertible
Ducted Vent:
Optional (See Manual)
Ducted Vent:
Optional (See Manual)
Ductless Vent:
Yes - Out of the Box
Ductless Vent:
Yes - Out of the Box
Exhaust Fan Speeds:
3
Exhaust Fan Speeds:
3
Maximum Air Flow Capacity:
330 CFM
Maximum Air Flow Capacity:
330 CFM
Minimum Air Flow Capacity:
110 CFM
Minimum Air Flow Capacity:
110 CFM
Maximum Sones Rating:
10.1 sone
Maximum Sones Rating:
10.1 sone
Minimum Sones Rating:
1.7 sone
Minimum Sones Rating:
1.7 sone
Grease Filter Included:
Yes
Grease Filter Included:
Yes
Grease Filter Quantity:
2
Grease Filter Quantity:
2
Grease Filter Type:
Aluminum Mesh
Grease Filter Type:
Aluminum Mesh
Grease Filter Dishwasher Safe:
Yes
Grease Filter Dishwasher Safe:
Yes
Charcoal Filter Included:
Yes
Charcoal Filter Included:
Yes
Charcoal Filter Quantity:
2
Surface Light System
Charcoal Filter Quantity:
2
Lighting Type:
LED Strip
Surface Light System
Number of Lights:
1
Lighting Type:
LED Strip
Number of Light Settings:
3
Number of Lights:
1
Installation
Number of Light Settings:
3
Hardwired:
Yes
Installation
Duct Exit Location:
Top
Hardwired:
Yes
Power Supply Connection Type:
Hard Wired
Duct Exit Location:
Top
Electrical Specifications
Power Supply Connection Type:
Hard Wired
Voltage Rating:
120 V
Electrical Specifications
Watts @ 120 Volts:
114 Watts
Voltage Rating:
120 V
Dimensions and Weight
Watts @ 120 Volts:
114 Watts
Depth:
19 3/4"
Dimensions and Weight
Width:
30"
Depth:
19 3/4"
Height:
4 15/16"
Width:
30"
Product Weight:
13 lbs.
Height:
4 15/16"
Safety Certifications and Approvals
Product Weight:
13 lbs.
UL Listed:
Yes
Safety Certifications and Approvals
HVI Listed:
Yes
UL Listed:
Yes
cUL Listed:
Yes
HVI Listed:
Yes
Warranty
cUL Listed:
Yes
Warranty - Labor:
1 Year
Warranty
Warranty - Parts:
1 Year
Warranty - Labor:
1 Year
Warranty - Parts:
1 Year

Features

330 CFM Internal Blower
330 CFM Internal Blower
  • Quickly removes smoke and cooking odors from the air, ensuring a cleaner and more comfortable kitchen environment.
  • Quickly removes smoke and cooking odors from the air, ensuring a cleaner and more comfortable kitchen environment.
Powerful Three Speed Ventilation Fan
Powerful Three Speed Ventilation Fan
  • Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.
  • Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.
Filter Indicator Light
Filter Indicator Light
  • Keep your range hood running smoothly with the indicator light that reminds you when it's time to change your carbon charcoal filter.
  • Keep your range hood running smoothly with the indicator light that reminds you when it's time to change your carbon charcoal filter.
Capacitive Touch Control Panel
Capacitive Touch Control Panel
  • Easily adjust fan speed and lighting with responsive capacitive touch controls.
  • Easily adjust fan speed and lighting with responsive capacitive touch controls.
Dishwasher Safe Grease Filter
Dishwasher Safe Grease Filter
  • Easily clean the aluminum grease filter by putting it in the dishwasher.
  • Easily clean the aluminum grease filter by putting it in the dishwasher.
Carbon Charcoal Filter Included
Carbon Charcoal Filter Included
  • Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
  • Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Bright LED Lighting
Bright LED Lighting
  • Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.
  • Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.
Power Button
Power Button
  • Easily turn on/off the fan and light with the press of a button.
  • Easily turn on/off the fan and light with the press of a button.
Convertible Design for Installation
Convertible Design for Installation
  • Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
  • Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
Stylish Built-in Look
Stylish Built-in Look
  • Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
  • Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Product Specifications Sheet
Complete Owner's Guide
