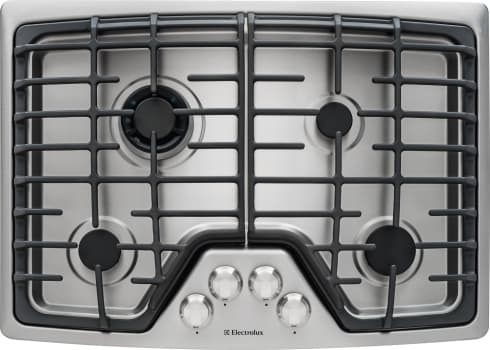

Electrolux EW30GC55PS - Stainless Steel Top View
Electrolux EW30GC55PS - Stainless Steel Top View
Electrolux EW30GC55PS - Control Panel
Electrolux EW30GC55PS - Stainless Steel 3/4 View
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Electrolux EW30GC55PS
Authorized
Dealer

Electrolux
EW30GC55PS
30 Inch Gas Cooktop with 4 Sealed Burners, Min-2-Max Dual-Flame Sealed Burner, Professional-Grade Control Knobs, Continuous Cast Iron Grates, ADA Compliant Design and Electric Pilotless Ignition: Stainless Steel

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 4
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Downdraft Venting: No
Actual Width: 30 Inch
Continuous Grates: Yes
Hot Surface Indicator Light: No
Induction: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Electrolux
Model: EW30GC55PS
Warranty Terms: 1 year
?
Appearance
Fuel Type: Gas
Number of Burners: 4
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Color: Stainless Steel
Surface Color: Stainless Steel
Downdraft Venting: No
Dimensions
Actual Width: 30 Inch
Actual Depth: 21 3/4 Inch
Actual Height: 4 1/4 Inch
Shabbos Compliance
Sabbath Mode: No
Burner
Burner 1 Output: 20000
Burner 2 Output: 14000
Burner 3 Output: 9500
Burner 4 Output: 5000
Gas Cooktop Features
Continuous Grates: Yes
Electric Cooktop Features
Hot Surface Indicator Light: No
Induction: No
Technical Details
ADA Compliant: Yes
LP Conversion: Yes
Amps: 15
Voltage: 120 Volts
GTIN
EAN: 0057112990897
Are you a Trade Pro? Join Now

Description

30" 4 Burner Gas Cooktop
This Gas Cooktop from Electrolux brings cooking in the kitchen to the professional level. With its deep-well design, it keeps spills contained for easy cleanup and lowers the cooking surface to countertop-level, which makes moving oversize pots and pans onto and off of the cooking surface much easier. Continuous grates allow easy movement of even the heaviest pots and pans from burner to burner - without lifting.

Specifications

Configuration and Overview
Deep Well-Formed Cooktop:
Yes
Professional Grade Burner Controls:
Yes
Continuous Grates:
Yes
Min-2-Max Dual Flame Sealed Burner:
20,000-1,100 BTU
Sealed Power Burner:
14,000 BTU
Sealed Precision Burner 1:
9,500 BTU
Sealed Precision Burner 2:
5,000-750 BTU
Linear Flow Burner Valves:
Yes
Electric Pilotless Ignition:
Yes
ADA Compliant:
Yes
LP Gas Conversion Kit:
Yes
Dimensions and Appearance
Overall Width:
30"
Overall Depth:
21 3/4"
Overall Height:
4 1/4"
Shipping Weight:
54 Lbs.
Gas/Power Supply Connection Location:
Right Bottom Rear
Electrical Requirement:
120V/15A
Electrical Cable:
Yes
Approved for Single Oven Combination Installation:
Yes

Features

Easy-to-Use Features
  • Sealed burners and dishwasher-safe grates for easy cleanup
  • Perfect over a wall oven.
  • Mounts above a single wall oven for additional installation options.
  • ADA Compliant
  • When properly installed, this model is ADA-qualified based on the United States Access Board's ADA/ABA Accessibility Guidelines and the Department of Justice's 2010 ADA Standards for Accessible Design.
Eligible for Platinum Star Limited 3 Year Warranty
  • Product must be registered within 60 days of purchase, delivery or closing. Only valid for products purchased on our after Jul 1, 2013.
