Elica Dolomite ER30SRB161PRL - 30 Inch Built-In Panel Ready Bottom-Mount Refrigerator - Left Hinge
Elica Dolomite ER30SRB161PRL - 30 Inch Built-In Panel Ready Bottom-Mount Refrigerator - Left Hinge

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Elica Dolomite ER30SRB161PRL
Authorized
Dealer

Elica Dolomite
ER30SRB161PRL
30 Inch Built-In Panel Ready Bottom-Mount Refrigerator with 16 cu. ft. Total Capacity, Filtered Water Dispenser, Internal Icemaker, Articulated Hinge, Field Reversible Hinge, 43 dBA, Soft-Close Drawers, LED Interior Light Side Walls & Ceiling, ECO Mode, Holiday Mode and Sabbath Mode: Left Hinge

Top Quality Store on Google
Only 7 left in stock
quick specs
Sabbath Mode: Yes
Refrigerator Capacity: 11.5 Cu. Ft.
Freezer Capacity: 4.5 Cu. Ft.
Total Capacity: 16 Cu. Ft.
Width: 29 11/16 Inch
Depth: 23 5/16 Inch
Height: 83 1/4 Inch
WiFi: No
Stainless Steel Interior: No
Fingerprint Resistant: No
No. of Shelves: 3
Water Dispenser: Internal
Ice Maker: Yes
Warranty Terms: 3 years
?
View more
Hinge: Left Hinge
Left Hinge
Left Hinge
ER30SRB161PRL
$4,999.00
In stock
Right Hinge
Right Hinge
ER30SRB161PRR
$4,999.00
$4,999.00
MSRP: $5,499.00
You save $500.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
6 Foot Stainless Steel Refrigerator Waterline Kit
+ $24.99
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

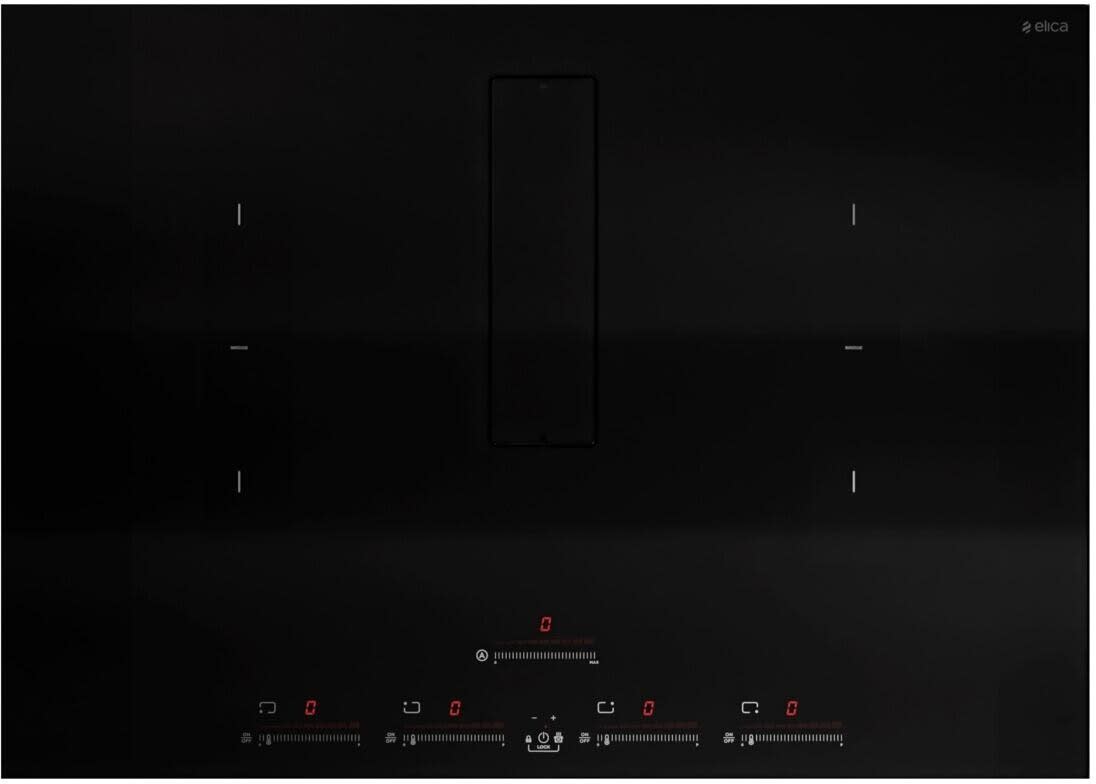

36 Inch Induction Cooktop
Elica
36 Inch Induction Cooktop
$3,999.00

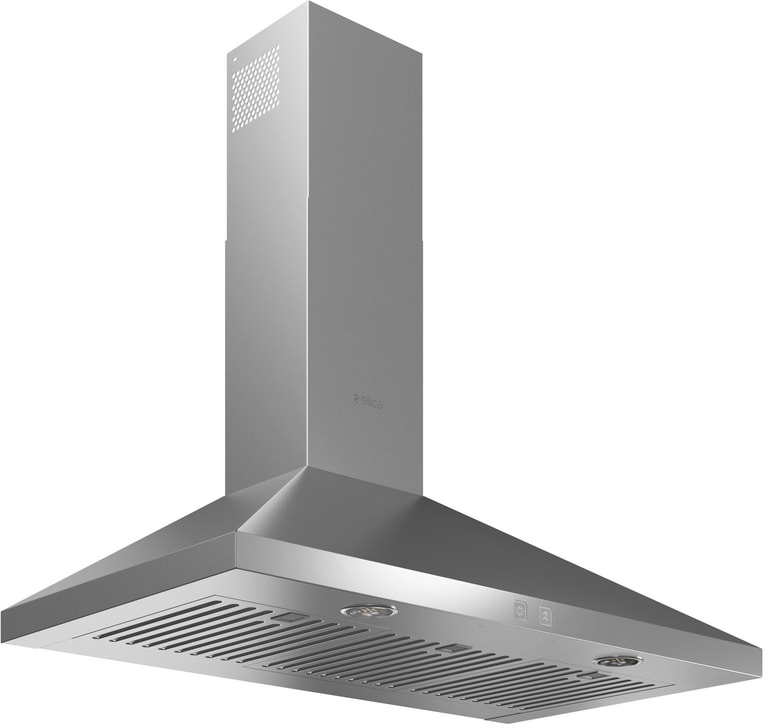

BOLSENA Wall Mount Range Hood
Elica
BOLSENA Wall Mount Range Hood
$779.00
Product Information
Brand: Elica
Series: Dolomite
Model: ER30SRB161PRL
Warranty Terms: 3 years
?
Appearance
Type: Built In
Style: Bottom Freezer
Size: Full Size
Counter Depth: Yes
Undercounter: No
Door Style: One Door
Double Freezer Drawers: Yes
Glass Door: No
Hinge Side: Left
Field Reversible Doors: Yes
Accepts Custom Panels: Yes
Wine Racks (Category): No
Color: Panel Ready
Door Color: Panel Ready
Interior Color: White
Freezer Drawers: Double
Column: No
Capacity
Refrigerator Capacity: 11.5 Cu. Ft.
Freezer Capacity: 4.5 Cu. Ft.
Total Capacity: 16 Cu. Ft.
Dimensions
Width: 29 11/16 Inch
Depth: 23 5/16 Inch
Height: 83 1/4 Inch
Cutout Width: 30 Inch
Cutout Depth: 25 Inch
Cutout Height: 84 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: None
Smart
WiFi: No
Installation
Flush Installation: Yes
Features
Stainless Steel Interior: No
Fingerprint Resistant: No
Smart Home / App Compatible: No
Remote Access: No
Usage: Residential
LED Lighting: Yes
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 3
No. of Adjustable Shelves: 3
Slide-out Shelves: No
Spill Safe Shelves: Yes
Cantilever Shelves: Yes
No. of Door Bins: 3
Adjustable Door Bins: Yes
Humidity Controlled Crispers: 1
Temperature Zones: Dual
Keurig Brewing System: No
Touch Screen: Yes
Soft Close: Yes
Freezer Features
Defrost: Automatic
No. of Drawers: 2
Technical Details
Approved for Commercial Use: No
Approved for Outdoor Use: No
Voltage: 115 Volts
Water
Water Dispenser: Internal
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: Yes
Settings
Digital Temperature Control: Yes
Ice
Ice Dispenser: No
Ice Maker: Yes
Secondary Ice Maker: No
Daily Ice Production: 3.9 Lbs.
Ice Capacity (lbs.): 5 Lbs.
Are you a Trade Pro? Join Now

Description

30 Inch Built-In Panel Ready Bottom-Mount Refrigerator with 16 cu. ft. Total Capacity
Elevate your kitchen with the Elica 30" panel-ready built-in bottom-mount refrigerator, thoughtfully designed to blend seamlessly with custom cabinetry for a refined, integrated look. With generous 16 cu ft total capacity, ultra-quiet operation, energy-efficient performance, and smart interior features like soft-close drawers and LED lighting, it offers the perfect balance of style and everyday functionality. Sabbath and ECO modes add thoughtful convenience, while the reversible door and 3D True Flush installation make it versatile for a range of layouts.

Specifications

General
Product Type:
Built-In Bottom-Mount Refrigerator
Brand:
Elica
Model Numbers:
ER30SRB161PRL (Left Door)
Installation Type:
Built-In, Panel Ready
Finish:
Custom Panel Ready
Capacity
Total Capacity:
16.0 cu ft
Fresh Food Capacity:
11.5 cu ft
Freezer Capacity:
4.5 cu ft
Features
Sabbath & Holiday Mode:
Yes
ECO Mode:
Yes
Soft-Close Drawers:
Yes
Ultra Quiet Operation:
Yes
True Flush Install:
Yes
LED Interior Lighting:
Yes
Reversible Door:
Yes
Cooling & Performance
Cooling Type:
R600a Refrigerant
Defrost Type:
No Frost
Number of Cooling Zones:
2
Shelf Material:
Spill-Proof Glass
Interior Storage
Adjustable Shelves:
Yes
Humidity Control Drawer:
Yes
Door Storage Bins:
3 Height Adjustable
Dimensions
Width:
29 11/16"
Height:
83 1/4"
Depth:
23 5/16"
Depth with Door Open:
61"
Electrical
Voltage:
115V / 220-240V
Amperage:
2.6A
Watts:
452 W
Warranty
Warranty:
3-Year Parts & In-Home Labor (third year with online registration)

Features

Panel-Ready Integrated Design
  • Designed to perfectly match your custom cabinetry, this 30" panel-ready refrigerator delivers a seamless built-in look without sacrificing performance.
Generous Capacity
  • Offers a 16 cu ft total capacity with 11.5 cu ft fresh food and 4.5 cu ft freezer space to accommodate everyday needs and meal prep.
Ultra-Quiet Operation
  • Engineered for peaceful performance, this unit operates quietly so your kitchen stays comfortable and calm.
Sabbath & Holiday Mode
  • Includes a Sabbath and holiday mode for compliance with religious observance requirements.
ECO Mode for Efficiency
  • Energy-saving ECO mode helps reduce power consumption while maintaining consistent cooling.
Soft-Close Drawers
  • Soft-close crisper and pantry drawers prevent slamming and keep contents organized with ease.
True Flush Install
  • 3D door adjustment and true flush design ensure a sleek, built-in fit that aligns perfectly with surrounding cabinetry.
Bright, Efficient LED Lighting
  • Cool-Day LED interior lighting illuminates fresh food and freezer compartments for clear visibility.
Flexible Door Configuration
  • Available with left-hinge (ER30SRB161PRL) or right-hinge (ER30SRB161PRR) panel-ready doors to suit your kitchen layout.
