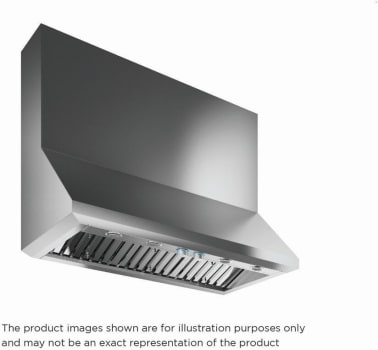

Elica Professional Capri Series ECP148SS - Pro Series Capri Wall Mount Range Hood
Elica Professional Capri Series ECP148SS - Pro Series Capri Wall Mount Range Hood
Elica Professional Capri Series ECP148SS - Angle View
Elica Professional Capri Series ECP148SS - Angle View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Elica Professional Capri Series ECP148SS
Authorized
Dealer

Elica Professional Capri Series
ECP148SS
Outdoor Wall Mount Range Hood with 4-Speed/1200 CFM (Blower Sold Separately), Knob Controls, LED Lighting, and Dishwasher-Safe Baffle Filters: 48 Inch

Top Quality Store on Google
quick specs
Style: Canopy Pro Style
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Width: 48 Inch
Depth: 32 Inch
Height: 18 Inch
WiFi: No
CFM: 1,200 CFM
Permanent Air Flow Reduction: No
Noise Level: 8.5 Sones
Duct Size: 10 Inch
Number of Fan Speeds: 4
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Warranty Terms: 3 years
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Elica
Series: Professional Capri Series
Model: ECP148SS
Warranty Terms: 3 years
?
Appearance
Style: Canopy Pro Style
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Dimensions
Width: 48 Inch
Depth: 32 Inch
Height: 18 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
CFM: 1,200 CFM
Permanent Air Flow Reduction: No
Noise Level: 8.5 Sones
Duct Size: 10 Inch
Features
Number of Fan Speeds: 4
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Technical Details
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: Yes
GTIN
UPC: 190603002300
Are you a Trade Pro? Join Now

Description

Outdoor Wall Mount Range Hood with 4-Speed/1200 CFM (Blower Sold Separately)
Tame the outdoors, without sacrificing style and luxury. Capri features a heavy-gauge, corrosion-resistant 302-grade stainless steel body, which will withstand the harshest environment. The extra-deep 32" hood body is complimented with dual sets of angled stainless steel professional baffle filters, that provide exceptional air capture and a 1200 CFM blower has the power to do the job. Capri is available in 36" and 48" widths, an optional 3" spacer will extend the depth to 35" for added capture efficiency, plus optional 12" and 6" duct covers are available to reach any ceiling height.

Specifications

Additional Specs
Dimensions:
48" W x 32" D x 18" H
Blower Type (sold separately):
Internal or external 1200 CFM (4-speed)
Noise (sones):
8.5 Sones
Finish:
Corrosion Resistant Grade Stainless Steel
Controls:
Fully retractable rotating knobs with blue backlighting
Illumination:
4 LED, 7.5 Watts LED light
Filter Type:
(6) Dishwasher-Safe, Professional Stainless Steel
Duct Transition:
10" Round with BackDraft Damper (top)
Installation Type:
Ducted Installation Only
Electrical:
120V - 60 Hz
Kits
External Blower Kit 1200 CFM 8" or 10" duct size compatible:
KIT0153054
In-Line Blower Kit 1200 CFM 8" or 10" duct size compatible:
KIT0154387
1200 CFM Internal Blower:
KIT0156655
Duct Cover Kit:
KIT0156637 | KIT0156641 | KIT0156645 | KIT0156649
Spacer Kit:
KIT0153305
Warranty
Warranty:
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com

Features

4-Speed/1200 CFM (Blower Sold Separately)
  • Lets you choose the perfect air flow power for any cooking situation.
  • Quickly removes smoke and odors.
Blue Backlighting Rotating Knobs
  • Fully retractable rotating knobs with blue backlight operate the 4-speed blower and LED lighting.
LED Lighting
  • LED Consumer Replaceable Bulb - High-quality LED lighting usually requires a skilled technician to replace lamps. Avoid this expense with Elica's new LED lamps that enable homeowners to replace them in seconds.
Dishwasher-Safe Baffle Filters
  • Stainless Steel Baffle Filters with Grease Collectors - Designed for high airflow cooking, the "S shape design traps high volumes of grease.
Seamless Craftsmanship
  • Heavy-gauge stainless steel "Seamless construction that delivers refined elegance.
Heat Guard
  • Senses extreme temperatures (>158 degrees) and automatically adjusts the blower speed to HIGH.
Professional Performance
  • Special features and high performances for models with aspiration capacity between 600 and 1200 CFMs.
