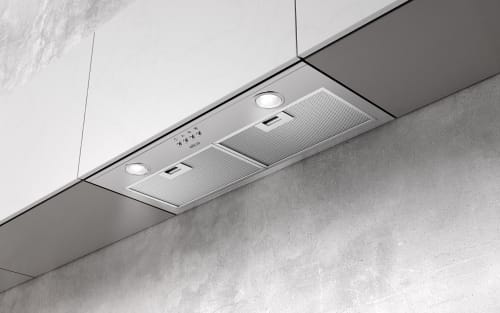

Elica Asti Series EAS328S1 - 28 Inch Under Cabinet Range Hood in Installation View

Image Disclaimer

Authorized

Dealer

Elica Asti Series

EAS328S1

28 Inch Under Cabinet Range Hood with 3-Speed/300 CFM Blower, Mechanical Push Button Control, LED Lighting, and Dishwasher-Safe Mesh Filter

Name: Elica Asti Series EAS328S1
Brand: Elica
SKU: EAS328S1
Price: 409 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Style: Standard Hood

Venting Type: Convertible

Blower Included: Yes

Blower Type: Internal

Width: 28 1/4 Inch

Depth: 10 3/4 Inch

Height: 9 1/2 Inch

WiFi: No

CFM: 300 CFM

Noise Level: 1.7 Sones

Duct Size: 6 Inch

Number of Fan Speeds: 3

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: No

^$409^.00

MSRP: ~~$449.00~~

You save $40.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Elica

30 Inch Induction Cooktop

$3,699.00

Product Information

Brand: Elica

Series: Asti Series

Model: EAS328S1

Appearance

Style: Standard Hood

Type: Cabinet Insert

Color: Stainless Steel

Fingerprint Resistant: No

Glass Canopy: No

Mounting Type: Under Cabinet

Venting Type: Convertible

Blower Included: Yes

Blower Type: Internal

Dimensions

Width: 28 1/4 Inch

Depth: 10 3/4 Inch

Height: 9 1/2 Inch

Smart

WiFi: No

Smart Accessory Required: No

Capacity

CFM: 300 CFM

Noise Level: 1.7 Sones

Duct Size: 6 Inch

Features

Number of Fan Speeds: 3

Filter Type: Mesh

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: No

Tunable Lighting: No

Technical Details

ADA Compliant: No

Energy Star Rated: No

Voltage: 120 Volts

Approved for Outdoor Use: No

Description
Specifications
Features
Rebates
Reviews

Description

28 Inch Under Cabinet Range Hood with 3-Speed/300 CFM Blower
Asti 300 is specifically created to be mounted discreetly inside cabinetry, with a perfect fit for 12" deep cabinetry and a 28" width, it is an excellent choice for kitchens with limited space or where the range hood needs to remain out of view. With a 300 CFM blower, Asti is capable of meeting most cooking needs. Its convenient mechanical push button controls operate the 3-speed blower and LED lighting, while its dishwasher-safe anodized aluminum mesh filters, ensure effortless maintenance. Asti is designed for both standard ducted and recirculating installations, now with a snap system that makes it safer and easier to install.

Specifications

General Properties

Finish:

Stainless Steel

Blower Type (Internal):

300 CFM (3-speed)

Noise (Min-max sones):

1.7-4.0 Sones

Illumination:

2 LED, 6.5W, 4000K, 235 Lumen

Controls:

Mechanical push buttons

Grease Filters:

Dishwasher-Safe, Anodized aluminum mesh filter

Installation Type:

Ducted or recirculating with a kit (sold separately)

Duct Transition:

6" round with back draft damper (top and rear)

Kits

Recirculating Kit:

KIT02770 (contains 2 carbon filters & 6” round deflector grate)

30" Hood Liner:

KIT02773 (29"W x 17 1/2"-20 1/2"D x 4"H)

36" Hood Liner:

KIT02774 (35"W x 17 1/2"-20 1/2"D x 4"H)

Electrical Specifications

Volts:

120V

Frequency:

60Hz

Watts:

260W

Dimensions & Weight

Width:

28 1/4"

Depth:

10 3/4"

Height:

9 1/2"

Warranty

Parts and Labor:

Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com

Features

3-Speed/300 CFM Blower

Offers adjustable ventilation with a powerful 300 CFM blower and three-speed settings.

Mechanical Push Button Control

Simple and reliable control with easy-to-use push buttons.

LED Lighting

Illuminate your culinary journey with LED brilliance. An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.

Dishwasher-Safe Mesh Filter

Removable filter that’s easy to clean in the dishwasher.

3x Layer Mesh

Triple-layered mesh filter provides enhanced grease and particle capture for cleaner air.

Super Easy Installation

Quick and hassle-free setup process.

Rear Outlet Installation

Designed for flexible rear exhaust venting.
