Description

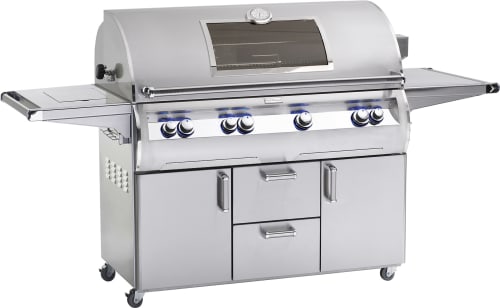

92 Inch Freestanding Portable Gas Grill with 1056 sq. in. Cooking Surface
Fire Magic Echelon Diamond is a superior grill combining the ultimate performance, beauty, and innovation. With sleek lines, a unique contoured face and state-of-the-art features such as hot surface ignition, blue backlit knobs, a dedicated wood chip smoker drawer, and an optional Magic View window, Echelon Diamond define luxury in grilling.
Specifications
Grill Specifications
Material:
All 304 Stainless Steel
Primary Cooking Surface:
1056 sq. inches (48" x 22")
Primary Burner BTU's:
112,000
Warming Rack Surface:
384 sq. inches (48" x 8")
Side Burner:
Flush Mounted Single Side Burner
Electrical Specifications
Dimensions
Width (shelves up):
92 1/4"
Width (shelves 1 up / 1 down):
69 3/4"
Width (cart base):
53 1/8"
Depth (max. outer):
30 1/2"
Height (floor to top of shelf):
37"
Features
Analog Thermometer
- Analog thermometer with polished stainless steel bezel in hood measures up to 1000 °F.
Power Burner
- The Echelon Power Burner is the largest, most powerful side cooker available and provides the high heat that's perfect for wok cooking or frying a turkey. Offering a range of 3,000 to 60,000 BTUs.
- Removable stainless steel cover included.
Flush Mounted Single Side Burner
- Features of this single-side burner include a 15,000 BTU burner and a precise flame control valve.
- Includes stainless steel grid.
Diamond Sear Cooking Grids
- All 304 stainless steel trapezoid cooking grids provide a more optimal cooking surface for even heat and great searing.
Zone Flavor Grids
- 16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.
Heat Zone Separators
- Heat zone separators between each burner, flavor grid and cooking grid allow cooking of an assortment of foods at different temperatures simultaneously and provide better indirect cooking.
Hot Surface Ignition
- Hot surface electronic ignition provides reliable lighting for every meal.
- Requires 120V AC power supply.
Charcoal/Smoker Basket
- Included with all Echelon Diamond grills at no additional charge. Great tool for charcoal grilling and smoking.
Rounded Oven Hood
- Double-wall, seamless oven hood with featherlight easy lift rounded for best convection cooking.
Contoured Face with Back-Lit Knobs
- Smooth, seamless lines with polished highlights that feature fully illuminated, comfortable touch safety control knobs (flame turns red when on).
Halogen Interior Lights
- Angled interior halogen lights make evening grilling a breeze.
Quantum Backburner
- Recessed Quantum backburner made of stainless steel foam uses fewer BTUs to generate efficient high heat for rotisserie cooking.
- Polished stainless steel cover included for protection.
Diamond Sear Cooking Grids
- All 304 stainless steel trapezoid cooking grids provide a more optimal cooking surface for even heat and great searing.
Extended Side Shelves
- Capped with matching polished handles, the expansive side shelves offer the most preparation space for any portable grill. When not in use, they fold down neatly to save space.
Rotisserie Kit
- Recessed High-Efficiency Stainless Steel Foam Rotisserie Backburner with Cover
- Roller Ball Bearing Rotisserie Supports
- Super High Torque Motor and Spit Rod with Meat Prongs and Counter Balance
Additional Features
- Heavy-Gauge Stainless Steel Adjustable Warming Rack
- Larger Drip Tray with Roller Ball Bearings and Disposable Foil Tray Liners
- 120 Volt Plug-in Electrical supply with 12 Volt Transformer
- Push-to-Light Hot Surface Electric Ignition System with Flash Tubes
- Pre-assembled 1/2" x 36" Stainless Steel Gas Flex Connector
- Stainless Steel Valve Manifolds
- Convertible Regulator with Orifices (Nat or LP)
- Angled Halogen 12 Volt Internal Oven Lamps
- Contoured Control Panel with bright polished trim
- Large Stainless Steel Cabinet
- Matching Designer Handles on Insulated Doors
- Custom Personalized Name Plate
