Description

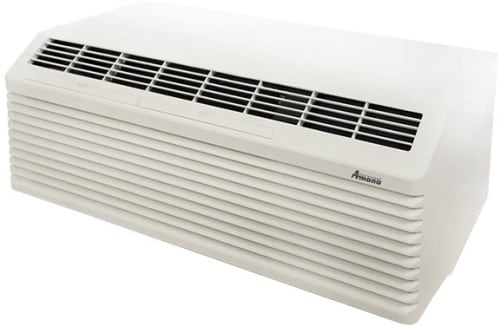

8,800 BTU Packaged Terminal Air Conditioner with 3.7 kW Electric Heater
This is a wall-sleeve air conditioner and electric heater built for coastal hotel rooms, motels, or multi-family units where salt-air corrosion is a real concern and central ductwork isn't available. It's built for property managers and owners who need self-contained, per-room climate control with added corrosion protection.
This DRY094J35CXXX chassis is an Amana PTAC (Packaged Terminal Air Conditioner) with a single-stage 3.7 kW electric heat strip, built on the R-32 refrigerant platform with Enhanced Dehumidification. The feature code C designation adds seacoast corrosion protection, intended for coastal hospitality and residential properties exposed to salt air. All units in this family meet or exceed ASHRAE 90.1.
Specifications
Overview
Cooling Capacity:
8,800 BTU/h
Heating Capacity (265V):
12,600 BTU/h
Electric Heat Strip Size:
3.7 kW
Total Heater Watts:
3,770 W
Total Amps (with Heat):
14.2 A
CFM Wet High/Low:
290/264 CFM
CFM Dry High/Low:
343/343 CFM
Fresh Air Vent CFM:
65 CFM
Dehumidification Rate:
2.6 pints/hr
Dimension and Weight
Wall Sleeve Dimensions (in):
42 x 16-1/16
Features
3.7 kW Electric Heater
- Provides supplemental heating with a 3.7 kW electric heating element.
Seacoast Corrosion Protection
- Helps protect the unit from corrosion in coastal environments.
R32 Refrigerant
- Uses R32 refrigerant for efficient cooling performance with a lower global warming potential than many traditional refrigerants.
2.6 Pints/Hr Dehumidification Rate
- Removes up to 2.6 pints of moisture from the air per hour.
NEMA 7-20P
- Features a NEMA 7-20P plug for compatibility with the appropriate electrical outlet.
