Description

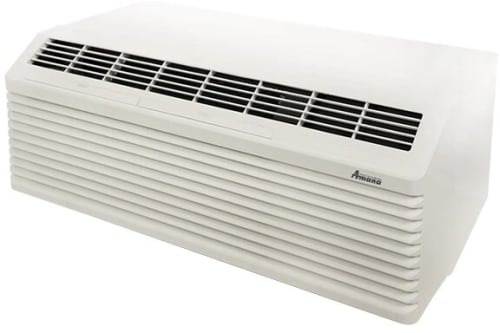

8,800 BTU Packaged Terminal Air Conditioner with 3.7 kW Electric Heater
This is a wall-sleeve air conditioner and electric heater built for hotel rooms, apartments, or additions where central ductwork isn't an option. It's a 265V commercial unit, intended for property managers and electricians who need a self-contained, per-room climate system on a dedicated 265V circuit.
This unit is built for hospitality and multi-family properties needing self-contained, per-room heating and cooling without central ductwork. It runs on a 265V commercial circuit — strictly a hardwire or dedicated sub-base installation, not a residential drop-in.
Specifications
Overview
Cooling Capacity:
8,800 BTU/h
Heating Capacity (265V, 3.7 kW heat):
12,600 BTU/h
Electric Heat Strip Size:
3.7 kW
Voltage Operating Range:
239-292 V
Total Heat+Cool Amps:
14.2 A
Total Heat+Cool Watts:
3,770 W
MCA (Chassis, No Heater):
4.4 A
CFM Wet High/Low:
290/264 CFM
CFM Dry High/Low:
343/343 CFM
Fresh Air Vent CFM:
65 CFM
Dehumidification Rate:
2.6 pints/hr
Dimension and Weight
Wall Sleeve Dimensions (in):
42 x 16-1/16
Features
3.7 kW Electric Heater
- Provides supplemental heating with a 3.7 kW electric heating element.
Seacoast Corrosion Protection
- Helps protect the unit from corrosion in coastal environments.
R32 Refrigerant
- Uses R32 refrigerant for efficient cooling performance with a lower global warming potential than many traditional refrigerants.
2.6 Pints/Hr Dehumidification Rate
- Removes up to 2.6 pints of moisture from the air per hour.
NEMA 7-20P
- Features a NEMA 7-20P plug for compatibility with the appropriate electrical outlet.
