Description

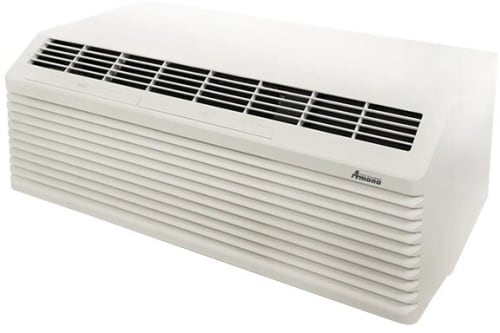

9,000 BTU Packaged Terminal Air Conditioner with 2.5 kW Electric Heater
This is a wall-sleeve air conditioner and heater built for coastal properties — hotels, condos, and additions near saltwater — where standard PTAC finishes corrode faster than inland units. It's built for property managers and homeowners who need self-contained, per-room climate control with added protection against salt-air corrosion.
The DRY093J25CXXX is an R-32 PTAC with electric heat, built on Amana's enhanced-dehumidification J-chassis and finished with seacoast corrosion protection (Feature Code C) for coastal hospitality and residential installs. This model meets or exceeds ASHRAE 90.1 efficiency standards.
Specifications
Overview
Cooling Capacity:
9,000/9,000 BTU/h
Heating Capacity (230V):
8,500 BTU/h
Heating Capacity (208V):
6,800 BTU/h
Electric Heat Strip Size:
2.5/2.1 kW
Voltage Operating Range:
197 - 253 V
Compressor Watts:
760/760 W
Total Watts (with heater):
2,570/2,115 W
Total Amps (with heater):
11.2/10.1 A
CFM Wet High/Low:
290/264 CFM
CFM Dry High/Low:
321/295 CFM
Dehumidification Rate:
2.6 pints/hr
Dimension and Weight
Wall Sleeve Dimensions (in):
42 x 16-1/16
Features
2.5 kW Electric Heater
- Provides supplemental heating with a 2.5 kW electric heating element.
Seacoast Corrosion Protection
- Helps protect the unit from corrosion in coastal environments.
R32 Refrigerant
- Uses R32 refrigerant for efficient cooling performance with a lower global warming potential than many traditional refrigerants.
2.6 Pints/Hr Dehumidification Rate
- Removes up to 2.6 pints of moisture from the air per hour.
NEMA 6-15P
- Features a NEMA 6-15P plug for compatibility with the appropriate electrical outlet.
