Description
36 Inch Freestanding Dual Fuel Smart Range with 6 Sealed Burners
Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.
Specifications
Overview
Oven Capacity (Cubic Feet):
4.8
Cooking Modes:
Bake - Broil - Convection Bake - Convection Roast - Convection Broil - Four Part Pure Convection - Pure Convection Sear - Steam Assist
Bake Element:
3,000W - 8 Pass
Broil Element:
4,400W - 10 Pass
Convection Element:
1,300W (Each - 2,600W Total)
Total Number Of Cooktop Burners:
6
Right Front (Btu):
22,000 BTU
Right Rear (Btu):
9,000 BTU
Center Front (Btu):
16,000 BTU
Center Rear (Btu):
16,000 BTU
Left Front (Btu):
18,000 BTU
Left Rear (Btu):
16,000 BTU
Perma-Flame™ (Auto Re-Ignition):
Yes
Number Of Knobs:
6 + 1 Lamp Knobs
Control Method:
7 � Pop-Up Lcd
Bluetooth (Hood Connection):
Yes
Illulmina™ Burner Knobs:
Yes / White
Highlighting Color:
White
Ambientlighting:
Yes (Dimming)
Time Of Day (12 Hr/24 Hr):
Yes
Manual Lighting On/Off:
Yes
Cleaning Type:
Self Clean & Greenclean
Type Of Grate:
Continuous Cast Iron
Cavity:
Black Enamel Coating
Convection Type:
Four Part Dual Pure Convection With Filter
Lighting:
Brightvue™ - Led + Halogen
Temperature Probe:
Yes (Optional Mode)
Instantheat (No Preheat):
Yes with Convection Roast/Convection Bake (Optional Mode)
Dimensions and Weight
Electrical Requirements
Energy Source:
Gas And Electric
Warranty
Limited, Parts and Labor:
2 Years
Features
Steam-Assist and Convection Oven
- The power of steam and convection cooking in one. For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.
Wi-Fi-Enabled 7" LCD Control Panel
- Automatically tilting, 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
Dual Four-Part Pure Convection
- Heat, air, baffle, and filter to precisely distribute heat for superior cooking results.
Superior Steam Generation
- Utilizing an external steam generator, quickly and effectively deliver the right amount of steam at the right time for that perfect culinary result.
Powerful Broiling
- Even browning and powerful searing with a 10 Pass, 4400W broiler.
SimmerSear Burners
- Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.

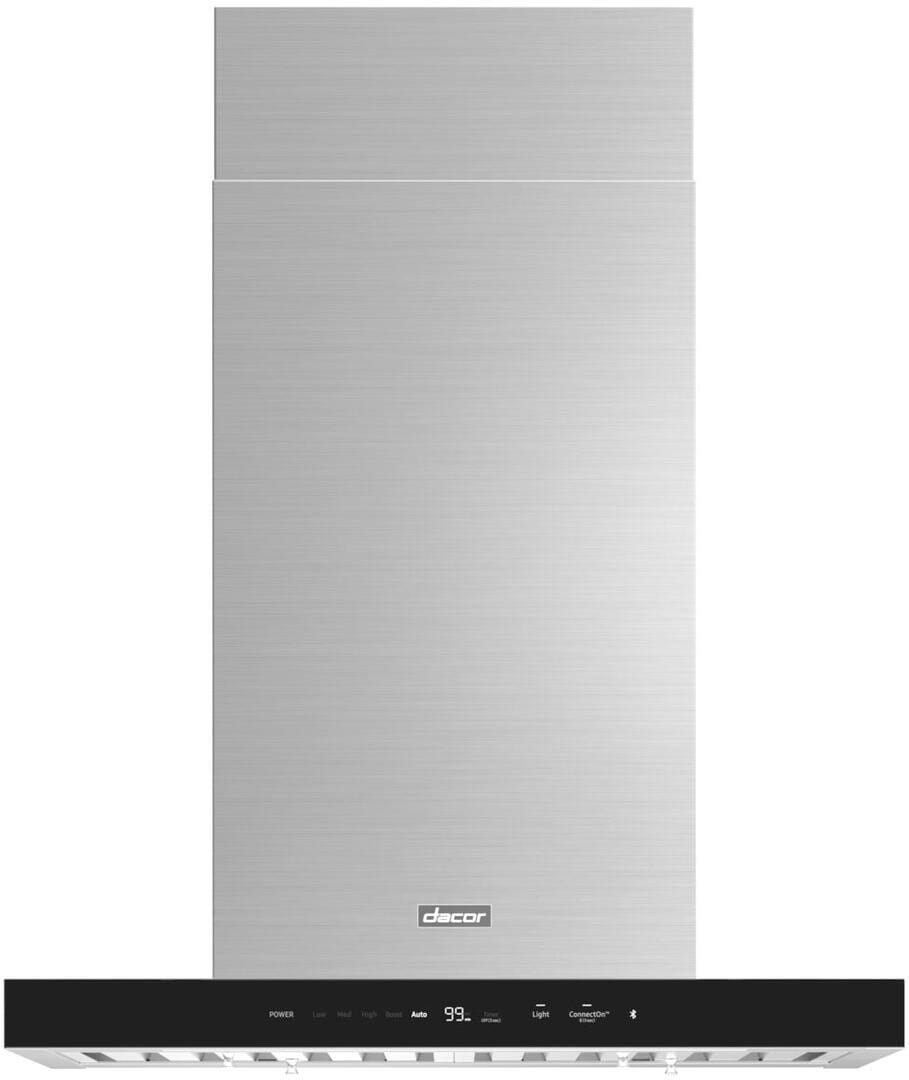

Auto Connected Hood
- Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and increases the speed as necessary, with the use of a temperature sensor.
Perma-Flame
- Automatically reignites burners if they are accidentally extinguished.
Chef Mode
- Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures and timing.
SmartThings Integration
- Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
GreenClean
- A faster, safer, better way to clean. Cleans with the versatile power of built-in steam capabilities, rather than extreme heat or harsh chemicals.
Other Features
