Dacor Transitional DOB30T977SS - 30 Inch Single Steam Smart Electric Wall Oven with 4.8 cu. ft. Oven Capacity in Front View
Dacor Transitional DOB30T977SS - 30 Inch Single Steam Smart Electric Wall Oven with 4.8 cu. ft. Oven Capacity in Front View
Dacor Transitional DOB30T977SS - 30 Inch Single Steam Smart Electric Wall Oven with 4.8 cu. ft. Oven Capacity in Angled View
Dacor Transitional DOB30T977SS - 30 Inch Single Steam Smart Electric Wall Oven with 4.8 cu. ft. Oven Capacity in Control Panel View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Dacor Transitional DOB30T977SS
Authorized
Dealer

Dacor Transitional
DOB30T977SS
30 Inch Single Steam Smart Electric Wall Oven with 4.8 cu. ft. Oven Capacity, Chef Mode, Convection Oven, Steam-Assist Oven, Self-Clean, 7-inch LCD Control Panel and Sabbath Mode

Top Quality Store on Google
Buy More Save More
quick specs
Microwave: No
Speed Oven: No
Steam Oven: Yes
Fingerprint Resistant: No
Drawer: None
Cutout Width: 28 1/2 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 27 1/4 Inch
Capacity: 4.8 Cu. Ft.
Fast Preheat: No
Convection Type: Dual
Self-Cleaning: Yes
Glide Rack(s): Yes
Temperature Probe: Yes
Undercounter Installable: Yes
View more
$4,999.00
OR
FREE Delivery Available
You Will Also Need:
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Current Offers
Dacor: Buy More Save More up to $2,000 Instantly Expires 12/31/2026
Have questions? Chat with us!

You Might Also Like

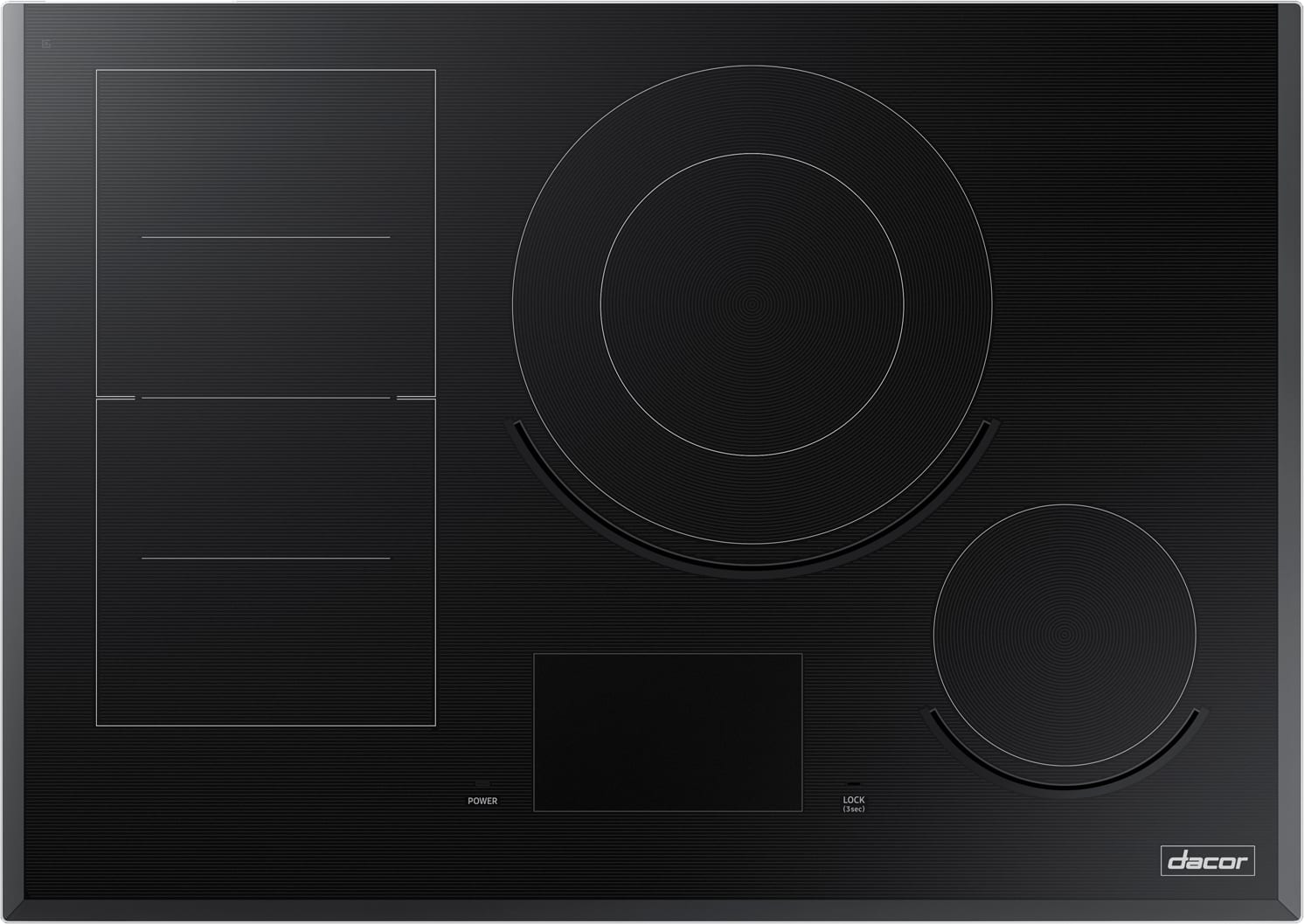

30 Inch Smart Induction Cooktop
Dacor
30 Inch Smart Induction Cooktop
$3,549.00
Product Information
Brand: Dacor
Series: Transitional
Model: DOB30T977SS
Appearance
Fuel Type: Electric
Style: Single
Microwave: No
Speed Oven: No
Steam Oven: Yes
Door Style: Drop Down
French Door Oven: No
Color: Stainless Steel
Fingerprint Resistant: No
Stainless Steel Handle: Yes
Control Type: Digital and Knobs
Viewing Window: Yes
Drawer: None
Clock: Yes
Dimensions
Cutout Width: 28 1/2 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 27 1/4 Inch
Exterior Width: 29 3/4 Inch
Exterior Depth: 24 1/2 Inch
Exterior Height: 28 7/8 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Smart
WiFi: Yes
Bluetooth: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
App Integration: SmartThings App
Smart Accessory Required: No
Capacity
Capacity: 4.8 Cu. Ft.
Oven Racks: 3
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Fast Preheat: No
Convection: Yes
Convection Type: Dual
Self-Cleaning: Yes
Self-Cleaning Type: High Heat
Glide Rack(s): Yes
Temperature Probe: Yes
Broiler: Yes
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: Yes
Air Fry: No
Sous Vide: No
Steam Assist: Yes
Technical Details
ADA Compliant: No
Undercounter Installable: Yes
Approved for Outdoor Use: No
LP Conversion: No
Amps: 30
Voltage: 240/208 Volts
GTIN
UPC: 887276760759
Are you a Trade Pro? Join Now

Description

30 Inch Single Steam Smart Electric Wall Oven with 4.8 cu. ft. Oven Capacity
The 30" Single Wall Oven includes the Dual Four-Part Pure Convection for reduced cooking time and superior consistency with zero flavor transfer. A Wi-Fi-enabled 7" LCD touch control panel and LED illuminated knobs provide convenience and the ability to use SmartThings integration for communication between appliances as well as remote monitoring and operation.

Specifications

Controls
Control Type:
7" Motorized LCD Touchscreen & Knobs
Chef Mode Guided Cooking:
Yes
Number of Knobs:
2
Illumina™ Knobs:
White
Wi-Fi + SmartThings:
Yes
Clock:
Yes
Delay Start:
Yes
Kitchen Timer:
Yes
Child Lock:
Yes
Sabbath Mode:
Yes
Steam Oven
Oven Capacity (Cu. Ft.):
4.8
Convection:
Dual Four-Part Pure
Steam:
Steam-Assist
Bake Element:
3,000W - 8 Pass
Broil Element:
4,400W - 10 Pass
Convection Element:
2 x 1,300W
InstantHeat™ (No Preheat):
Yes
Temperature Probe:
Yes
Lighting:
BrightVue™ - LED & Halogen
Self-Clean:
Self-Clean, GreenClean™
SoftShut™:
Yes
Technical Details
Electrical Requirement:
240/208V, 60 Hz, 30A
Weights & Dimensions
Net Weight (Lbs.):
84
Shipping Weight (Lbs.):
96
Product Dimensions (W x H x D in Inches):
29 3/4" x 28 7/8" x 24 1/2"
Standard Cutout Required (W x H x D in Inches):
28 1/2" x 27 1/4" x 23 1/2"
Flush Cutout Required (W x H x D in Inches):
30 1/4" x 29" x 24 7/8"
Warranty
Full Coverage:
2 Years

Features

WI-FI-Enabled 7" LCD Control Panel
  • 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
Steam Assist Oven
  • For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.
Chef Mode
  • Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures, and timing.
Dual Four-Part Pure Convection
  • Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection. Reduce cooking time by distributing heat evenly across the entire oven.
Powerful Broiling
  • Even browning and powerful searing with a 10 Pass, 4400W broiler.
True Flush Integration
  • Complete the look of the modern and clean kitchen with a true flush installation that will not hinder the rest of the kitchen design.
SmartThings Integration
  • Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever-growing ecosystem of smart connectivity.
  • Preheat, and check the oven temperature, the cooking status, and remaining time, all from the comfort of your smartphone.

Additional Features

  • BrightVue™ LED & Halogen Lighting
  • 7-inch LCD Control Panel with SmartThings Wi-Fi connectivity
  • Digital Temperature Probe
  • Self-Clean Oven
  • SoftShut™ Hinges
