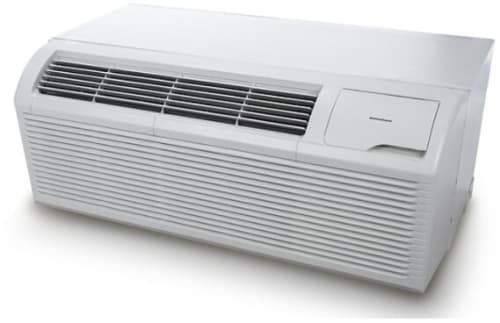

Amana Distinctions DHP153J50BA - 14,700 BTU Packaged Terminal Air Conditioner
Amana Distinctions DHP153J50BA - 14,700 BTU Packaged Terminal Air Conditioner
Amana Distinctions DHP153J50BA - 14,700 BTU Packaged Terminal Air Conditioner
Amana Distinctions DHP153J50BA - 14,700 BTU Packaged Terminal Air Conditioner
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana Distinctions DHP153J50BA
Authorized
Dealer

Amana Distinctions
DHP153J50BA
14,700 BTU Packaged Terminal Air Conditioner with 8,000 BTU Heat Pump, Dual Fan Motors, 3 Speed Fan, Constant Fan, Easy Pull Out Filter and LCDI Power Cord Included

quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 14,700 BTU
Heating Capacity (BTU): 8,000 BTU
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Wall Sleeve Included: No
Control Type: Digital
Remote Control Included: No
Plug Type: 6-30P
View more
$1,030.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Amana
Series: Distinctions
Model: DHP153J50BA
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Heating Capacity (BTU): 8,000 BTU
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Features
Type: Wall
Wall Sleeve Included: No
Maximum Cooling Amps: 6.5 Amps
Maximum Cooling Watts: 1,390 Watts
Maximum Heating Amps: 6 Amps
Maximum Heating Watts: 1,170 Watts
Heat: Heat Pump
Energy Efficiency Rating: 10.6
Control Type: Digital
Remote Control Included: No
PTAC: Yes
Indoor CFM, High: 416 CFM
Indoor CFM, Low: 330 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: No
Plug Type: 6-30P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

14,700 BTU Packaged Terminal Air Conditioner
The DHP153J50BA is for residential and commercial use with 208 / 230 volt electricity. This unit offers 14,500 / 14,700 BTUs of cooling power, 13,200 / 13,500 BTU heat pump capacity and a 5.0 kW electric heater, providing approximately 12,200 / 15,000 BTUs of electric backup heat. It also includes a 30 amp power cord. The Distinctions by Amana DHP153J50BA PTAC features an EER of 10.6. It use R32 refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment.

Specifications

Cooling Overview
Voltage:
208/230
Capacity:
14,700 BTU
Amps:
6.5
Watts:
1390
EER:
10.6
CFM High Speed:
416
CFM Low Speed:
330
Vent Door CFM:
62/60/56
Dehumidifier:
4.33
Net Weight:
113.54
Shipping Weight:
122.36
Electric Heat Overview
Voltage:
208/230
Heater Size:
5.0
Heating Capacity:
15,000
Watts:
5,000
Amps:
22.3
Reverse Cycle Overview
Voltage:
208/230
Capacity:
13,500
Amps:
6.0
Watts:
520
COP:
3.40
CFM:
398

Features

R-32 Refrigerant
  • 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
Dual Fan Motors
  • Allows precise independent fan speed while providing quiet operation.
LCDI Power Cord Included
  • No need to match power cord type to unit size.
3-Speed Fan
  • Provide precise comfort control to your guests.
Constant Fan
  • Take advantage of each unit’s dual options—select continuous fan operation or cycle the fan ON and OFF with the thermostat. Our 7-button design allows guests to select fan.
Wired Thermostat Compatible
  • Temperature limiting for additional energy savings.
