Home > Air Conditioners > Room Air Conditioners > DHP153J35BA

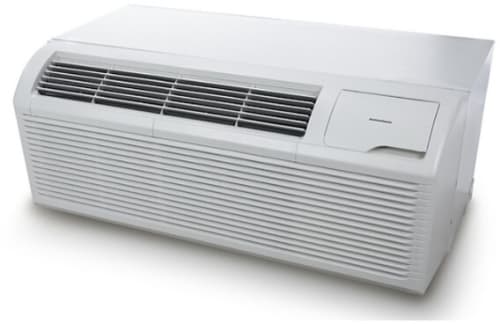

Amana DHP153J35BA - 15,000 BTU Packaged Air Terminal Air Conditioner
Amana DHP153J35BA - 15,000 BTU Packaged Air Terminal Air Conditioner
Amana DHP153J35BA - 15,000 BTU Packaged Air Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana DHP153J35BA
Authorized
Dealer

Amana
DHP153J35BA
15,000 BTU Packaged Air Terminal Air Conditioner with 13,500 BTU Heat Pump, 3 Fan Speed, Fan Only Mode, Energy Saving Mode, Fresh Air Intake and Washable Filter Included

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 14 1/8 Inch
Height: 16 1/6 Inch
Cooling Capacity (BTU): 15,000 BTU
Heating Capacity (BTU): 13,500 BTU
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Control Type: Digital
Remote Control Included: No
Plug Type: 6-20P
View more
$999.00
OR
Have questions? Chat with us!
Product Information
Brand: Amana
Model: DHP153J35BA
Dimensions
Width: 42 Inch
Depth: 14 1/8 Inch
Height: 16 1/6 Inch
Capacity
Cooling Capacity (BTU): 15,000 BTU
Heating Capacity (BTU): 13,500 BTU
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
Features
Type: Wall
Maximum Cooling Amps: 7.4 Amps
Maximum Cooling Watts: 1,370 Watts
Maximum Heating Amps: 13.7 Amps
Maximum Heating Watts: 2,897 Watts
Heat: Heat Pump with Electric Heat Backup
Energy Efficiency Rating: 10.6
Control Type: Digital
Remote Control Included: No
PTAC: Yes
Indoor CFM, High: 416 CFM
Indoor CFM, Low: 330 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-20P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

15,000 BTU Packaged Air Terminal Air Conditioner
The DHP153J35BA is for residential and commercial use with 208 / 230 volt electricity. This unit offers 14,500 / 14,700 BTUs of cooling power, 13,200 / 13,500 BTU heat pump capacity and a 3.5 kW electric heater, providing approximately 8,900 / 10,900 BTUs of electric backup heat. It also includes a 20 amp power cord. The Distinctions by Amana DHP153J35BA PTAC features an EER of 10.6. It use R32 refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment.

Specifications

Overview
Type of Through-the-Wall:
42" PTAC
Sleeve Required for Install:
Yes
Fits Sleeve Size (in.):
42
Refrigerant Type:
R32
Compressor:
Standard
Energy Star:
No
Dehumidification (pts/hr):
4.33
CFMs:
330 / 416 (L / H)
Includes Heat Mode:
Yes
Heat Type:
Heat Pump with Back-Up Electric
Cooling BTUs (@208V):
14500
EER (@208V):
10.6
Cooling Amps (@208V):
7.4
Cooling Watts (@208V):
1370
Electric Heat Strip Size (kW - @208V):
2.9
Electric Heating BTUs (@208V):
8900
Electric Heating Amps (@208V):
13.7
Electric Heating Watts (@208V):
2897
Heat Pump BTUs (@208V):
13500
COP (@208V):
3.2
Heat Pump Heating Amps (@208V):
6.4
Heat Pump Heating Watts (@208V):
1120
Cooling BTUs (@230V):
14700
EER (@230V):
10.6
Cooling Amps (@230V):
5.3
Cooling Watts (@230V):
1040
Electric Heat Strip Size (kW - @230V):
3.5
Electric Heating BTUs (@230V):
10900
Electric Heating Amps (@230V):
15.3
Electric Heating Watts (@230V):
3500
Heat Pump BTUs (@230V):
13500
COP (@230V):
3.2
Heat Pump Heating Amps (@230V):
6.0
Heat Pump Heating Watts (@230V):
1170
Vent Location:
Front Top
Make-Up Air:
No
Energy Saver Mode:
Yes
Fan Speeds:
3
Control Type:
Electronic/Digital
Connectivity:
Not WiFi Compatible
24 Hour ON/OFF Timer:
No
Remote Control:
No
Fresh Air Intake:
Yes
Sleep Mode:
No
Net Weight (lbs.):
113.54
ETL / AHR:
Yes
Electrical Requirements
Voltage:
208-230V
Plug Face (NEMA):
6-20P
Circuit Breaker Size (Amps):
20
Dimensions
Width:
42 inches
Height:
16 1/16 inches
Depth:
14 1/8 inches

Features

Vent placement
  • Front/top of the unit
Energy Saver Mode
  • For improved efficiency
Fresh air intake
  • Washable, front-access filters for easy maintenance
Control
  • Requires a wired wall thermostat; no built-in digital controls, no Wi-Fi, no remote, no sleep mode, no 24-hour timer.
Automatic Emergency Heat
  • The electric backup activates if the heat pump can’t meet heating demand or if it fails
Evaporator Freeze Protection
  • Shuts off compressor and runs fan if the evaporator gets too cold, then restores once safe
Condensate Dispersion System
  • Throws excess moisture onto the outdoor coil for faster evaporation and better performance.
