Description

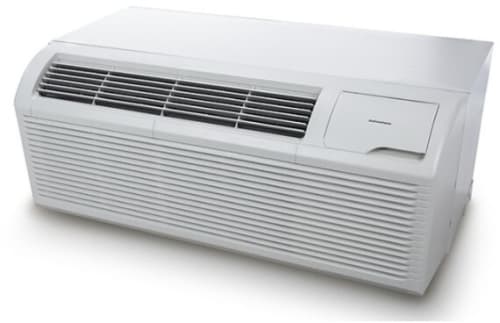

12,000 BTU Packaged Air Terminal Air Conditioner
The DHP124A35AA is for commercial use only (building MUST be wired for 265 / 277 volt service). This unit offers 12,000 BTUs of cooling power, 10,800 BTU heat pump capacity and a 3.5 kW electric heater, providing approximately 10,900 BTUs of electric backup heat. It also includes a 20 amp power cord. The Distinctions by Amana DHP124A35AA PTAC features an EER of 10.5 It use R32 refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment.
Specifications
Overview
Type of Through-the-Wall:
42" PTAC
Sleeve Required for Install:
Yes
Fits Sleeve Size (in.):
42
Dehumidification (pts/hr):
3.17
Heat Type:
Heat Pump with Back-Up Electric
Cooling BTUs (@265V):
12000
Cooling Amps (@265V):
5.3
Cooling Watts (@265V):
1130
Electric Heat Strip Size (kW - @265V):
3.5
Electric Heating BTUs (@265V):
10900
Electric Heating Amps (@265V):
13.2
Electric Heating Watts (@265V):
3500
Heat Pump BTUs (@265V):
10800
Heat Pump Heating Amps (@265V):
5.1
Heat Pump Heating Watts (@265V):
970
Control Type:
Wall Thermostat Required
Connectivity:
Not WiFi Compatible
Certifications:
ETL / AHRI
Electrical Requirements
Circuit Breaker Size (Amps):
20
Dimensions
Features
Vent placement
Energy Saver Mode
Fresh air intake
- Washable, front-access filters for easy maintenance
Control
- Requires a wired wall thermostat; no built-in digital controls, no Wi-Fi, no remote, no sleep mode, no 24-hour timer.
Automatic Emergency Heat
- The electric backup activates if the heat pump can’t meet heating demand or if it fails
Evaporator Freeze Protection
- Shuts off compressor and runs fan if the evaporator gets too cold, then restores once safe
Condensate Dispersion System
- Throws excess moisture onto the outdoor coil for faster evaporation and better performance
