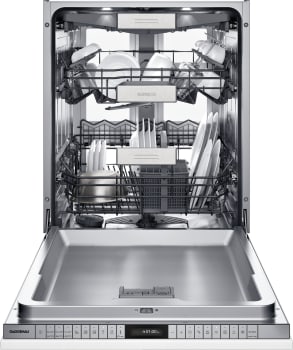

Gaggenau 400 Series DF481763 - 400 Series Fully Integrated Dishwasher

Gaggenau 400 Series DF481763 - Newly Designed Folding Racks

Gaggenau 400 Series DF481763 - Control Panel with TFT Display

Image Disclaimer

Authorized

Dealer

Gaggenau 400 Series

DF481763

24 Inch Fully Integrated Panel Ready Smart Dishwasher with 13 Place Setting Capacity, Soft-Closing System, TFT Display, Aqua Sensor, Load Sensor, Noise Level 42 dB, Push-to-Open Function, Leak Protection System, and ENERGY STAR® Certified

Be the first to write a review

Top Quality Store on Google

quick specs

Width: 23 9/16 Inch

Depth: 21 5/8 Inch

Height: 34 1/8 Inch

Capacity: 13 Place Settings

Control Type: Touchpad

Adjustable Upper Rack: Yes

Third Rack Type: Cutlery Tray

Stainless Steel Interior: Yes

WiFi: Yes

Cycles: 6

Delay Start: Yes

Dry Type: Heated

High Temperature Wash: No

NSF Certified Rinse: No

Quick Wash Setting: Yes

Sensor Clean: Yes

NO LONGER AVAILABLE
Try This Instead

Have questions? Chat with us!

Learn More with a Tailored, Immersive Experience

Experience Gaggenau Appliances Live

Visit a B/S/H Experience & Design Center near you to explore the latest innovations from Gaggenau. These centers are primary hubs to see, touch, experience the full assortment of Gaggenau appliances in a cutting edge, hands-on space.
Select your preferred location below to book a personal visit with a product expert.

NEW YORK, NY

Explore Gaggenau with Your AJM Expert

Throughout your projects, you'll be paired with an AjMadison appliance expert who will assist in selecting the perfect appliances, answer any questions and provide expert advice. See and compare our extensive selection of Gaggenau appliances in person!

Brooklyn, NY Atlanta, GA

Recommended Accessories & Add-ons

Smart Choice

1/2 HP Continuous Feed Waste Disposal

Product Information

Brand: Gaggenau

Series: 400 Series

Model: DF481763

Dimensions

Width: 23 9/16 Inch

Depth: 21 5/8 Inch

Height: 34 1/8 Inch

Cutout Width: 24 Inch

Cutout Depth: 24 Inch

Cutout Height: 34 1/2 Inch

Capacity

Capacity: 13 Place Settings

Appearance

Type: Built In

Color: Panel Ready

Accepts Panels: Yes

Features

Control Type: Touchpad

Electronic Display: Yes

Control Style: Fully Integrated

Child Lock: Yes

Adjustable Upper Rack: Yes

Fold-Down Tines: Yes

Rack Material: Nylon

Third Rack Type: Cutlery Tray

Cutlery Tray: Yes

Cup Shelves: Yes

Stemware Holder: Yes

Tall Tub: Yes

Stainless Steel Interior: Yes

Number of Spray Arms: 2

Rinse Aid Dispenser: Yes

Water Filtration: Yes

Water Heating: Yes

Fingerprint Resistant: No

Leveling Legs: Yes

Smart Home / App Compatible: Yes

Remote Access: Yes

Smart

WiFi: Yes

Alexa: Yes

Google Home: No

Remote Control: Yes

Remote Monitoring: Yes

Remote Diagnostics: Yes

Dash Replenishment: Yes

App Integration: Nest

Smart Accessory Required: No

Wash Features

Cycles: 6

Options: 8

Delay Start: Yes

Dry Type: Heated

Hard Food Disposer: No

High Temperature Wash: No

NSF Certified Rinse: No

Quick Wash Setting: Yes

China/Crystal Setting: Yes

Sanitize Cycle: No

Sensor Clean: Yes

Heavy Duty Cycle: No

Sound Level: 42 dB

Leak Protection: Yes

Rinse & Hold: No

Steam Wash: No

Half Load Option: Yes

Technical Details

Energy Star Rated: Yes

CEE Rating: Tier III

ADA Compliant: No

Approved for Outdoor Use: No

Amps: 15

Voltage: 120 Volts

Watts: 1,440 Watts

GTIN

UPC: 825225957355

Description
Specifications
Features
Reviews

Description

34 Inch Fully Integrated Smart Dishwasher with Home Connect
This panel ready, fully integrated dishwasher offers Optimal drying with zeolite 8 programs with aqua sensor and 5 options, such as Power and Intensive Flexible rack system with smooth running rails on all levels and a soft-closing system of the upper and lower racks. Whether you need a gentle, low temperature clean for your more fragile items, or a high-performance clean for particularly dirty items, your kitchenware will be left sparkling! Clean dishes, stylishly and efficiently with Home Connect. This feature not only provides different ambient lighting options in your kitchen, but they also think and make everyday life easier for you with intelligent dishwashing programs and an array of functions. Home Connect lets you easily control your home appliances. And not just when you're at home when you're out and about too.

Specifications

Appearance

Type:

Built-In

Color:

Panel Ready

Accepts Panels:

Yes

Adjustable Feet:

Yes

Consumption and Connection Features

Number of wash cycles:

Number of options:

Third Rack:

3rd Rack 2.1

Tub material:

Stainless steel

Concealed heating element:

Yes

Leak protection system:

24/7 Aqua Stop Plus

Five-level wash:

Yes

Water softener:

Yes

ChildLock:

Yes

Total annual energy consumption (kWh):

269

Energy Efficiency Class:

Tier 3

Energy Star® qualified:

Yes

Number of place settings:

Minimum Water Pressure (lb/sin):

7.0

Programs

8 programs:

Auto 150 °F - 160 °F; Auto 127 °F - 140 °F; Auto 113 °F - 122 °F; Standard Eco 113 °F - 136 °F; Wash and Dry 122°F (1 h.); Quick Wash 113 °F (30 min.); Glass Care 122 °F; Pre-rinse

5 options:

Intensive; Power; Half Load; Hygiene; Extra Dry with Zeolite

Electrical Specifications

Watts:

1440 W

Volts:

120 V

Current:

12 A

Frequency:

60 Hz

Power Cord Lenght:

47 1/4"

Dimensions & Weights

Overall Height:

34 1/8"

Overall Width:

23 9/16"

Overall Depth:

21 5/8"

Cutout Width:

34 1/8"

Cutout Depth:

23 9/16"

Length Inlet Hose:

65"

Length Outlet Hose:

74 3/4"

Approximate Gross Weight:

135 Lbs

Features

Home Connect

The Home Connect App is a remote control, product manual, shopping assistant, and repair technician all in one. Simply download to your smart device to enjoy greater convenience across all your Gaggenau appliances.

Remote Control

Use your smart device as a remote control to control appliance functions, whether you're home, in the office, or on the road.

Remote Monitoring

Keep track of what's in the fridge from your grocer's aisle, how much time is left on that roast in the oven, or if it's time to add the next load of laundry right from your smart device. Remote Monitoring will always keep you in the know.

Remote Diagnostics

No longer will you have to wait days for a service technician to diagnose an appliance issue. Remote Diagnostics allows certified technicians to access your appliance and start troubleshooting immediately.

Amazon Alexa

Control compatible smart appliances with Amazon Alexa. Simply speak your commands and Alexa will do the work for you.

Auto Replenishment

Never run out of detergent again. Select smart dishwashers and washing machines can connect to Amazon Dash periodically shipping detergent to your home.

IFTTT

If This, Then That! Connect several smart appliances so they can work with each other. With this technology, when your alarm goes off your smart coffee machine can make your favorite brew when your morning alarm sounds. The possibilities are limitless.

Nest

Integrate your Nest products with your connected appliances to give you peace of mind. Keep an eye on your appliances while you're away, receive a notification if your oven is still running, or turn off your appliances remotely.

TFT Display

The digital display screen will let you know the remaining or end time if you need to refill for salt or rinsing agent, and intuitively handle all of the various functions of the dishwasher.

Cutlery Rack

The third rack is specifically designed for cutlery.

Perfectly Illuminated Interior

Bright interior lights ensure you can see every inch of the dishwasher interior.

Aqua Sensor

The AquaSensor measures how clean the rinse water is to cut down on water consumption and ensure that the dishes are getting properly cleaned.

Triple Filter System

The filter system is made up of a Large Object Trap, a Flat Fine Filter, and a Micro Filter to capture the smallest particles to large food particles and objects to keep them from clogging your household drain.

Rackmatic Upper Rack
