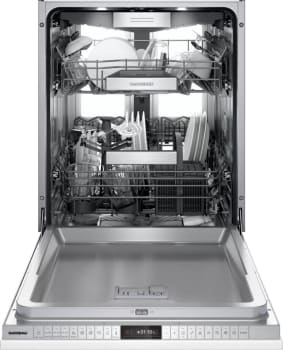

Gaggenau 400 Series DF480701F - 24 Inch Fully Integrated Panel Ready Smart Dishwasher with 13 Place Setting Capacity in Opened View

Gaggenau 400 Series DF480701F - 24 Inch Fully Integrated Panel Ready Smart Dishwasher - Rack

Image Disclaimer

Authorized

Dealer

Gaggenau 400 Series

DF480701F

24 Inch Fully Integrated Panel Ready Smart Dishwasher with 13 Place Setting Capacity, 3rd Rack, 42 dBA, Push-to-Open, 8 Wash Cycles, 4 Wash Options, Home Connect, Glass Protection, and ENERGY STAR®: Euro Tub ADA, Flexible Hinge

Be the first to write a review

Top Quality Store on Google

quick specs

Width: 23 9/16 Inch

Depth: 21 5/8 Inch

Height: 32 3/16 Inch

Capacity: 13 Place Settings

Control Type: Touchpad

Adjustable Upper Rack: Yes

Third Rack Type: Cutlery Tray

Stainless Steel Interior: Yes

WiFi: Yes

Cycles: 8

Delay Start: Yes

Dry Type: Heated

High Temperature Wash: Yes

NSF Certified Rinse: No

Quick Wash Setting: Yes

Sensor Clean: Yes

Height: Euro Tub ADA, Flexible Hinge

Euro Tub ADA

DF480701

Euro Tub ADA, Flexible Hinge

DF480701F

Tall Tub

DF481701

Tall Tub, Flexible Hinge

DF481701F

To order or learn more please call us at:

800-570-3355

You Will Also Need:

Dishwasher Installation Kit

+ $34.99

Have questions? Chat with us!

Learn More with a Tailored, Immersive Experience

Experience Gaggenau Appliances Live

Visit a B/S/H Experience & Design Center near you to explore the latest innovations from Gaggenau. These centers are primary hubs to see, touch, experience the full assortment of Gaggenau appliances in a cutting edge, hands-on space.
Select your preferred location below to book a personal visit with a product expert.

NEW YORK, NY

Explore Gaggenau with Your AJM Expert

Throughout your projects, you'll be paired with an AjMadison appliance expert who will assist in selecting the perfect appliances, answer any questions and provide expert advice. See and compare our extensive selection of Gaggenau appliances in person!

Brooklyn, NY Atlanta, GA

Recommended Accessories & Add-ons

Gaggenau

30 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator

Product Information

Brand: Gaggenau

Series: 400 Series

Model: DF480701F

Dimensions

Width: 23 9/16 Inch

Depth: 21 5/8 Inch

Height: 32 3/16 Inch

Cutout Width: 23 9/16 Inch

Cutout Depth: 24 Inch

Cutout Height: 32 3/16 Inch

Capacity

Capacity: 13 Place Settings

Appearance

Type: Built In

Color: Panel Ready

Accepts Panels: Yes

Features

Control Type: Touchpad

Electronic Display: Yes

Control Style: Fully Integrated

Child Lock: Yes

Adjustable Upper Rack: Yes

Fold-Down Tines: Yes

Rack Material: Nylon

Third Rack Type: Cutlery Tray

Cutlery Tray: Yes

Cup Shelves: Yes

Stemware Holder: Yes

Tall Tub: No

Stainless Steel Interior: Yes

Number of Spray Arms: 2

Rinse Aid Dispenser: Yes

Water Filtration: Yes

Water Heating: Yes

Fingerprint Resistant: No

Leveling Legs: Yes

Interior Light: Yes

Smart Home / App Compatible: Yes

Smart Home Protocol / App Compatible: Home Connect

Remote Access: Yes

Smart

WiFi: Yes

Remote Control: Yes

Remote Monitoring: Yes

Remote Diagnostics: Yes

App Integration: Home Connect™

Smart Accessory Required: No

Wash Features

Cycles: 8

Options: 4

Delay Start: Yes

Dry Type: Heated

Hard Food Disposer: No

High Temperature Wash: Yes

NSF Certified Rinse: No

Quick Wash Setting: Yes

Sanitize Cycle: Yes

Sensor Clean: Yes

Heavy Duty Cycle: Yes

Sound Level: 42 dB

Leak Protection: Yes

Technical Details

Energy Star Rated: Yes

Approved for Outdoor Use: No

Amps: 15

Voltage: 120 Volts

Watts: 1,440 Watts

GTIN

UPC: 825225968757

Description
Specifications
Features
Reviews

Description

24 Inch Fully Integrated Panel Ready Smart Dishwasher
This panel-ready, fully integrated dishwasher offers 8 programs with Aqua Sensor technology and 6 cycle options such as Remote Start, Intensive, Power, Sanitize, Extra Dry with zeolite, and Machine Care. Whether you need a gentle, low-temperature clean for your more fragile items, or a high-performance clean for particularly dirty items, your kitchenware will be left sparkling!
Clean dishes, stylishly, and efficiently with Home Connect. This feature not only provides different ambient lighting options in your kitchen but also thinks and makes everyday life easier for you with intelligent dishwashing programs and an array of functions. Home Connect lets you easily control your home appliances. And not just when you're at home but when you're out and about too.

Specifications

Additional Specs

Capacity:

13 place settings

Wine Glass Capacity:

Plate Size:

13" Maximum

Total Annual Energy Consumption:

269 kWh

Water Usage:

2.5 gallons

TFT Display:

Yes

Sound Level:

42 dBA

Aqua Stop:

Yes

Aqua Sensor:

Yes

Aqua Load:

Yes

Delay Timer:

Yes

Glass Protection:

Yes

Automatic Detergent Function:

Yes

Regeneration Electronics:

Yes

Flow-Through Water Heater:

Yes

Filter System:

Triple Filter

Racks:

Spray Arms:

Cutlery Rack:

Yes

Adjustable Racks:

Yes

Folding Tines:

2 Upper/4 Lower

Folding Racks:

2 Upper/2 Lower

Auto Temperature:

150°F-160°F

Auto Wash Temperature:

130°F-150°F

Standard Eco Temperature:

113°F-131°F

Quick wash Temperature:

113°F, (29 min.)

Glassware Temperature:

122°F

Pre-rinse Temperature:

122°F

Power Boost:

Yes

Intensive Wash:

Yes

Electrical Specifications

Total Amps:

12 Amps

Electrical:

120V / 60Hz

ENERGY STAR Qualified:

Yes

Total Rating:

1.3 kW

Dimensions & Weight

Overall Width:

24"

Overall Depth:

21 5/8"

Overall Height:

32 3/16"

Weight:

132 lbs.

Features

TFT Display

The digital display screen will let you know the remaining or end time, if you need to refill for salt or rinsing agent, and intuitively handle all of the various functions of the dishwasher.

Cutlery Rack

The third rack is specifically designed for cutlery.

Interior Lighting

Bright interior lights ensure you can see every inch of the dishwasher interior.

Aqua Sensor

The AquaSensor measures how clean the rinse water is to cut down on water consumption and ensure that dishes are getting properly cleaned.

Triple Filter System

The filter system is made up of a Large Object Trap, a Flat Fine Filter, and a Micro Filter to capture the smallest particles to large food particles and objects to keep them from clogging your household drain.

Rackmatic Upper Rack

The height of the upper rack can be adjusted to three different levels to create more space for larger items in the lower rack.

Push-to-Open

Push-to-open mechanism and handless design complement all built-in appliances and fit the design flawlessly.

EmotionLight

Interior lighting provides perfect illumination inside the dishwasher.

Sanitize Option

Eliminates bacteria and enhances drying results using extremely high water temperatures.

Delay Start

Set your machine to run on your schedule.

Child Safety Lock

The Child Lock function prevents the unit from being accidentally switched on.

Home Connect

The Home Connect App is a remote control, product manual, shopping assistant, and repair technician all in one. Simply download it to your smart device to enjoy greater convenience across all your Gaggenau appliances.

Remote Control

Use your smart device as a remote control to control appliance functions, whether you're home, in the office, or on the road.

Remote Monitoring

Keep track of what's in the fridge from your grocer's aisle, how much time is left on that roast in the oven, or if it's time to add the next load of laundry right from your smart device. Remote Monitoring will always keep you in the know

Remote diagnostics

No longer will you have to wait days for a service technician to diagnose an appliance issue. Remote Diagnostics allows certified technicians to access your appliance and start troubleshooting immediately.

Amazon Alexa

Control compatible smart appliances with Amazon Alexa. Simply speak your commands and Alexa will do the work for you.

Auto replenishment

Never run out of detergent again. Select smart dishwashers and washing machines that can connect to Amazon Dash periodically shipping detergent to your home.

IFTTT

If This, Then That! Connect several smart appliances so they can work with each other. With this technology, when your alarm goes off your smart coffee machine can make your favorite brew when your morning alarm sounds. The possibilities are limitless.

Nest

Integrate your Nest products with your connected appliances to give you peace of mind. Keep an eye on your appliances while you're away, receive a notification if your oven is still running, or turn off your appliances remotely.
