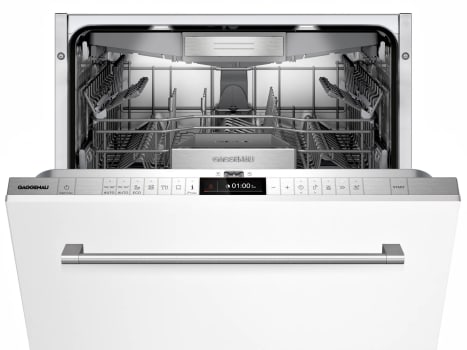

Gaggenau 200 Series DF211701 - 24 Inch Fully Integrated Built-In Smart Dishwasher
Gaggenau 200 Series DF211701 - 24 Inch Fully Integrated Built-In Smart Dishwasher
Gaggenau 200 Series DF211701 - 24 Inch Fully Integrated Built-In Smart Dishwasher
Gaggenau 200 Series DF211701 - 24 Inch Fully Integrated Built-In Smart Dishwasher
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Gaggenau 200 Series DF211701
Authorized
Dealer

Gaggenau 200 Series
DF211701
24 Inch Fully Integrated Built-In Smart Dishwasher with 13 Place Setting Capacity, 3rd Rack, 42 dBA, 6 Programs, 3 Options, Automatic Detergent Dispenser, Wi-Fi Capable, Home Connect App, Interior Lighting, AquaSensor and Energy Star Certified

Top Quality Store on Google
quick specs
Width: 23 9/16 Inch
Depth: 21 5/8 Inch
Height: 34 1/8 Inch
Capacity: 13 Place Settings
Control Type: Touchpad
Adjustable Upper Rack: Yes
Third Rack Type: Cutlery Tray
WiFi: Yes
Cycles: 6
Delay Start: Yes
Dry Type: Condensing
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: Yes
View more
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
You Will Also Need:
Dishwasher Installation Kit
+ $34.99
Have questions? Chat with us!
Learn More with a Tailored, Immersive Experience

Experience Gaggenau Appliances Live

Visit a B/S/H Experience & Design Center near you to explore the latest innovations from Gaggenau. These centers are primary hubs to see, touch, experience the full assortment of Gaggenau appliances in a cutting edge, hands-on space.
Select your preferred location below to book a personal visit with a product expert.

NEW YORK, NY

Explore Gaggenau with Your AJM Expert

Throughout your projects, you'll be paired with an AjMadison appliance expert who will assist in selecting the perfect appliances, answer any questions and provide expert advice. See and compare our extensive selection of Gaggenau appliances in person!

Brooklyn, NY Atlanta, GA

Recommended Accessories & Add-ons

Product Information
Brand: Gaggenau
Series: 200 Series
Model: DF211701
Dimensions
Width: 23 9/16 Inch
Depth: 21 5/8 Inch
Height: 34 1/8 Inch
Cutout Width: 23 5/8 Inch
Cutout Depth: 21 5/8 Inch
Cutout Height: 34 1/8 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Capacity: 13 Place Settings
Appearance
Type: Built In
Color: White
Accepts Panels: No
Features
Control Type: Touchpad
Electronic Display: Yes
Control Style: Fully Integrated
Recessed Handles: No
Child Lock: No
Adjustable Upper Rack: Yes
Fold-Down Tines: Yes
Third Rack Type: Cutlery Tray
Tall Tub: Yes
Number of Spray Arms: 2
Rinse Aid Dispenser: Yes
Water Filtration: Yes
Water Heating: Yes
Leveling Legs: Yes
Interior Light: Yes
Auto Detergent Dispenser: Yes
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Home Connect
Smart
WiFi: Yes
App Integration: Home Connect
Wash Features
Cycles: 6
Options: 3
Delay Start: Yes
Dry Type: Condensing
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: Yes
China/Crystal Setting: Yes
Heavy Duty Cycle: Yes
Sound Level: 42 dB
Leak Protection: Yes
Rinse & Hold: Yes
Delicate Wash: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
Watts: 1,440 Watts
GTIN
UPC: 825225971085
Are you a Trade Pro? Join Now

Description

24 Inch Fully Integrated Built-In Smart Dishwasher with 13 Place Setting Capacity
Experience the ultimate in dishwasher performance with innovative features designed for modern convenience. The TFT display keeps you informed with remaining time, refill alerts, and water inflow status, while touch key operation ensures effortless control. Customize your washing experience with personalized program combinations and enjoy the flexibility of cycle time reduction, even mid-cycle. Bright interior lighting enhances visibility, and advanced sensors, including Aqua and Load sensors, ensure optimal water and detergent use. With premium glass protection, a triple filter system, and the reliable Aqua Stop safety feature, every load is cleaned with care and precision.

Specifications

Product Overview
Design:
Built-in
Installation Type:
Full-integrated
Removable Top:
No
Panel Ready:
Not Possible
Variable Hinge:
No
Adjustable Plinth:
Both horizontal and vertical
ENERGY STAR® certified:
Yes
Total Annual Energy Consumption:
240 kWh
Total Annual Water Consumption:
1871 gal
Silence Level:
42 dB (A) re 1 pW
Number of Place Settings:
13
List of Programs:
Favorite / Glass / Intensive / Normal / Quick Wash 45°C
Special Functions:
Extra Dry / Intensive Zone / Remote Start / Vario Speed
aqua Stop:
Yes
Drying System:
Condensation Dry
3rd Rack:
Vario Drawer Pro
Adjustable Upper Rack:
Yes
Maximum Temperature for Water Intake:
140 °F
Dimensions & Weight
Overall Appliance Dimensions (H x W x D) (in):
34 1/8'' x 23 9/16'' x 21 5/8''
Required Cutout Size (H x W x D) (in):
34 1/8'' x 24'' x 24''
Net Weight:
100.000 lbs.
Adjustable Feet:
Yes, All Adjustable from Front
Length Outlet Hose (in):
74 3/4''
Power Cord Length:
47 1/4''
Comfort & Convenience
Status Indicator:
End of program audible
Open Door Assist:
No
Time Remaining Power Beam:
No
Info Light:
Red
emotion Light:
Yes
Multi-color Star Glow:
No
side Light:
No
Cleaning Technology
Drying System:
Condensation Dry
NSF® Certified Sanitize Option:
No
Eco Silence Drive:
Yes
Aqua Sensor:
Yes
Water Management System:
No
Detergent Detection:
Yes
Water Softener:
Yes
Connectivity
Home Connect™:
Yes
Home Connect Features:
Remote Monitoring and Control
Safety
aqua Stop:
Yes
Child Lock:
No

Features

Advanced Programs and Options

6 Programs with Aqua Sensor
  • Tailored cleaning for various needs, including Power to reduce cycle time and Intensive for deep cleaning in the lower basket.
  • 4 Customizable Options
  • Enhance performance with additional settings, like faster cycles or extra care for heavily soiled dishes.
  • Program Assistant
  • Intuitive guidance to select the best program for your load.

Smart Connectivity

Home Connect Integration
  • Seamlessly control and monitor your dishwasher with WiFi-enabled Home Connect services. Note: Availability varies by region.
Temporary Noise Reduction
  • A special feature for quieter operation, accessible via Home Connect.

Effortless Operation

TFT Display
  • Provides real-time updates on remaining or end time, salt and rinse aid refill, and water inflow status.
Touch Key Controls
  • Sleek and responsive interface for easy adjustments.
  • Flexible Cycle Time Reduction: Speed up cleaning, even during active cycles.
Personalization Function
  • Save and recall your favorite program combinations.
Time Delay
  • Schedule washing up to 24 hours in advance.
Visual and Acoustic Indicators
  • Info-Light and sound cues signal program completion.

Superior Cleaning Features

Flexible Basket System
  • Adjustable design for accommodating various dish sizes.
Glass Protection
  • Special care for delicate glassware.
Aqua Sensor and Load Sensor
  • Optimize water and energy use based on load size and soil level.
Automatic Detergent Function
  • Ensures the perfect detergent dosage for each cycle.
  • Regeneration Electronics: Maintains consistent water quality for optimal performance.

Enhanced Interior and Quiet Operation

Bright Interior Lighting
  • Illuminates the entire cavity for easy loading and unloading.
Ultra-Quiet Performance
  • Operates at a whisper-quiet 42 dB, perfect for open-concept spaces.

Robust Technical Features

Flow-Through Water Heater™
  • Delivers rapid and efficient heating for spotless results.
Triple Filter System
  • Keeps water clean and recirculated for effective washing.
Soft Lock
  • Gentle yet secure door closure for added convenience.
Aqua Stop
  • Leak prevention system ensures peace of mind.
