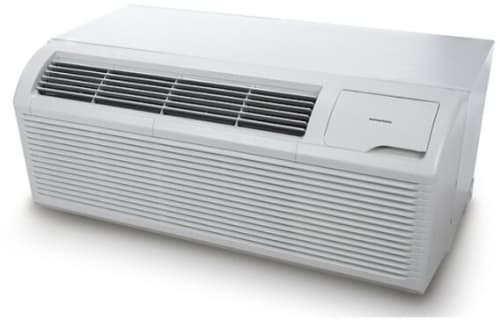

Amana Distinctions DCP073J35BA - 7,300 BTU Packaged Terminal Air Conditioner
Amana Distinctions DCP073J35BA - 7,300 BTU Packaged Terminal Air Conditioner
Amana Distinctions DCP073J35BA - 7,300 BTU Packaged Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana Distinctions DCP073J35BA
Authorized
Dealer

Amana Distinctions
DCP073J35BA
7,300 BTU Packaged Terminal Air Conditioner with 10,900 BTU Electric Heat, Dual Fan Motors, 3 Speed Fan, Constant Fan, Easy Pull Out Filter and LCDI Power Cord Included

quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 7,300 BTU
Heating Capacity (BTU): 10,900 BTU
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Wall Sleeve Included: No
Control Type: Digital
Plug Type: 6-20P
View more
$784.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Amana
Series: Distinctions
Model: DCP073J35BA
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Heating Capacity (BTU): 10,900 BTU
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Features
Type: Wall
Wall Sleeve Included: No
Maximum Cooling Amps: 3.1 Amps
Maximum Cooling Watts: 560 Watts
Maximum Heating Amps: 15.3 Amps
Maximum Heating Watts: 3,500 Watts
Heat: Electric Heat
Energy Efficiency Rating: 13.1
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 346 CFM
Indoor CFM, Low: 285 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: No
Plug Type: 6-20P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

7,300 BTU Packaged Terminal Air Conditioner
The DCP073J35BA is for residential and commercial use with 208 / 230 volt electricity. This unit offers 7,200 / 7,300 BTUs of cooling power and a 3.5 kW electric heater, providing approximately 8,900 / 10,900 BTUs of electric backup heat. It also includes a 20 amp power cord. The Distinctions by Amana DCP073J35BA PTAC features an EER of 13.1. It uses R32 refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment.

Specifications

Overview
Voltage:
230/208
Capacity:
7,300 BTU
Amps:
3.1
Watts:
560
EER:
13.1
CFM High:
346
CFM Low:
285
Vent Door CFM:
61.1/57.6/50.6
Dehumidification:
0.63
Weight:
98.1
Shipping:
106.92
Electric Heat Overview
Voltage:
230/208
Heater Size:
3.5 kw
Heater Capacity:
10,900
Watts:
3,500
Amps:
15.3

Features

R-32 Refrigerant
  • 68% lower Global Warming Potential (GWP) and can reduce direct emissions from refrigerant by up to 73.6% as compared to R-410A
Dual Fan Motors
  • Allows precise independent fan speed while providing quiet operation.
LCDI Power Cord Included
  • No need to match power cord type to unit size.
3-Speed Fan
  • Provide precise comfort control to your guests.
Constant Fan
  • Take advantage of each unit’s dual options—select continuous fan operation or cycle the fan ON and OFF with the thermostat. Our 7-button design allows guests to select fan.
Wired Thermostat Compatible
  • Temperature limiting for additional energy savings.
