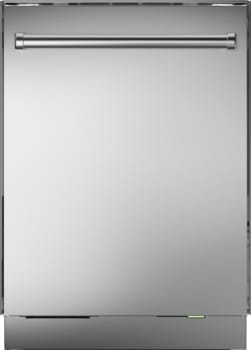

ASKO 50 Series DBI565PHXXLS - 24 Inch Fully-Integrated Dishwasher

Image Disclaimer

Authorized

Dealer

ASKO 50 Series DBI565PHXXLS 24 Inch Fully-Integrated Built-In Smart Dishwasher with 16 Place Settings, 9 Wash Cycles, 40 dBA Noise Level, 3 Racks, 3 Spray Arms, 9 Spray Zones, XXL Tub, Super Cleaning System+™, Aqua Safe™, Kid Safe™, Self-Cleaning Program, Cutlery Power Zone, Turbo Combi Drying™, 2 Interior Lights, LCD Controls and WiFi: Pro Handle

Average rating of
2 reviews

Top Quality Store on Google

Free 5 Yr Warranty

quick specs

Width: 23 15/16 Inch

Depth: 21 13/16 Inch

Height: 34 5/16 Inch

Capacity: 16 Place Settings

Control Type: Touch Sensor

Adjustable Upper Rack: No

Stainless Steel Interior: Yes

WiFi: Yes

Cycles: 9

Delay Start: Yes

Dry Type: Heated & Vented

High Temperature Wash: Yes

Quick Wash Setting: Yes

Sensor Clean: Yes

Handle: Please make a selection

NO LONGER AVAILABLE
Try This Instead

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: ASKO

Series: 50 Series

Model: DBI565PHXXLS

Dimensions

Width: 23 15/16 Inch

Depth: 21 13/16 Inch

Height: 34 5/16 Inch

Cutout Width: 24 Inch

Cutout Depth: 21 7/8 Inch

Cutout Height: 34 1/4 Inch

Capacity

Capacity: 16 Place Settings

Appearance

Type: Built In

Color: Stainless Steel

Accepts Panels: No

Features

Control Type: Touch Sensor

Electronic Display: Yes

Control Style: Fully Integrated

Recessed Handles: No

Child Lock: Yes

Adjustable Upper Rack: No

Fold-Down Tines: Yes

Cutlery Tray: Yes

Cup Shelves: Yes

Stemware Holder: Yes

Tall Tub: Yes

Stainless Steel Interior: Yes

Number of Spray Arms: 3

Rinse Aid Dispenser: Yes

Water Heating: Yes

Fingerprint Resistant: Yes

Leveling Legs: Yes

Interior Light: Yes

Auto Detergent Dispenser: Yes

Smart

WiFi: Yes

App Integration: ConnectLife App

Wash Features

Cycles: 9

Options: 6

Delay Start: Yes

Dry Type: Heated & Vented

High Temperature Wash: Yes

Quick Wash Setting: Yes

China/Crystal Setting: Yes

Sanitize Cycle: Yes

Sensor Clean: Yes

Sound Level: 40 dB

Leak Protection: Yes

Rinse & Hold: Yes

Steam Wash: Yes

Technical Details

ADA Compliant: No

Amps: 15

Voltage: 120 Volts

Watts: 1,300 Watts

GTIN

UPC: 3838782639074

EAN: 3838782639074

Description
Specifications
Features
Reviews

Description

24 Inch Fully-Integrated Built-In Dishwasher with 16 Place Settings
The perfect, silent, efficient built-in dishwasher that guarantees you clean and dried dishes every time. This dishwasher has three basket levels for a better loading flexibility. Equipped with ASKO's powerful Super Cleaning System+ which is developed to eliminate the need for you to pre-rinse and our useful Hygiene program for baby bottles and other items that need to be perfectly disinfected.

Specifications

Additional Specs

Number of place settings:

16 pcs

Number of racks:

Number of spray arms:

3 pcs

Number of spray zones:

Water Softener:

WiFi:

Yes, Integrated

Top tray:

Easy height adjustment / Telescopic Rails / Handle / Guide Rails with Ball Bearings / Removable

Upper rack type:

Exclusive, all tines are foldable / Foldable wine shelves / Light Lock™

Upper rack height adjustable:

Yes

Upper basket:

Telescopic Rails / Light Lock™ / China Guard / Extra wide knife stand / dividable pin rows / Handle with ASKO logo / Foldable wine shelves to right / Dividable/foldable wine shelves to left

Lower rack type:

Exclusive

Lower rack:

Foldable/dividable front & rear pin row / Vase/bottle holder / Cutlery basket / Handle with ASKO logo / Sliding tines

Automatic dosing system:

Interior light:

Yes, 2 LED Lights

Status Light™:

Yes

Type of display:

LCD display

Indication of low level of rinse-aid:

Notification in display

Salt refill indicator:

Notification in display

Technical Data

Water connection:

Hot & Cold Water

Adapter for water connection:

Max. temperature of inflow water:

140 °F

Noise level (max):

40 dB(A)

Connected load:

1300 W

Voltage (V):

120 V

Fuse:

15 A

Frequency:

60 Hz

Dimensions & Weight

Width:

23 15/16"

Height:

32 5/16"

Depth:

21 13/16"

Maximum product height:

36 3/8"

Length of electrical cord:

71 7/16"

Depth with door open:

48 7/16"

Packaging width:

25 3/16"

Packaging height:

36 5/8"

Packaging depth:

26 3/4"

Net weight:

95.9 lbs.

Gross weight:

103.2 lbs.

Features

Super Cleaning System™

Rinse the dishes. Clean the interior, including the filter. Choose the best program.

8 Steel™ - More Steel Less Plastic

The main components of ASKO's dishwashers are manufactured using high-quality steel instead of plastic.

Turbo Combi Drying™ with sensor control

Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air.

The sensor control opens door earlier or later depending on warmer or cooler temperature of room.

Aqua Safe™ System

Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.

Flexiracks™

ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.

XXL Dishwashers

Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

Self Cleaning

ASKO's dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned.

Top Cutlery Tray

The top tray for cutlery and kitchen utensils is easy to remove for easy unloading.

Connected

The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet.

Time Program

The program adjusts washing and rinsing to match your needs.

Folding Tines

The foldable tines in the lower tray makes it easy to load different sizes of pots and pans.

Status Light™

ASKO's new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.

Brushless Motor

A brushless motor is not only quieter and more reliable. It also consumes less energy.

Anti Siphon

For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine.

Additional Features

Self Cleaning

LightLock™

China Guard

15 3/4" Plates in Lower Rack

Speed Mode

Night Mode

Quick Pro Wash

Green Mode

Rinse & Hold

Aqua Level™ Sensor

Aqua Detect™ Sensor

Power Zone Cutlery™

Kid Safe™

InstantLift™

9 Spray™

3 Level Rack

Telescopic Rails

3 Spray Arms

Touch Proof™

16 Loading Capacity

Pop Out Door

Extra Wide Knife Stand

Top Cutlery Tray

Vase/Bottle Holder

LED Interior Light

Multi Position Glass Rack

Adjustable Power Zones

Key Features

8 Steel™

More steel, less plastic—because nothing lasts like steel. ASKO dishwashers feature eight key components in durable steel, ensuring longevity and superior quality.

Aqua Safe™

Worried about running the dishwasher while you're away? The Aqua Safe™ system provides round-the-clock leak protection for peace of mind.

Flexiracks™

ASKO Flexiracks™ are made of durable, nylon-coated steel and adjust easily to fit any load.

Instant Lift™

The Instant Lift™ system adjusts the upper rack by 1.5" or 2.25", creating flexible space for any load.

Kid Safe™

Kid Safe™ offers peace of mind by locking the control panel and preventing unintended operation or changes mid-cycle—ideal for families and busy households where little hands may press buttons unexpectedly.

Light Lock™

LightLock™ keeps plastic cans and bowls securely in place, preventing them from tipping and filling with water during the wash cycle.

Status Light™

ASKO's new dishwashers feature Status Light™, a small indicator in the bottom right corner that shows the program’s progress.

Super Cleaning System™ (SCS™)

Rinse the dishes, clean the interior (including the filter), and select the optimal program. All in just one step—our Super Cleaning System, the ultimate innovation.

Turbo Combi Drying™

Turbo Combi Drying™ with sensor control optimizes drying by adjusting door opening based on kitchen temperature, ensuring maximum energy efficiency.
