Description
Consistent, Professional Results
Their complete collection of Range Wall Hoods and Inserts is the finishing touch to their Range series. Hand-sculpted by experienced craftsmen, each ventilation hood meets their exacting high standards.
Miele Philosophy
Miele is a German manufacturer of high quality domestic appliances and machines for commercial applications. The company was founded over 110 years ago in 1899 by Carl Miele and Reinhard Zinkann and has always been a family-owned, family-run company.
Miele aims to manufacture the highest-quality domestic appliances and commercial equipment in the world and to be seen by markets worldwide as providing an absolutely top-class household product. Available at AJ Madison.
The customer, for whom they provide first-class products and services, is at the center of attention. Thanks to this company philosophy which focuses on the dynamic development of quality and technology, the Miele brand is now identified with unsurpassed product quality.
Specifications
Construction Type

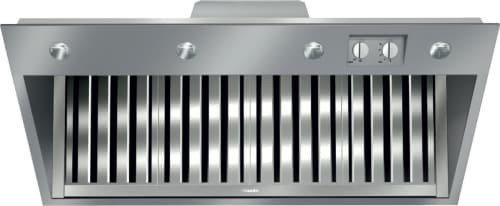

Insert Ventilation Hood:
Yes
Operating Modes
Recirculated Mode:
Air extraction
External Operation Possible:
Yes
Lighting
Number of Lights and Wattage:
4 LED lights @ 2 watts each
Features
Fan Speeds:
4 Including Intensive
Dishwasher-Safe Stainless Steel Baffle Filters:
Yes
Hood Interior with CleanCover:
Yes
Auto-Vent Safety Sensor:
Yes
Electrical
Electrical Requirements:
120V, 60Hz, 15 Amps
Power Cord:
Yes, NEMA 5-15P Plug
Total Connected Load in kW:
0.81
Standard Plug Fitted:
Yes
Installation Notes
Vent Connection at Top:
Yes
Diameter of Vent Connection:
9 7/8"
Dimensions and Weights
Overall Height:
17 11/16"
Overall Height Including Top Duct:
25 11/16"
Shipping Weight:
92.6 Lbs
Warranty
Parts and Labor:
1 Year Limited
Features
Temperature Sensor
- Continuous monitoring, the temperature sensor ensures safety and prevents unnecessary energy consumption.
LED ClearView Lighting
- Provides a more natural light - With up to 4.5 W they illuminate the cooktop with a warm light.
Miele CleanCover
- Located behind the grease filters is the Miele CleanCover. Instead of sharp metal edges and electrical components, you will find only a sealed, smooth surface.
- The clear cover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Knob Controls
- Matching convenience: Rotary control allow intuitive and easy operation of blower power and LED lighting.
Dishwasher-Safe Baffle Filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
Additional Features
