Miele Stella DAC2247 - 46 Inch Stella Island Mount Smart Range Hood in Front View
Miele Stella DAC2247 - 46 Inch Stella Island Mount Smart Range Hood in Front View
Miele Stella DAC2247 - 46 Inch Stella Island Mount Smart Range Hood in Front View
Miele Stella DAC2247 - 46 Inch Stella Island Mount Smart Range Hood in Control Panel View
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Miele Stella DAC2247
Authorized
Dealer

Miele Stella
DAC2247
46 Inch Stella Island Mount Smart Range Hood with 3-Speed/474 CFM Blower, EasySwitch Electronic Controls, LED Lighting, 10-Ply Stainless Steel Grease Filters, Miele@home, Automatic Function Con@ctivity and Remote Control Included

Top Quality Store on Google
Only 8 left in stock
quick specs
Style: Chimney Style
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 45 7/8 Inch
Depth: 19 11/16 Inch
Height: 11 5/8 Inch
WiFi: Yes
Remote Control: Yes
CFM: 474 CFM
Permanent Air Flow Reduction: Yes
Duct Size: 6 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Warranty Terms: 2 years
?
View more
$2,999.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026
Have questions? Chat with us!

You Might Also Like

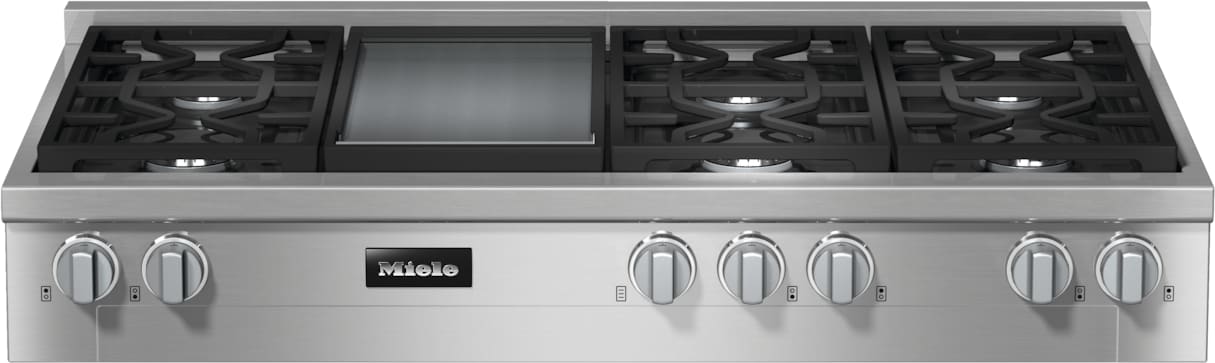

48 Inch Gas Rangetop
Miele
48 Inch Gas Rangetop
$7,199.00

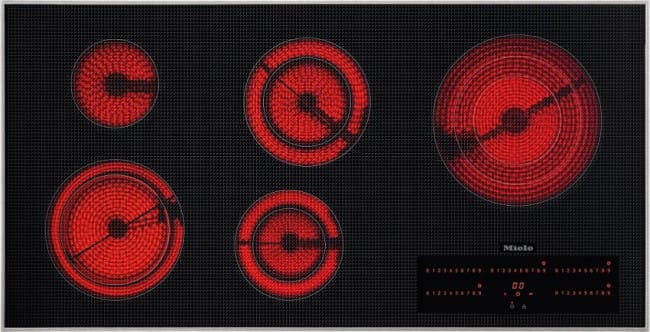

42 Inch Electric Cooktop
Miele
42 Inch Electric Cooktop
$3,299.00

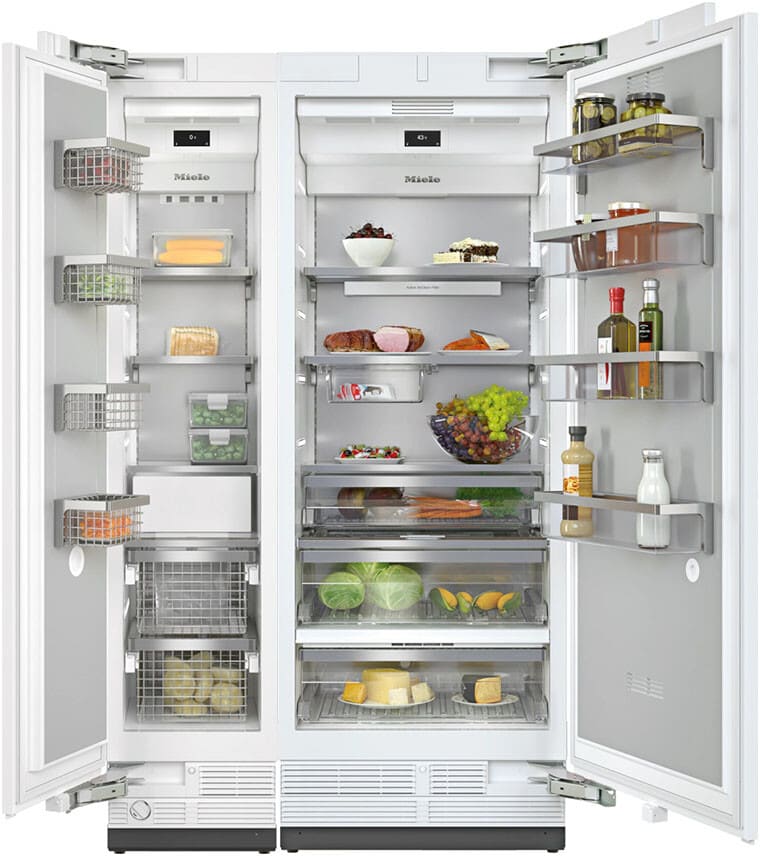

Side-by-Side Column Set
Miele
Side-by-Side Column Set
$19,997.00
24 Inch Built-In Fully Integrated Dishwasher
Miele
24 Inch Built-In Fully Integrated Dishwasher
$3,199.00
Product Information
Brand: Miele
Series: Stella
Model: DAC2247
Warranty Terms: 2 years
?
Appearance
Style: Chimney Style
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Island Mount
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 45 7/8 Inch
Depth: 19 11/16 Inch
Height: 11 5/8 Inch
Smart
WiFi: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
Smart Accessory Required: No
Capacity
CFM: 474 CFM
Permanent Air Flow Reduction: Yes
Duct Size: 6 Inch
Features
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 4002516805946
EAN: 04002516805946
Are you a Trade Pro? Join Now

Description

46 Inch Stella Island Mount Smart Range Hood with 3-Speed/474 CFM Blower
The Miele DAC 2247 is a ceiling-mounted extractor designed for installation above an island cooktop. It features a sleek stainless steel design and provides powerful ventilation while maintaining a modern aesthetic. It includes Con@ctivity 3.0, which allows for smart connectivity and automatic fan adjustment. The LED lighting ensures bright and energy-efficient illumination. It supports both vented and recirculating installation modes, offering flexibility for different kitchen setups. The unit is designed for quiet operation, minimizing noise while maintaining high performance.

Specifications

Design
Ceiling fan:
Yes
Operating Modes
Recirculated mode:
Can be retrofitted
Active charcoal filter (order separately):
DKF 35-P
User Convenience
Miele@home:
Yes
Con@ctivity 3.0:
Yes
Delayed shutdown for 5 or 15 minutes:
Yes
Grease filter saturation indicator:
Yes
Active charcoal filter saturation indicator:
Yes
Efficiency and Sustainability
Cleaning Convenience
Easy-clean CleanCover liner:
Yes
Filter system
Stainless steel grease filters:
4
Lighting
LED:
Yes
Number x W:
2 x 7,2 W
Light intensity in Lx:
450 lx
Color temperature in K:
3500 Kelvin
Blower
DC motor:
Yes
Exhaust Air
Air throughput in Booster (cfm):
474
Sound power in Booster (dBA):
70
Recirculation
Air throughput in Booster (cfm):
283
Sound power Booster (dBA):
69
Safety
Safety shut-off:
Yes
Technical Data
Canopy dimensions (W x H x D):
45 7/8" x 11 5/8" x 19 11/16"
Min. height above electric cooktop:
24 1/8"
Min. clearance above gas cooktops:
26"
Voltage in V:
120
Fuse rating in A:
15
Total connected load in kW:
0.19
Installation Note
Vent connection on side:
Yes
Ø Exhaust duct:
6"

Features

3-Speed/474 CFM Blower
  • The hood features a powerful blower with three standard speed settings, delivering up to 474 CFM (cubic feet per minute) of air throughput, ensuring efficient removal of cooking odors and grease.
EasySwitch Electronic Controls
  • User-friendly EasySwitch electronic controls allow for intuitive operation, enabling you to adjust fan speeds and lighting with ease.
LED Lighting
  • Equipped with energy-efficient LED lights, the hood provides optimal illumination of your cooking area, enhancing visibility and ambiance.
10-Ply Stainless Steel Grease Filters
  • The hood includes 10-layer stainless steel grease filters that effectively capture grease and are dishwasher-safe for easy cleaning.
Miele@home
  • This smart home integration allows you to monitor and control your hood remotely via the Miele app, offering convenience and flexibility in managing your kitchen environment.
Automatic Function Con@ctivity
  • The Con@ctivity feature enables the hood to communicate with compatible Miele cooktops, automatically adjusting the fan speed based on your cooking activity for optimal ventilation.
Remote Control Included
  • A remote control is provided, allowing you to operate the hood's functions from a distance, adding convenience to your cooking experience.
1 Booster Level
  • An intensive Booster level provides temporary increased airflow to handle heavy smoke or strong odors during high-heat cooking.
Programmable Intensive Switch-Off
  • This feature allows you to set a timer for the intensive level, ensuring the hood returns to a lower setting after a specified period, conserving energy.
Delayed Shutdown
  • The delayed shutdown function enables the hood to continue operating for a set time after cooking, effectively removing residual odors and heat.
Grease Filter Saturation Indicator
  • An indicator alerts you when the grease filters require cleaning, ensuring the hood maintains optimal performance.
Active Charcoal Filter Saturation Indicator
  • For recirculating installations, this indicator notifies you when the charcoal filters need replacement, maintaining effective odor filtration.
CleanCover
  • The hood's interior features Miele's CleanCover, a sealed, smooth surface that prevents contact with electrical components, enhancing safety and simplifying cleaning.
PowerManagement System
  • This system optimizes energy consumption by adjusting the hood's power usage based on operational needs, promoting energy efficiency.
Safety Shut-Off
  • For safety and energy conservation, the hood features an automatic shut-off function that turns off the unit after a prolonged period of inactivity.
Customizable Panel
  • The hood offers a customizable panel, allowing you to tailor its appearance to match your kitchen's design and aesthetic preferences.
