Miele DA6698DBL - 36" Puristic Island Ventilation Hood in Obsedian Black by Miele

Miele DA6698DBL - Touch on Glass Controls

Image Disclaimer

Authorized

Dealer

Miele

DA6698DBL

36 Inch Island Mount Smart Range Hood with 4 Fan Speeds, 625 CFM Internal Blower, Touch Control, LED ClearView Lighting, Stainless-Steel Grease Filters, WiFiConn@ct, Con@ctivity, Safety Turn Off, and ADA Compliant

Be the first to write a review

Top Quality Store on Google

Only 3 left in stock

Bundle & Save up to 10%

quick specs

Style: Chimney Style

Venting Type: Convertible

Blower Included: Yes

Blower Type: Internal

Width: 35 3/8 Inch

Depth: 23 5/8 Inch

Height: 3 3/8 Inch

WiFi: Yes

Remote Control: Yes

CFM: 625 CFM

Permanent Air Flow Reduction: Yes

Duct Size: 6 Inch

Number of Fan Speeds: 4

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: Yes

Warranty Terms: 2 years

Color: Obsidian Black

Obsidian Black

DA6698DBL

$4,899.00

^$4,899^.00

Current Offers

Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026

Have questions? Chat with us!

Recommended Accessories & Add-ons

Miele

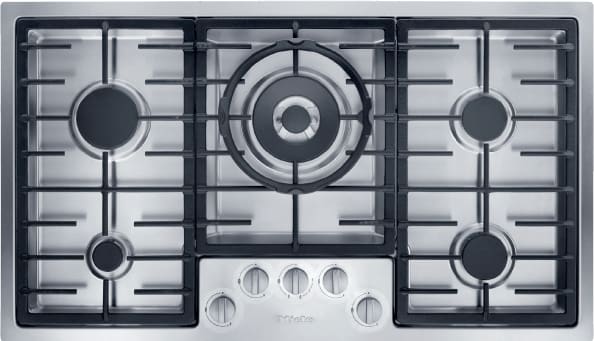

36 Inch Gas Cooktop

$3,199.00

Product Information

Brand: Miele

Model: DA6698DBL

Warranty Terms: 2 years

Appearance

Style: Chimney Style

Type: Hood

Color: Obsidian Black

Fingerprint Resistant: No

Glass Canopy: No

Mounting Type: Island Mount

Venting Type: Convertible

Blower Included: Yes

Blower Type: Internal

Dimensions

Width: 35 3/8 Inch

Depth: 23 5/8 Inch

Height: 3 3/8 Inch

Smart

WiFi: Yes

Remote Control: Yes

Remote Monitoring: Yes

Capacity

CFM: 625 CFM

Permanent Air Flow Reduction: Yes

Duct Size: 6 Inch

Features

Number of Fan Speeds: 4

Filter Type: Mesh

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: Yes

Technical Details

ADA Compliant: Yes

CEE Rating: Not Available

Amps: 15

Voltage: 120 Volts

Approved for Outdoor Use: No

GTIN

EAN: 4002516024675

Description
Specifications
Features
Rebates
Reviews

Description

36 Inch Island Mount Smart Range Hood with 4 Fan Speeds
Designed especially for island hobs, this stylish, streamlined cooker hood comes in black, white or stainless steel and features integrated LED lights. Its highly energy-efficient (A++ rated), a powerful fan is sound-proofed for minimal disruption to your kitchen and can be controlled automatically while you use the hob with WiFi connectivity. The temporary booster function powerfully clears the air of smoke or cooking odors, for a fresh kitchen environment.

Specifications

Construction Type

Island Ventilation Hood:

Yes

Design

Color:

Obsidian black

RAL Color Possible as Special Order:

Yes

Customization Possible on Request:

Yes

Operating Modes

Recirculated Mode:

Convertible

OdorFree Charcoal Filter (order separately):

DKF12-900

Control Panel

Electronic Controls:

Yes

Touch Controls on Glass:

Yes

Power Levels (number excl. Intensive):

Intensive Setting:

Yes

Programmable 'Intensive' Switch-Off:

Yes

Delayed Shutdown for 5 or 15 Minutes:

Yes

Programmable Grease Filter Saturation Indicator:

Yes

Programmable Charcoal Filter Saturation Indicator:

Yes

Acoustic Package:

Yes

Cleaning Convenience

Easy-to-Clean CleanCover Hood Liner:

Yes

Networking of Domestic Appliances

Miele@home:

Yes

WiFiConn@ct:

Yes

ShopConn@ct:

Yes

Automatic function Con@ctivity 2.0 (Zigbee):

Yes

Filter System

Number of Dishwasher-Safe Stainless Steel Grease Filters:

Lighting

LED ClearView Lighting:

Yes

Light Intensity in Lx:

820

Color Temperature in K:

3,500

Light Dimmer Function:

Yes

Blower

Dual-Action Blower:

Yes

AC Motor:

Yes

Air Throughput with Max. Duct Diameter in Vented Mode (not for external version)

Air Throughput:

Values upon request

Safety

Safety Shut-Off:

Yes

Single-Ply Safety Glass (ESG):

Yes

Technical Data

Overall Hood Height for Vented and External:

27 7/8"

Overall Hood Height for Recirculation:

30 1/8"

Canopy Width:

35 3/8"

Height of Hood Canopy:

3 3/8"

Depth of Hood Canopy:

23 5/8"

Minimum Distance Above Electric Cooktops:

24 1/8"

Minimum Height Above Gas Cooktop:

26"

Net Weight in lbs:

Hard-Wired:

Yes

Total Connected Load in kW:

0.36

Voltage in V:

120

Fuse Rating in A:

Number of Phases:

Installation Notes

Vent Connection at Top:

Yes

Diameter of Vent Connection:

Telescopic Chimney:

Yes

Standard Accessories

Non-Return Flap:

Yes

Wireless Stick Con@ctivity 2.0 for KM:

XKS 3000 Z

Optional Accessories

OdorFree Charcoal Filter:

DKF 12-900

Chimney Extension:

DATK 1-760

Chimney Extension:

DATK 2-1000

Warranty

Parts and Labor:

1 Year

Features

4 Fan Speeds

Provide the right amount of ventilation for every meal you prepare.

625 CFM Internal Blower

Perfectly clean up smoke and odor from your kitchen.

Touch Control

Seamless, integrated controls are intuitive and easy to use.

Touch on glass controls is also easy to wipe clean.

LED ClearView Lighting

Environmentally friendly and long-lasting: With up to 4.5 W they illuminate the cooktop with a warm light.

Stainless-Steel Grease Filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

WiFiConn@ct

Control and monitor the hood via the Miele@Mobile app.

Con@ctivity

Optimum room climate: The required blower output is automatically controlled by the cooktop settings.

Communication between hood and cooktop.

Safety Turn Off

Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.

ADA Compliant

ADA compliant when used with remote control or WifiConn@ct.

Miele CleanCover

Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

Delayed Shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

Filter Saturation Indicator

Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated.

Automatic 'Intensive' Switch-Off

Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.

High-Quality and Powerful Motors

Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels.

Active Airclean Filter

Efficient in absorbing odors: In recirculation mode odors are absorbed and neutralized completely.

Perfect Craftsmanship

Unique characteristics of Miele hoods: precise contours and precision joints.

Handcrafted in Germany

Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.
