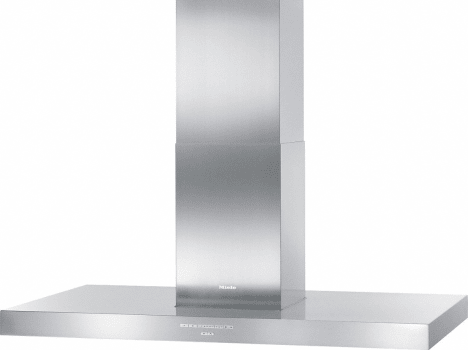

Miele DA4248VD - Front View
Miele DA4248VD - Front View

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Miele DA4248VD
Authorized
Dealer

Miele
DA4248VD
48 Inch Stainless Steel Ventilation Hood with 625 CFM, Con@ctivity, CleanCover, Grease Filters, Design Variety, LED ClearView Lighting, Automatic 'Intensive' switch-off, Safety turn off, Delayed shutdown and Motorized canopy

Top Quality Store on Google
Bundle & Save up to 10%
quick specs
Style: Chimney Style
Venting Type: Convertible
Blower Included: Yes
Width: 47 1/4 Inch
Depth: 27 1/2 Inch
Height: 41 1/4 Inch
CFM: 625 CFM
Dishwasher Safe Filters: Yes
Warranty Terms: 2 years
?
View more
$5,999.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026
Have questions? Chat with us!
Product Information
Brand: Miele
Model: DA4248VD
MPN: DA 4248V D
Warranty Terms: 2 years
?
Appearance
Style: Chimney Style
Type: Hood
Color: Stainless Steel
Mounting Type: Island Mount
Venting Type: Convertible
Blower Included: Yes
Dimensions
Width: 47 1/4 Inch
Depth: 27 1/2 Inch
Height: 41 1/4 Inch
Capacity
CFM: 625 CFM
Features
Dishwasher Safe Filters: Yes
Technical Details
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 28424855USA
EAN: 4002515990162
Are you a Trade Pro? Join Now

Specifications

Overview
Color:
Stainless steel
Customization possible on request:
Yes
Variable height available as special order:
Yes
Recirculated mode:
air extraction
Electronic controls:
Yes
Backlit controls:
Yes
Power levels (number excl. Intensive):
3
Intensive setting:
Yes
Programmable 'Intensive' switch-off:
Yes
Delayed shutdown for 5 or 15 minutes:
Yes
Programmable grease filter saturation indicator:
Yes
Acoustic package:
Yes
Motor-operated cooker hoods:
Yes
EasyClean CleanCover hood liner:
Yes
Miele@home:
Yes
WiFiConn@ct:
Yes
Automatic function Con@ctivity 2.0 (Zigbee):
Yes
Dishwasher-safe stainless steel grease filters:
6
LED ClearView lighting:
Yes
Light intensity in Lx:
600
Color temperature in K:
3,500
Light dimmer function:
Yes
Dual-action blower:
Yes
AC motor:
Yes
Safety shut-off:
Yes
Technical data
Total connected load in kW:
0.51
Voltage in V:
120
Fuse rating in A:
15
Number of phases:
1
Diameter of vent connection in in.(mm):
6 (150)
Dimensions and Weight
Overall hood height for vented and external in:
29 3/4 - 41 1/4
Canopy width in:
47 1/4 (1,198)
Height of hood canopy in:
2 7/8 (70)
Depth of hood canopy in in.:
27 1/2
Minimum distance above electric cooktops in in.:
24 1/8
Minimum height above gas cooktop in:
26
Net weight in lbs. (kg):
109 (49.0)

Features

Con@ctivity
  • Automatic operation for intelligent blower control
CleanCover
  • Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor
Grease Filters
  • Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
Design Variety
  • Clear design, intelligent technology: you can choose between many models and features.
LED ClearView Lighting
  • Environmentally friendly and long lasting: With up to 4.5 W they illuminate the cooktop with a warm light
Automatic 'Intensive' switch-off
  • Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.
Safety turn off
  • Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.
Delayed shutdown
  • Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Motorized canopy
  • Best possible ergonomics The ventilation hood canopy automatically moves to the ideal work position
