Description

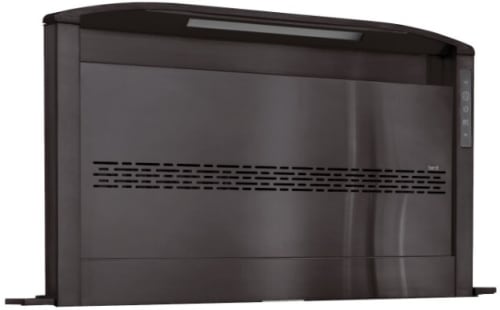

D49M Series 30 Inch Downdraft Ventilation with Multiple Blower Options
Designing a dream kitchen doesn't have to include compromises. With D49M Series, the groundbreaking new downdraft from BEST, you can design confidently, knowing it will pair with a broad range of cooktop appliances-aesthetically and mechanically-in virtually any installation configuration. The BEST D49M Series is designed to be up to 35% quieter than any other downdraft on the market. It also features an impressive LED lightbar that illuminates the entire cooking surface, even pots and pans on the front burners! The seamless glass capacitive-touch control panel easily wipes clean.
Specifications
Product Specifications
Material:
Stainless Steel
Light Bulbs Included:
Yes
Control Type:
Capacitive Touch
Filter Type:
Aluminum Mesh
Remote Operation Capable:
Optional (Sold Separately)
ENERGY STAR® certified:
No
Can be used to comply with LEED Requirements:
Yes
Installation Requirements
Amps @ 120V: Internal Blower:
6 Max
Electrical Connection:
Plug In
Duct Size: Internal Blower:
8"
Duct Size: External Blower:
10"
Duct Direction:
Front, Left, Right, Rear or Down
Backdraft Damper:
Not Included
Dimensions
Minimum Height Above Cook Top:
24"
Approximate Shipping Weight:
75 lb.
Warranty
Features
Multiple Blower Options (Blower Sold Separately)
- Modular Series with choices of internal or external (sold separately) blower systems. Internal features 650 Max Blower CFM with ultra-quiet 0.8 Sones operation at normal setting.
Four-Speed Glass Touch Control
- Four-speed glass touch control is easy to clean and includes convenient 10 minute time-delay shut-off feature and filter maintenance reminder light for a fresh kitchen.
Heat Sentry™
- Heat Sentry® detects excessive heat and adjusts blower speed to high automatically to prolong product life by reducing damaging effects of high temperatures.
Code Ready™ Technology (CRT)
- Code Ready Technology provides capability to reduce CFM level to 400 CFM with PF6 internal blower or 300 CFM with ILB3 external blower to address local codes or make-up air requirements.
2-Level LED Lighting
- 2 level LED lighting (3000K) ensures bright, long-lasting illumination.
Vertex™ Capture Technology
- Up to 100% capture with the use of VERTEX™ Capture technology.
Self-Closing Cap
- The integral, self-closing cap hides the lowered downdraft completely, leaving your counter unobstructed and clear.
Easy-to-Use
- At the touch of a button the downdraft quickly rises to a height of 18" to handle serious cooking ventilation requirements and tall pots - even on the front burners.
Installation Configuration
- Realize design aspirations utilizing your favorite cooking appliances. For the first time, a downdraft can be installed with a free-standing range, gas or electric cooktop, rangetop, slide-in range or a built-in oven with a cooktop.
Quiet Operation
- Quiet operation, 0.8 sones at normal speed with internal PF6 blower (Sold Separately).
Duct Size
- 8" round duct or internal and 10" round duct on external. Backdraft damper not included.
Optional Universal Make-up Air Damper
- Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption.
FlexBlower Options
- FlexBlower can be installed in front, to the left, to the right or rear of the downdraft. Capability to duct directly out of the bottom of the units with virtually zero impact on surrounding cabinets.
Optional Remote Control
- Optional Remote Control allows the busy cook to stay in control from elsewhere in the kitchen.
Additional Features
- 5 Year Parts/2 Year Labor Warranty
