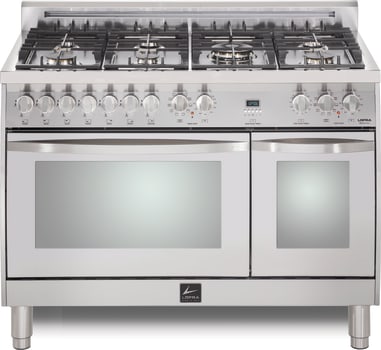

LOFRA Curva CXSD48MMG700 - Curva 48 Inch Stainless Steel Dual-Fuel Range with Stainless Steel Trim
LOFRA Curva CXSD48MMG700 - Curva 48 Inch Stainless Steel Dual-Fuel Range with Stainless Steel Trim
LOFRA Curva CXSD48MMG700 - Brass Burner
LOFRA Curva CXSD48MMG700 - Lifestyle
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LOFRA Curva CXSD48MMG700
Authorized
Dealer

LOFRA Curva
CXSD48MMG700
48 Inch Freestanding Dual Fuel Range with 7 Sealed Brass Burners, Telescopic Shelves, True European Convection, Full-Width Broil Element, and 9 Cooking Modes: Stainless Steel, Stainless Steel Trim

Top Quality Store on Google
Closeout Pricing
Limited Supply
quick specs
Sabbath Mode: No
Fingerprint Resistant: No
Cooktop: Sealed Burner
Drawer: None
Width: 48 Inch
Depth: 25 1/2 Inch
Height: 37 1/4 Inch
Alexa: No
Google Home: No
Number of Burners: 7
Continuous Grates: Yes
Induction: No
Convection: Yes
Self-Cleaning: No
Glide Rack(s): Yes
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: LOFRA
Series: Curva
Model: CXSD48MMG700
Appearance
Fuel Type: Dual Fuel
Fuel Subtype: Natural Gas
Style: Freestanding
Color: Stainless Steel
Fingerprint Resistant: No
Stainless Steel Handle: No
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Double Oven: Yes
Drawer: None
Clock: Yes
Dimensions
Width: 48 Inch
Depth: 25 1/2 Inch
Height: 37 1/4 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Smart Accessory Required: No
Capacity
Number of Burners: 7
Burner
Power Burner: Yes
Burner 1 Output: 12000
Burner 2 Output: 5000
Burner 3 Output: 8000
Burner 4 Output: 8000
Burner 5 Output: 18000
Burner 6 Output: 12000
Burner 7 Output: 8000
Gas Cooktop Features
Continuous Grates: Yes
Grill: No
Electric Cooktop Features
Induction: No
Oven Features
Digital Temperature Display: No
Convection: Yes
Self-Cleaning: No
Racks: 4
Glide Rack(s): Yes
Interior Oven Light: Yes
Air Fry: No
Technical Details
ADA Compliant: No
LP Conversion: Yes - Kit Included
Amps: 40
Voltage: 240 Volts
GTIN
UPC: 8022389019956
Are you a Trade Pro? Join Now

Description

48 Inch Freestanding Dual Fuel Range with 7 Sealed Brass Burners
The Curva Series is an innovative insight, expressed in the soft movement of a dynamic curve. A design of great personality that combines the strength of the steel with a gentle and graceful line. The doors are made up of three panels of glass, creating a semi-sealed chamber and a second chamber with an air current. It dramatically reduces the external surface temperature of the oven ensuring safety and reducing energy consumption. Cooling fans prevent hot air from damaging the range controls. Cold air enters the oven door from below and warm air vents out through a slot above the handle.

Specifications

Overview
Fuel Type:
Dual Fuel
Control Type:
Knob
Cooktop:
Sealed Burner
Color/Finished:
Stainless Steel
Continuous Grates:
Yes
Clock and Timer:
Digital & Programmable
Number of Burners:
5
Cooktop Features
Burner 1:
12,000 BTU
Burner 2:
5,000 BTU
Burner 3:
8,000 BTU
Burner 4:
8,000 BTU
Burner 5:
18,000 BTU
Burner 6:
12,000 BTU
Burner 7:
8,000 BTU
Warranty
Electrical
Voltage:
120/240 Volt 60Hz
Ampere:
40 Amp
Power Rating:
3750W (Main Oven)
Power Rating:
2500W (Side Oven)
Dimensions & Weight
Width:
48
Depth:
25 1/2
Height:
35 1/2 to 37 1/4
Weight:
250 lbs.

Features

Triple Tempered Glazed Oven Door
  • Made up of three panels of glass, creating a semi-sealed chamber and a second chamber with an air current dramatically reducing the external surface temperature.
Telescopic Shelves Supports
  • Special guides prevent the overturning of trays, grilles, and spits with a load of up to 33 pounds, while also permitting easy access for turning and basting.
Cooling Fan
  • Prevents hot air from damaging the range controls. Cold air enters the oven door from below and warm air vents out through a slot above the handle.
Grease Filter
  • The grease filter ensures that the oven cavity is always clean.
Additional Features
  • 7 Sealed Brass Burners
  • 1 Dual Crown Burners
  • Under Knob One - Touch Ignition
  • Gas Shutoff Safety System
  • Large Multifunction Convection Oven: 9 Cooking Modes
  • Full-Width Broil Element
  • Bake Element
  • True European Convection
  • 2 Oven Lights, Main Oven
  • 3 Panel, Removable Glass Oven Door
  • Easy Removable Glass for Cleaning
  • Easy Telescopic Glide Shelves
  • 1 Easy Glide Telescopic Shelves
  • 1 Enamel Oven Drip Tray
  • Ventilated Doors with Cooling System
  • Heavy Duty Cast Iron Grids
  • 1 Oven Light, Side Oven
  • Heavy Duty Oven Rack
  • Convertible to LP Gas Kit Included
