Summit CR5B274W
Authorized
Dealer

Summit
CR5B274W
27 Inch Electric Cooktop with 5 Burner Elements, Glass Ceramic Surface, Radiant Burners, E.G.O. Burners, Push-to-Turn Knobs, Indicator Lights, Stainless Steel Trim, and 230V Operation: White

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 5
Style: Smoothtop
Type: Drop-In
Control Type: Knobs
Downdraft Venting: No
Actual Width: 27 Inch
WiFi: No
Bluetooth: No
Simmer Burner: Yes
Grill: No
Griddle: No
Hot Surface Indicator Light: Yes
Induction: No
View more
Color: White
Black
Black
CR5B273B
$1,009.00
In stock
White
White
CR5B274W
$1,199.00
In stock
$1,199.00
MSRP: $1,485.00
You save $286.00
OR
Buy more & save up to $900
See all eligible items
2
$100
3
$200
4
$300
5
$400
6
$500
7
$600
8
$700
9
$800
10
$900
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Summit Buy More Save More! Up to $900 Instantly! Expires 12/31/2026
Have questions? Chat with us!

You Might Also Like

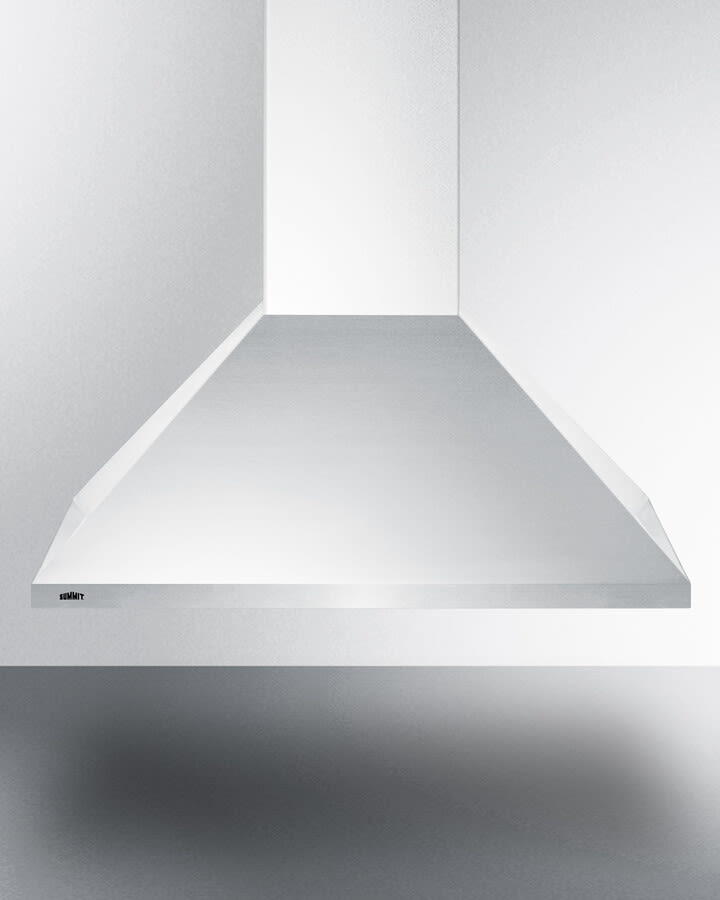

Wall Mount Convertible Range Hood
Summit
Wall Mount Convertible Range Hood
$569.00
1.6 cu. ft. Over-the-Range Microwave Oven
Summit
1.6 cu. ft. Over-the-Range Microwave Oven
$549.00
Product Information
Brand: Summit
Model: CR5B274W
Appearance
Fuel Type: Electric
Number of Burners: 5
Style: Smoothtop
Type: Drop-In
Control Type: Knobs
Color: White
Glass Surface: Yes
Fingerprint Resistant: No
Downdraft Venting: No
Dimensions
Actual Width: 27 Inch
Actual Depth: 20 1/2 Inch
Actual Height: 3 13/100 Inch
Cutout Width: 25 1/4 Inch
Cutout Depth: 18 3/4 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Bluetooth: No
Burner
Simmer Burner: Yes
Burner 1 Output: 1800
Burner 2 Output: 1200
Burner 3 Output: 1200
Burner 4 Output: 1200
Burner 5 Output: 1200
Gas Cooktop Features
Grill: No
Griddle: No
French Top: No
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Technical Details
ADA Compliant: No
Voltage: 230 Volts
GTIN
UPC: 761101060330
EAN: 0761101060330
Are you a Trade Pro? Join Now

Description

27 Inch Electric Cooktop with 5 Burner Elements
SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements. The CR5B274W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte black finish to complete the look. Each burner includes an indicator light. The smooth surface is made from ceramic Schott glass in a jet black finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304-grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B274W can fit in cutouts 25 1/4" W x 18 3/4" deep. Designed and manufactured in the USA, the CR5B274W is the perfect way to finish any small kitchen space.

Specifications

PRODUCT DETAILS
Fuel Type:
Electric
Heating Type:
Radiant
Surface:
Glass
Element Type:
Glasstop
Number of Elements:
5
Controls:
Knobs
ELECTRICAL SPECIFICATIONS
Volts:
230V
Amps:
21A
Frequency:
60Hz
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
WARRANTY
Parts and Labor:
1 Year
WEIGHTS & DIMENSIONS
Shipping Weight:
40 lbs
Product Weight:
35 lbs
Height of Cabinet:
3 13/100"
Width:
27"
Depth:
20 1/2"
Countertop Cutout Width:
25 1/4"
Countertop Cutout Depth:
18 3/4"
Element #1 Size:
8"
Element #2 Size:
6 1/2"
Element #3 Size:
6 1/2"
Element #4 Size:
6 1/2"
Element #5 Size:
6 1/2"

Features

Unique 27-Inch Width
  • Designed to fit 25 1/4" W x 18 3/4" D cutouts, ideally sized for many hard-to-fill cutouts.
High Output Burner
  • Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels.
Push-to-Turn Knobs
  • Controls require a gentle push to help prevent cooking accidents.
Stainless Steel Trim
  • Stainless steel border adds an extra touch of style.
Schott Ceran Surface
  • Smooth ceramic glass cooking surface in a sleek black finish.
Standard Burners
  • Four 6.5" 1200W burners meet most heating needs.
E.G.O. Burners
  • Considered by many to be the industry's best cooking technology.
Indicator Lights
  • Each burner includes an indicator light to show when the unit is on.
230V Operation
  • Requires professional hardwired installation to a 230V power supply.
