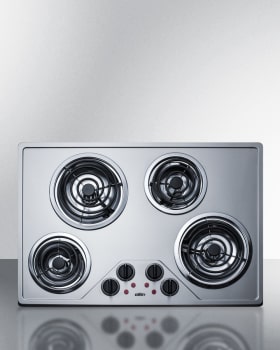

Summit CR430SS - Front View
Summit CR430SS - Front View
Summit CR430SS - Angle View

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Summit CR430SS
Authorized
Dealer

Summit
CR430SS
30 Inch Electric Cooktop with 4 Coil Burners, Removable Chrome Drip Pans, Push-to-Turn Knobs, Upfront Controls, Indicator Lights and ADA Compliant

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 4
Style: Coil
Type: Drop-In
Control Type: Knobs
Downdraft Venting: No
Actual Width: 29 19/50 Inch
Continuous Grates: No
Grill: No
Griddle: No
Hot Surface Indicator Light: Yes
Induction: No
View more
$549.00
MSRP: $705.00
You save $156.00
OR
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: Summit
Model: CR430SS
Appearance
Fuel Type: Electric
Number of Burners: 4
Style: Coil
Type: Drop-In
Control Type: Knobs
Color: Stainless Steel
Glass Surface: No
Downdraft Venting: No
Dimensions
Actual Width: 29 19/50 Inch
Actual Depth: 20 Inch
Actual Height: 2 63/100 Inch
Cutout Width: 28 Inch
Cutout Depth: 19 1/2 Inch
Shabbos Compliance
Sabbath Mode: No
Burner
Burner 1 Output: 1800
Burner 2 Output: 1200
Gas Cooktop Features
Continuous Grates: No
Grill: No
Griddle: No
French Top: No
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Technical Details
ADA Compliant: Yes
Amps: 20
Voltage: 230 Volts
GTIN
UPC: 761101058689
Are you a Trade Pro? Join Now

Description

30 Inch Electric Cooktop with 4 Coil Burners
Sized at a traditional 30" wide, the CR430SS is a 230V cooktop with four coil elements. The convenient layout puts a large 1800W burner in the front right side and rear left side, with two standard 1200W elements ensuring the perfect setup to cook multiple dishes with efficiency. Each burner includes a removable chrome drip bowl for easy cleanup.

The CR430SS comes in a stainless steel finish, ideal for matching any home or hotel kitchen style. The push-to-turn knobs are centrally located for easy and safer use, eliminating any need to reach over hot burners to adjust the temperature. Indicator lights help to identify which burners are in use. With its attractive style and user-friendly layout, this is the perfect cooktop for completing your kitchen at a friendly price.

Note: Designed to fit standard cutouts, the CR430SS is designed for professional installation and does not include a cord.

Specifications

Overview
Heating Type:
Radiant
Surface:
Stainless Steel
Element Type:
Coils
Number of Elements:
4
Controls:
Dial
Countertop Cutout Width:
28"
Countertop Cutout Depth:
19.5"
Element #1 Size:
8"
Element #1 Wattage:
1800
Element #2 Size:
6"
Element #2 Wattage:
1200
Element #3 Size:
8"
Element #3 Wattage:
1800
Element #4 Size:
6"
Element #4 Wattage:
1200
Certifications
ADA Compliant:
Yes
Electrical Specifications
Amps:
20A
Volts:
230V
Frequency:
60 Hz
Warranty
Parts & Labor:
1 Year
Dimensions & Weights
Height of Cabinet:
2 63/100"
Depth:
20"
Width:
29 19/50"
Weight:
10 Lbs.
Shipping Weight:
46 Lbs.

Features

4 Coil Burners
  • The front left and rear right elements are 6" wide and cook at 1200W, perfect for handling smaller dishes.
  • Located in the front right and rear left, the 8" wide 1800W elements are ideal for heating larger cooking vessels.
Removable Chrome Drip Pans
  • Drip pans help to contain spills and can be removed for easy cleaning.
Push-to-Turn Knobs
  • Prevents accidents by requiring a small amount of force to turn on cooktop heat.
Upfront Controls
  • Upfront controls make it easy to manage your cooking without reaching over hot burners.
Indicator Lights
  • Individual lights for each burner allow you to easily see which zone is in use for added safety when cooking.
Certifications
  • ADA Compliant
