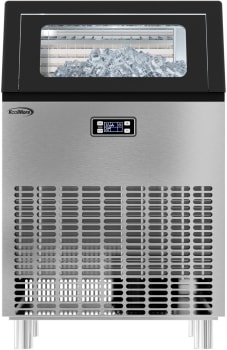

Koolmore CIM198 - 22 Inch Undercounter Commercial Ice Maker
Koolmore CIM198 - 22 Inch Undercounter Commercial Ice Maker
Koolmore CIM198 - 22 Inch Undercounter Commercial Ice Maker
Koolmore CIM198 - 22 Inch Undercounter Commercial Ice Maker
+8

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Koolmore CIM198
Authorized
Dealer

Koolmore
CIM198
22 Inch Undercounter Commercial Ice Maker with 265 lbs Daily Production, 55 lbs Storage Capacity, Gravity Drainage, Adjustable Ice Thickness, LCD Control Panel, and ETL Listed: 198 lbs/ 24hr

Top Quality Store on Google
quick specs
Undercounter: Yes
Width: 21 9/10 Inch
Depth: 17 1/10 Inch
Height: 32 4/5 Inch
Daily Ice Production: 198 Lbs.
Type of Cubes: Square
Ice Storage: 55 Lbs.
WiFi Connected: No
View more
Configuration: 198 lbs/ 24hr
198 lbs/ 24hr
198 lbs/ 24hr
CIM198
$1,230.00
256 lbs/ 24hr
256 lbs/ 24hr
CIM265
$1,455.00
In stock
$1,230.00
MSRP: $1,365.00
You save $135.00
OR
You Will Also Need:
6 Foot Stainless Steel Refrigerator Waterline Kit
+ $24.99
Have questions? Chat with us!
Product Information
Brand: Koolmore
Model: CIM198
Appearance
Type: Freestanding
Color: Stainless Steel
Door Color: Stainless Steel
Cabinet Color: Black
Undercounter: Yes
Accepts Custom Panels: No
Dimensions
Width: 21 9/10 Inch
Depth: 17 1/10 Inch
Height: 32 4/5 Inch
Features
Daily Ice Production: 198 Lbs.
Type of Cubes: Square
Ice Storage: 55 Lbs.
WiFi Connected: No
Countertop: No
Soft Close: No
Technical Details
Energy Star Rated: No
ADA Compliant: No
Drain Required: Yes
Approved for Outdoor Use: No
Approved For Commercial Use: Yes
Amps: 5
Voltage: 115 Volts
GTIN
UPC: 810019861567
EAN: 0810019861567
Are you a Trade Pro? Join Now

Description

22 Inch Undercounter Commercial Ice Maker with 265 lbs Daily Production
Whether you own a small bar in your local neighborhood, need to keep drinks flowing in your restaurant, or enjoy hosting large gatherings at your home, nothing beats the reliability and ice production of a Koolmore Undercounter Ice Maker.

A free-standing ice-making machine produces up to 198 pounds of ice per day.

Able to store up to 55 lbs. on its ice storage bin, you can scoop it out, bag it up, or add it to fresh cocktails with less effort.

Designed to meet strict operational standards, including ETL electrical current requirements, this commercial unit is perfect for home, bar, restaurant, and event use.

An included ice scoop to help you remove small amounts of ice for drinks or to fill up bags for use with coolers or events.

Specifications

Overview
Model#:
CIM198
Certifications:
ETL Listed for Safety and Sanitation
Length:
21.9
Width:
17.1
Height:
32.8
Interior Depth:
19.7
Interior Width:
13.4
Interior Height:
19.7
Weight:
77.2
Ambient Temperature Range:
50-110 F
Removable Bin Baskets:
No
Ice Storage Capacity Lb:
55 lbs.
Number Of Possible Ice Cube Shapes:
1
Number Of Possible Ice Cube Sizes:
1
Door Style:
Vertical Swing
Reversible Door:
No
Interior Lights:
LED
Interior Lights Location:
Upper Left Interior
Color Finish:
Black and Stainless-Steel
Exterior Material:
Stainless-Steel and Cold-Rolled Sheet
Interior Material:
HIPS Polymer
Interior Cabinet Insulation:
Foam
Storage Bin Insulation:
Yes
Number Of Functions:
1
Refrigerant Type:
R-290
Cooling Unit Type:
Static
Drain Type:
Gravity drainage
Ice Type:
Cube
Noise:
50 dB
Sabbath Mode:
No
Control Type:
Digital
Filtered Ice:
No
Ice Production Per Day Lb:
198 lbs.
Cycle Length Mins:
13-20min
Overfill Protection:
Yes
Ice Scoop Included:
Yes
Ice Scoop Material:
ABS Plastic
Ice Bin Full Indicator:
Yes
Interior Ice Scoop Hook:
Yes
Automatic Shut Off:
Yes
Clean Cycle:
Automatic
Diameter Of Water Line Connection:
0.25 in.
Drain Required:
Yes
Number of Feet:
4
Feet Adjustable:
Yes, 0.6 in.
Amps:
4.4A
Hertz:
60
Phase:
1
Voltage:
115V
Wattage:
480
Plug Type:
NEMA 5-15P
Power Cord Length:
70
Installation Type:
Freestanding
Annual Energy Consumption:
5811 KWH/year
UPC:
810019861567

Features

High-Capacity Ice Production
  • This unit delivers up to 198 lbs. of crescent-shaped ice per day with a 55-lb. built-in storage bin, making it ideal for commercial kitchens, cafés, or bars that need a steady ice supply throughout the day.
Adjustable Ice Thickness
  • The control panel allow you to easily adjust the ice cube thickness to meet different preferences and usage scenarios—great for food service, drink cooling, or buffet displays
LCD Control Panel
  • LCD control panel to monitor water and ice-making functions
Additional Features
  • Gravity Drainage
  • ETL Listed
