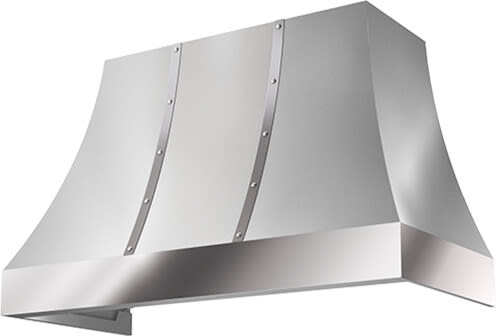

Zephyr ALTO Series CHAL48ASX - Alto Wall Custom Hood
Zephyr ALTO Series CHAL48ASX - Alto Wall Custom Hood
Zephyr ALTO Series CHAL48ASX - Alto Wall Custom Hood
Zephyr ALTO Series CHAL48ASX - Alto Wall Custom Hood
+9

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr ALTO Series CHAL48ASX
Authorized
Dealer

Zephyr ALTO Series
CHAL48ASX
Wall Custom Hood with Polished Stainless Steel Banding, Optional 12" Duct Cover, Optional Hood Banding Kit, Optional Duct Cover Banding Kit, and Compatible Hood Inserts (Sold Separately): 48 Inch Width

Top Quality Store on Google
quick specs
Style: Canopy Pro Style
Blower Included: No
Blower Type: Sold Separately
Width: 47 7/8 Inch
Depth: 22 1/16 Inch
Height: 30 Inch
WiFi: No
View more
Size: 48 Inch Width
36 Inch Width
36 Inch Width
CHAL36ASX
$2,299.00
48 Inch Width
48 Inch Width
CHAL48ASX
$2,499.00
$2,499.00
MSRP: $2,799.00
You save $300.00
OR
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: ALTO Series
Model: CHAL48ASX
Appearance
Style: Canopy Pro Style
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Blower Included: No
Blower Type: Sold Separately
Dimensions
Width: 47 7/8 Inch
Depth: 22 1/16 Inch
Height: 30 Inch
Smart
WiFi: No
Smart Accessory Required: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
CEE Rating: Not Available
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

Alto Wall Custom Hood
Create a distinctive kitchen focal point with the Zephyr Alto Wall Custom Hood. Its sculpted stainless steel enclosure features included polished stainless steel banding, with optional Polished Gold or Polished Copper banding kits to complement your cabinetry, hardware, and fixtures. Pair Alto with a compatible Zephyr hood insert to suit your ventilation needs, and complete the look with an optional 12" duct cover. Stackable duct covers accommodate taller ceilings for a coordinated finish.

Hood enclosure only. A compatible Zephyr hood insert is required and sold separately. Duct covers and optional banding kits are sold separately.

Specifications

Overview
Brand:
Zephyr
Model:
CHAL48ASX
Collection:
Designer
Series:
Alto
Product Type:
Custom Hood Enclosure
Installation Type:
Wall Mount
Nominal Width:
48"
Material:
Stainless Steel
Included Banding Finish:
Polished Stainless Steel
Hood Insert:
Required; Sold Separately
Duct Cover:
Optional; Sold Separately
Dimensions and Weight
Width:
47 7/8"
Depth:
22 1/16"
Height Without Duct Cover:
30"
Net Weight:
54 lbs
Mounting Height Above Cooking Surface:
24"–36"
Optional Duct Cover Height:
12"
Stackable Duct Covers:
Yes
Compatible Hood Inserts
Monsoon Mini II:
AK9546AS
Monsoon I:
AK9246CS
Monsoon Connect:
AK9446BS
Installation
Vertical Ducting:
Supported; Refer to Selected Insert Requirements
Horizontal Ducting:
Supported; Refer to Selected Insert Requirements
Electrical Requirements:
Refer to Selected Hood Insert
Optional Parts and Accessories
12" Duct Cover with Polished Stainless Steel Banding:
DC24812AS
Hood Banding Kit in Polished Gold Finish:
BKAL48APG
Hood Banding Kit in Polished Copper Finish:
BKAL48APC
Duct Cover Banding Kit in Polished Gold Finish:
BKDC212APG
Duct Cover Banding Kit in Polished Copper Finish:
BKDC212APC
Stainless Steel Telescopic Backsplash:
AK1718
Warranty
Parts Warranty:
2-Year Limited

Features

Distinctive Stainless Steel Design
  • A sculpted stainless steel enclosure creates a striking focal point above your cooking surface, with polished stainless steel banding included for a coordinated finish.
Customizable Banding Finishes
  • Personalize your hood with optional Polished Gold or Polished Copper banding kits to complement your kitchen hardware and fixtures.
Compatible Zephyr Hood Inserts
  • Pair with select Monsoon Mini II, Monsoon I, or Monsoon Connect inserts to suit your ventilation needs. The 36" model also accommodates a select Monsoon Mini insert. A compatible insert is required and sold separately.
Optional Stackable Duct Covers
  • Complete your installation with an optional 12" duct cover featuring polished stainless steel banding. Duct covers can be stacked to accommodate taller ceilings.
Coordinating Duct Cover Banding
  • Optional Polished Gold or Polished Copper duct cover banding kits let you carry your selected finish from the hood through the duct cover.
Two-Year Limited Parts Warranty
  • The Alto hood enclosure is backed by a two-year limited parts warranty.
