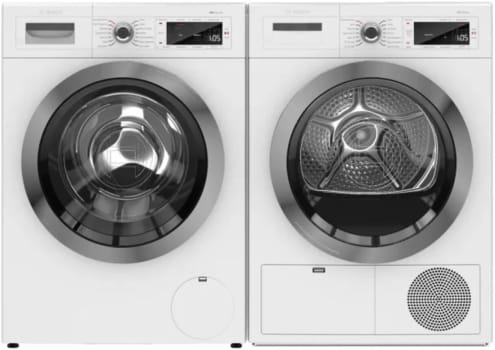

Bosch 800 Series BSWADREW85651 - Side by Side
Bosch 800 Series BSWADREW85651 - Side by Side
Bosch 800 Series BSWADREW85651 - Side View
Bosch 800 Series BSWADREW85651 - 24 Inch Compact Condensation Dryer
+18

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Bosch 800 Series BSWADREW85651
Authorized
Dealer

Bosch 800 Series
BSWADREW85651
Side-by-Side Washer & Dryer Set with Front Load Washer and Electric Dryer in White

Top Quality Store on Google
Save $550!
included items
24 Inch Front Load Smart Washer (WAW285H2UC)
• Wi-Fi, Home Connect, SpeedPerfect™
24 Inch Electric Smart Dryer (WTG865H4UC)
• 4.0 Cu. Ft. Capacity, Home Connect™, Ventless Installation
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
  • 24 Inch Front Load Smart Washer
    WAW285H2UC
  • 24 Inch Electric Smart Dryer
    WTG865H4UC
Product Information
Brand: Bosch
Series: 800 Series
Model: WAW285H2UC
Appearance
Type: Front Load
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 1/2 Inch
Depth: 25 Inch
Height: 33 1/4 Inch
Capacity: 2.2 Cu. Ft.
Smart
WiFi: Yes
Alexa: Yes
Google Home: No
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
Dash Replenishment: Yes
App Integration: Home Connect, Amazon Alexa, Android, iOS, Nest
Smart Accessory Required: No
Features
Control Type: Digital and Knobs
Bleach Dispenser: Yes
Stainless Steel Drum: Yes
Maximum Spin Speed (RPM): 1,400
Reversible Door: No
Interior Light: No
Includes Hoses: Yes
Water Heater: Yes
Usage: Residential
Cycles
Wash Cycles: 14
Steam Cycle: No
Sanitize Cycle: Yes
Allergy Cycle: No
Add Wash: No
Technical Details
Energy Star Rated: Yes
ADA Compliant: Yes
Amps: 20
Voltage: 240/208 Volts
GTIN
UPC: 825225937449
EAN: 0825225938583
Are you a Trade Pro? Join Now

Description

24 Inch Compact Washer with Home Connect
This compact washing machine from Bosch is made to wash necessary clothes in a pinch. There is a quick 15 minute wash for clothing that is needed right away for a night out. The EcoSilence Motor™ delivers quiet, efficient & long lasting performance with its 50 dBA silence level. With its wi-fi capability, you're able to control your unit remotely from a smartphone or tablet. This wireless versatility also allows for features such as voice control where you can access the appliance with simple voice commands. This energy efficient unit has a automatic load adjustment function to reduce both energy and water consumption. There are built in stains programs to treat tough items like oil, red wine, and grass. The SpeedPerfect™ provides up to 40% faster washing time, make this unit ideal multiple quick loads of laundry.

Specifications

Capacity
Capacity (cu. ft.):
2.2
General Properties
Tub Material:
Stainless Steel
Maximum Spin Speed (rpm):
1,400
Interior Light:
Yes (LED)
Leak Protection Systems:
AquaStop® Plus (AquaStop® Base + Aquashield® Hose)
Internal Water Heater:
Yes
Stackable:
Yes with Stacking Kit Accessory
Silence Level - Washing (dBA):
50
Silence Level - Spinning (dBA):
71
Programs (No.), [Special]:
(14), [Super Quick 15, Whitest Whites]
Options (No.), [Special]:
(10), [Remote Start, EcoPerfect™, Stains]
Energy Consumption (kWh/yr):
84
Water Consumption (gal/y):
2,379
ENERGY STAR® Certified:
Yes
ADA Compliant:
Yes
Design Elements
Door Ring:
Chrome
Control Type:
Premium LED Touch
Dial:
Illuminated Jog Dial
Bosch Logo On Door Glass:
Yes
Technical Details
Watts (W):
2,520
Circuit breaker (A):
15
Volts (V):
208/220-240
Current (A):
10.5
Frequency (Hz):
60
Plug Type:
240V; NEMA 6-15(3 prong)
Power Cord Included:
Yes
Power Cord Length (in):
63 (Full Length)
Drain Hose Length (in):
57 (Full Length)
Inlet Hose Length (in):
59 (Full Length)
Door Hinge:
Left Side (Not Reversible)
Dimensions & Weight
Overall Appliance Dimensions (HxWxD) (in):
33 1/4" x 23 1/2" x 25"
Net Weight (lbs):
160
Minimum Stack Height (in):
67 3/4"
Accessories
Short Stainless Steel Hose (If needed for plumbing box clearance with AQS hose):
P/N 645787

Features

Home Connect
  • The Bosch Home Connect App is a remote control, product manual, shopping assistant, and repair technician all in one. Simply download to your smart device to enjoy greater convenience across all your Bosch appliances.
SpeedPerfect™
  • Provides up to 40% faster washing time.
AquaStop® Plus
  • Leak protection that combines the AquaStop® Base and AquaStop® Hose.
Amazon Alexa
  • Control compatible smart appliances with Amazon Alexa. Simply speak your commands and Alexa will do the work for you.
Remote Monitoring
  • Keep track on if it's time to add the next load of laundry right from your smart device. Remote Monitoring will always keep you in the know
Remote Control
  • Use your smart device as a remote control to control appliance functions, whether you're home, in the office, or on the road.
Nest Integration
  • Integrate your Nest products with your connected appliances to give you peace of mind. Keep an eye on your appliances while you're away, receive a notification if your oven is still running, or turn off your appliances remotely.
EcoSilence Motor™
  • Delivers quiet, efficient, and long lasting performance.
14 Wash Cycles
  • Cycles to fit all your need from heavily soiled clothes to delicates and everything in between.
10 Wash Options
  • Additional wash options to fine tune the laundry process.
Certifications
  • ADA Compliant
  • ENERGY STAR® Rated
Capacity
  • 2.2 cu. ft. Capacity
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Guide
User Manual
Installation Instructions
Home Connect Instruction Guide
Energy Guide
Product Information
Brand: Bosch
Series: 800 Series
Model: WTG865H4UC
Appearance
Type: Front Load
Fuel Type: Electric
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 1/2 Inch
Depth: 25 Inch
Height: 33 1/4 Inch
Capacity: 4 Cu. Ft.
Smart
WiFi: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
Dash Replenishment: Yes
App Integration: IFTTT
Smart Accessory Required: No
Features
Control Type: Digital and Knobs
Cycles: 14
Options: 9
Temperature Settings: 4
Stainless Steel Drum: Yes
Reversible Door: Yes
Dry Rack: No
Extra Large Lint Filter: No
Venting Type: Ventless
Heating Element: Condenser
Interior Light: Yes
Voice Assistant: Yes
Leveling Legs: Yes
Usage: Residential
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Home Connect™, Amazon Alexa, Google Assistant
Remote Access: Yes
Cycles
Wrinkle Control Cycle: Yes
Steam Cycle: No
Sanitize Cycle: Yes
Sensor Dry: Yes
Technical Details
Energy Star Rated: Yes
CEE Rating: Not Available
ADA Compliant: Yes
NSF Certified: No
Amps: 30
Voltage: 240 Volts
GTIN
UPC: 825225963141
EAN: 0825225963141
Are you a Trade Pro? Join Now

Description

24 Inch Electric Smart Dryer with 4.0 Cu. Ft. Capacity
Make laundry day easier with this Bosch 800 Series electric dryer. The 4-cu. ft. capacity fits large loads and your laundry room footprint, and the 14 cycles let you dry a variety of clothing. This Bosch 800 Series electric dryer is easy to install and has an intuitive Premium Large Touch Control Display that makes operation simple.

Specifications

Capacity
Capacity (cu. ft.):
4
General Properties
Dryer Type:
Condensing
Drum Material:
Stainless Steel
Interior Light:
Yes (LED)
Ventless Drying (No Ducting):
Yes
Stackable:
Yes with STacking Kit Accessory
Silence Level (dBA):
63
Programs (No.), [Special]:
(14), [Super Quick 15, Anti Shrink]
Options (No.), [Special]:
(8), [Remote Start, Dryness Level]
Energy Consumption (kWh/yr):
315
Energy Star Qualified:
Yes
Design Elements
Door Ring:
Chrome
Control Type:
Premium LED Touch
Dial:
Illuminated Jog Dial
Bosch Logo On Door Glass:
Yes
Technical Details
Energy Source:
Electric
Watts (W):
2,520
Circuit Breaker (A):
15
Volts (V):
208/220-240
Current (A):
10.5
Frequency (Hz):
60
Plug Type:
240V; NEMA 6-15 (3 Prong)
Power Cord Included:
Yes
Power Cord Length (in):
63 (Full Length)
Drain Hose Length (in):
78 (Full Length)
Door Hinge:
Right Side (Reversible)
Dimensions and Weights
Overall Appliance Dimensions (HxWxD) (in):
33 1/4" x 23 1/2" x 25"
Net Weight (lbs):
99
Minimum Stack Height (in):
67 3/4

Features

Home Connect™
  • App allows you to operate dryer from anywhere in the home.
Remote Monitoring
  • Keep track of what's in the fridge from your grocer's aisle, how much time is left on that roast in the oven, or if it's time to add the next load of laundry right from your smart device.
Remote Control
  • Use your smart device as a remote control to control appliance functions, whether you're home, in the office, or on the road.
4 Cu. Ft. Capacity
  • The 4.0 cu. ft. drum has large capacity to fit a variety of loads.
Capacity
  • Dries up to 17.6 lbs or 18 bath towels.
14 Drying Programs
  • SuperQuick 15, Permanent Press, Jeans, Delicates, Cotton, Towels, Time Dry, Quick 40, Anti Shrink, Sanitize, Quick Dry Auto, Hand Wash/Wool, Bulky Large Items, Air Fluff.
9 Options
  • Low Heat, Time Dry, Remote Start, Start/Pause, Finish in, Level Adjust, Dryness Level, End Signal, Wrinkle Block.
Easy Start Option
  • For your dry cycle.
Premium Large Touch Control Display
  • The sleek design is apparent in the larger LED control panel which is easy to read and operate.
Reversible Door
  • Allows you to access laundry from the right or the left.
63 dBA Silence Level
  • Runs quietly to keep your home peaceful with a low decibel level.
  • Anti-vibration circular side walls reduce vibration to keep dryer running at a low volume of 63 db(A).
Stainless Steel Structured Drum
  • Resists rust and helps protect clothes.
ENERGY STAR® Certified
  • Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings.

Additional Features

  • Interior LED Drum Light
  • Clear Glass Window with Bosch Magneto
  • Energy Consumption 315 kWh/year

Design

  • White Cabinet with Chrome Illuminated Selection Dial and Chrome Door Ring
