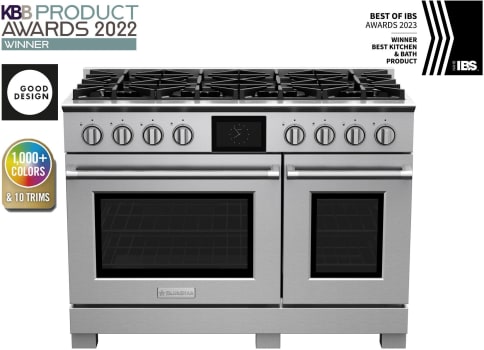

48 Inch Freestanding Dual Fuel Range with 8 Sealed Burners
The next revolution in home cooking has arrived! Introducing the new BlueStar® Dual Fuel Range Series, selected Best New Kitchen Appliance at the 2023 IBS Show, offering the new X-8™ burners and precise electric oven. It also features an intuitive color 7-inch touchscreen control that allows you to start cooking with 3 easy touches, as well as an environmentally friendly, gentle 90-minute express cleaning mode and ContinuClean™ technology. You can also customize this range with over 1000 colors and 10 metal trim finishes to suit your style.

Specifications

Additional Specs

Top Burner Rating (Front):

Nat: 25,000 BTUs / LP: 24,000 BTUs

Top Burner Rating (Rear):

18,000 BTUs

Simmer Burner Rating:

600 BTUs

Bake Element Rating:

3500W (2500W Inner/ 1000W Outer)

Sm Oven Bake Element Rating:

2800W

Broiler Rating:

5000W (2500 Inner / 2500W Outer)

Large Oven Convection Element Rating:

2800W

Operating Gas Pressure:

Nat: 5"WC / LP: 10"WC

Gas Line Size:

3/4"

Installation Clearance (Below Counter):

0" side cabinet | 0" back wall

Installation Clearance (Above Counter):

6" side cabinet

Door Clearance:

20" from the front of the door

Electrical Specifications

Volts:

240V

Amps:

50A

Frequency:

60Hz

Note:

Unit must be on a Non-GFI, dedicated outlet

Dimensions

Overall Width:

47 7/8"

Overall Depth:

26 1/2"

Overall Height:

36"

Large Oven Interior:

26 1/4"W x 20"D x 16 5/8"H

Small Oven Interior:

14 1/8"W x 20"D x 16 5/8"H

Backguard Options

BG648DF:

6" Backguard for 48" Dual Fuel Series

SDHS48DF:

24" High Shelf for 48" Dual Fuel Series

Knob & Painted Body Side Options: (Total Knobs 8)

SIDES-C:

Add Painted Sides (All colors)

KN-BLK:

Standard Black Knob (Ordered with the unit)

KN-C:

Knob: Standard 190 RAL Color

BZ-C:

Bezel: Standard 190 RAL Color

KN-CF:

Knob: Spec Finish (Matte RAL, Textured RAL, or Prec Metals)

KN-PLT:

Knob: Plated Trim

Plated Trim Options: (Includes bezels, door handle, handle ends, and logo)

Colors:

Antique Brass, Brushed Brass, Polished Brass, Antique Copper, Brushed Copper, Polished Copper, Chrome, Oil Rubbed Bronze & Pewter

Features

Exclusive X-8™ Star-Shaped Sealed Burners

Offer unmatched versatility and control on every burner, from extra-high sear - up to 25,000 BTUs in NG and 24,000 BTUs in LP - to an ultra-low warm of 500 BTUs on all burners.

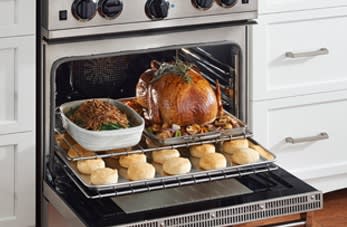

True Convection Oven

Oversized True Convection electric ovens that offer even and consistent multi-rack cooking

8 Cooking Modes

Including Bake, Convect Bake, Roast, Convect Roast, Convect, Broil, Proof, and Dehydrate, plus Sabbath setting and temperature probe.

7" Touchscreen Control

Intuitive color 7" touchscreen control with Quick Start™ cooking in 3 easy touches.

Cleaning Mode

Environmentally friendly, gentle 90-minute express cleaning mode + Continu Clean™ technology.

Customization

Range Colors

Select from 1,000+ colors and finishes to coordinate with your other appliances. Or, send us a sample of your favorite color and we will create a custom color for a look that is uniquely your own.

Knob Colors

Add a pop of color to your kitchen with colored knobs. Choose from 190 color options or even design a custom color.

Trim Options

Choose from 10 metal trim options like brushed brass and copper to add a unique richness and warmth to your kitchen.

A full selection of finishes includes stainless steel, antique brass, antique copper, polished copper, polished brass, brushed brass, brushed copper, chrome, pewter, and oil-rubbed bronze.

Backguards

Choose from three available backguard options: Island Trim, 6" and 24".

Key Features

Continu Clean™

The innovative, eco-friendly Continu Clean™ system keeps your oven cleaner without the need for extreme heat or harsh chemicals. It activates every time the oven is used, eliminating the need for a separate cleaning cycle and saving you time and effort.

Quick Start™ Cooking
