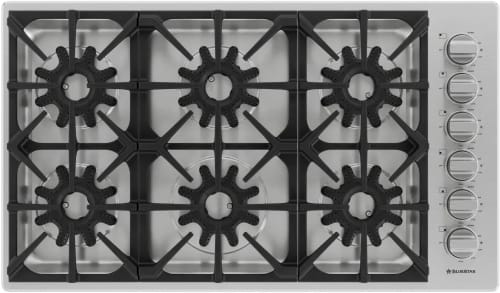

BlueStar X-8™ BURNER BSDCTX8366BLPLT - 36 Inch Cooktop with 6 X-8™ Sealed Burners
BlueStar X-8™ BURNER BSDCTX8366BLPLT - 36 Inch Cooktop with 6 X-8™ Sealed Burners
BlueStar X-8™ BURNER BSDCTX8366BLPLT - 36 Inch Cooktop with 6 X-8™ Sealed Burners
BlueStar X-8™ BURNER BSDCTX8366BLPLT - 36 Inch Cooktop with 6 X-8™ Sealed Burners
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
BlueStar X-8™ BURNER BSDCTX8366BLPLT
Authorized
Dealer

BlueStar X-8™ BURNER
BSDCTX8366BLPLT
36 Inch Cooktop with 6 X-8™ Sealed Burners, 1 - 25,000 BTU Power Burner, 5 - 14,000 BTU Burners, Low 500 BTU Setting on Every Burner and Professional Grade Continuous Cast Iron Grates: Stainless Steel with Plated Trim - Liquid Propane

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 6
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Downdraft Venting: No
Actual Width: 36 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Continuous Grates: Yes
Grill: No
Griddle: No
Warranty Terms: 2 years
?
View more
Color & Gas: Stainless Steel with Plated Trim - Liquid Propane
Stainless Steel with Brushed Stainless Steel Trim - Natural Gas
Stainless Steel with Brushed Stainless Steel Trim - Natural Gas
BSDCTX8366B
$3,295.00
Stainless Steel with Brushed Stainless Steel Trim - Liquid Propane
Stainless Steel with Brushed Stainless Steel Trim - Liquid Propane
BSDCTX8366BL
$3,295.00
In stock
Stainless Steel with Plated Trim - Natural Gas
Stainless Steel with Plated Trim - Natural Gas
BSDCTX8366BPLT
$4,590.00
Stainless Steel with Plated Trim - Liquid Propane
Stainless Steel with Plated Trim - Liquid Propane
BSDCTX8366BLPLT
$4,590.00
$4,590.00
MSRP: $5,280.00
You save $690.00
OR
Special Order 6 - 8 weeks
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Have questions? Chat with us!

You Might Also Like

36 Inch Wall Mount Range Hood
BlueStar
36 Inch Wall Mount Range Hood
$4,115.00
36 Inch Single French Door Gas Wall Oven
BlueStar
36 Inch Single French Door Gas Wall Oven
$9,840.00
36 Inch French Door Refrigerator
BlueStar
36 Inch French Door Refrigerator
$16,390.00
24 Inch Panel Ready Built-In Fully-Integrated Dishwasher
BlueStar
24 Inch Panel Ready Built-In Fully-Integrated Dishwasher
$1,890.00
Product Information
Brand: BlueStar
Series: X-8™ BURNER
Model: BSDCTX8366BLPLT
Warranty Terms: 2 years
?
Appearance
Fuel Type: Gas
Fuel Subtype: Liquid Propane
Number of Burners: 6
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Controls Location: Top
Color: Stainless Steel
Trim Color: Plated Trim
Glass Surface: No
Downdraft Venting: No
Dimensions
Actual Width: 36 Inch
Actual Depth: 21 Inch
Actual Height: 4 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 14,000 BTU (Left Front)
Burner 2 Output: 14,000 BTU (Left Rear)
Burner 3 Output: 25,000 BTU (Center Front)
Burner 4 Output: 14,000 BTU (Center Rear)
Burner 5 Output: 14,000 BTU (Right Front)
Burner 6 Output: 14,000 BTU (Right Rear)
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: No Accessory
Grill: No
Griddle: No
French Top: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Are you a Trade Pro? Join Now

Description

36 Inch Cooktop with 6 X-8™ Sealed Burners
Experience the unmatched cooking power of the BlueStar BSDCTX8366B 36" Cooktop, the most powerful gas cooktop in its class with a total of 95,000 BTUs. It features six exclusive X-8™ sealed burners—including a 25,000 BTU power burner and five 14,000 BTU burners—each capable of a low 500 BTU simmer for delicate cooking. Designed with professional-grade cast iron grates and customizable with 190 vibrant knob colors and multiple trim options, this handcrafted Pennsylvania-made cooktop blends precision performance with personalized style.

Specifications

Burner Type:
BlueStar's exclusive X-8™ star-shaped sealed burners.
Details
Ignition Type:
Automatic Electronic
Type:
Built-In Gas Cooktop
Electrical Requirements
Fuel Type:
Liquid Propane
Voltage:
120V
Color/Finish Name:
Stainless Steel
Frequency:
60Hz
Trim Color:
Plated Trim
Amperage:
15 AMPS, 1 PH
Grate Material:
Professional grade cast iron
Product Specifications
Handcrafted:
In Pennsylvania since 1880
Unit Dimensions:
36”W x 21”D x 4”
Burner Performance
Top Burner Power:
25,000 BTUs
Total BTU Power:
95,000 BTUs
Low Burner Power:
500 BTUs (All Burners)
Number of Burners:
6
Gas Pressure:
NAT: 5.0” WC, LP: 10.0” WC
Burner Configuration:
One 25,000 BTU power burner (Natural Gas; 24,000 BTUs for LP), Five 14,000 BTU burners
Gas Line Size:
½”
Low Simmer Setting:
500 BTUs on every burner, offering precise control.
Burner Type:
BlueStar's exclusive X-8™ star-shaped sealed burners.
Ignition Type:
Automatic Electronic
Electrical Requirements
Voltage:
120V
Frequency:
60Hz
Amperage:
15 AMPS, 1 PH
Product Specifications
Unit Dimensions:
36”W x 21”D x 4”
Top Burner Power:
25,000 BTUs
Low Burner Power:
500 BTUs (All Burners)
Gas Pressure:
NAT: 5.0” WC, LP: 10.0” WC
Gas Line Size:
½”

Features

  • Professional-grade cast iron grates ensure durability and even heat distribution across all burners.
Unmatched Cooking Power
Customized to Fit Your Style
  • Add a personal touch with 190 painted knob color choices and several trim options.
  • This model boasts the most powerful gas cooktop in its class with a total output of 95,000 BTUs across six sealed burners.
Handcrafted Excellence
Exclusive X-8™ Burner Technology
  • Expertly made in Pennsylvania since 1880, this cooktop represents enduring craftsmanship and quality.
  • All six sealed burners offer full-spectrum power, delivering precision and versatility for any cooking style.
Maximum Heat Output
  • Includes a 25,000 BTU power burner for high-heat tasks like stir-frying, fast boiling, and searing.
Five Versatile 14,000 BTU Burners
  • Perfect for multitasking, these burners balance power and control for a wide range of recipes.
Ultra-Low Simmer on Every Burner
  • A gentle 500 BTU simmer setting on every burner provides flawless control for sauces and delicate dishes.
Heavy-Duty Cast Iron Grates
  • Professional-grade cast iron grates ensure durability and even heat distribution across all burners.
Customized to Fit Your Style
  • Add a personal touch with 190 painted knob color choices and several trim options.
Handcrafted Excellence
  • Expertly made in Pennsylvania since 1880, this cooktop represents enduring craftsmanship and quality.
Key Features
BlueStar Cooktop Video
X-8™Burner
The exclusive X-8™ star-shaped sealed burner delivers unparalleled versatility and precise control on every burner.
