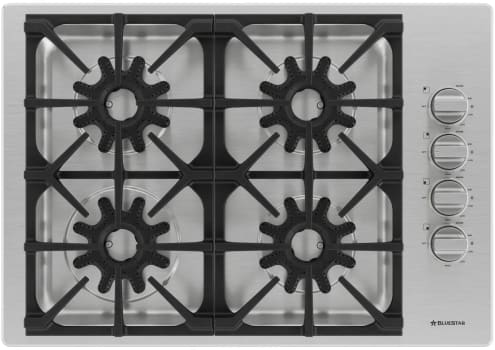

BlueStar X-8™ BURNER BSDCTX8304BL - 30 Inch Cooktop with 4 X-8™ Sealed Burners
BlueStar X-8™ BURNER BSDCTX8304BL - 30 Inch Cooktop with 4 X-8™ Sealed Burners
BlueStar X-8™ BURNER BSDCTX8304BL - 30 Inch Cooktop with 4 X-8™ Sealed Burners

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
BlueStar X-8™ BURNER BSDCTX8304BL
Authorized
Dealer

BlueStar X-8™ BURNER
BSDCTX8304BL
30 Inch Cooktop with 4 X-8™ Sealed Burners, 1 - 25,000 BTU Power Burner, 3 - 14,000 BTU Burners, Low 500 BTU Setting on Every Burner and Professional Grade Continuous Cast Iron Grates: Stainless Steel with Brushed Stainless Steel Trim - Liquid Propane

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 4
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Downdraft Venting: No
Actual Width: 30 Inch
WiFi: No
Bluetooth: No
Simmer Burner: Yes
Power Burner: Yes
Continuous Grates: Yes
Grill: No
Griddle: No
Warranty Terms: 2 years
?
View more
Color & Gas: Stainless Steel with Brushed Stainless Steel Trim - Liquid Propane
Stainless Steel with Brushed Stainless Steel Trim - Natural Gas
Stainless Steel with Brushed Stainless Steel Trim - Natural Gas
BSDCTX8304B
$2,795.00
In stock
Stainless Steel with Brushed Stainless Steel Trim - Liquid Propane
Stainless Steel with Brushed Stainless Steel Trim - Liquid Propane
BSDCTX8304BL
$2,795.00
Stainless Steel with Plated Trim - Natural Gas
Stainless Steel with Plated Trim - Natural Gas
BSDCTX8304BPLT
$3,745.00
Stainless Steel with Plated Trim - Liquid Propane
Stainless Steel with Plated Trim - Liquid Propane
BSDCTX8304BLPLT
$3,745.00
$2,795.00
MSRP: $3,215.00
You save $420.00
OR
FREE Delivery Available
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Have questions? Chat with us!

You Might Also Like

Island Mount Range Hood
BlueStar
Island Mount Range Hood
$3,795.00
30 Inch French Door Single Electric Wall Oven
BlueStar
30 Inch French Door Single Electric Wall Oven
$7,995.00
30 Inch Built-In Column Refrigerator
BlueStar
30 Inch Built-In Column Refrigerator
$9,295.00
24 Inch Panel Ready Built-In Fully-Integrated Dishwasher
BlueStar
24 Inch Panel Ready Built-In Fully-Integrated Dishwasher
$1,295.00
Product Information
Brand: BlueStar
Series: X-8™ BURNER
Model: BSDCTX8304BL
Warranty Terms: 2 years
?
Appearance
Fuel Type: Gas
Fuel Subtype: Liquid Propane
Number of Burners: 4
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Controls Location: Top
Color: Stainless Steel
Surface Color: Stainless Steel
Trim Color: Brushed Stainless Steel
Glass Surface: No
Downdraft Venting: No
Dimensions
Actual Width: 30 Inch
Actual Depth: 21 Inch
Actual Height: 4 Inch
Cutout Width: 29 Inch
Cutout Depth: 19 1/2 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
AI Technology: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 25,000 BTU (Left Front)
Burner 2 Output: 14,000 BTU (Left Rear)
Burner 3 Output: 14,000 BTU (Right Front)
Burner 4 Output: 14,000 BTU (Right Rear)
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: No Accessory
Grill: No
Griddle: No
French Top: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Are you a Trade Pro? Join Now

Description

30 Inch Cooktop with 4 X-8™ Sealed Burners
Bring professional power and precision to your kitchen with the BlueStar BSDCTX8304B 30" Cooktop, featuring four exclusive X-8™ sealed burners that deliver full-spectrum performance on every burner. From a fierce 25,000 BTU power burner to a gentle 500 BTU simmer on all burners, this cooktop offers unmatched control and versatility. Heavy-duty cast iron grates, customizable knobs in 190 colors, and handcrafted American quality make this a stunning, high-performance addition to any culinary space.

Specifications

Details
Type:
Built-In Gas Cooktop
Fuel Type:
Liquid Propane
Color/Finish Name:
Stainless Steel
Trim Color:
Brushed Stainless Steel
Grate Material:
Professional grade cast iron
Handcrafted:
In Pennsylvania since 1880
Burner Performance
Total BTU Power:
67,000 BTUs
Number of Burners:
4
Burner Configuration:
One 25,000 BTU power burner (Natural Gas; 24,000 BTUs for LP), Three 14,000 BTU burners
Low Simmer Setting:
500 BTUs on every burner, offering precise control.
Burner Type:
BlueStar's exclusive X-8™ star-shaped sealed burners.
Ignition Type:
Automatic Electronic
Electrical Requirements
Voltage:
120V
Frequency:
60Hz
Amperage:
15 AMPS, 1 PH
Product Specifications
Unit Dimensions:
30”W x 21”D x 4”
Top Burner Power:
25,000 BTUs
Low Burner Power:
500 BTUs (All Burners)
Gas Pressure:
NAT: 5.0” WC, LP: 10.0” WC
Gas Line Size:
½”
Product Specifications
Unit Dimensions:
30”W x 21”D x 4”
Top Burner Power:
25,000 BTUs
Low Burner Power:
500 BTUs (All Burners)
Gas Pressure:
NAT: 5.0” WC, LP: 10.0” WC
Gas Line Size:
½”

Features

Full-Spectrum Power on Every Burner
  • Four exclusive X-8™ sealed burners deliver unmatched versatility from high-heat searing to gentle simmering—all from a single burner.
High-Performance 25,000 BTU Burner
  • One 25,000 BTU power burner offers intense heat ideal for rapid boiling, wok cooking, and perfect searing.
Reliable Everyday Performance
  • Three 14,000 BTU burners provide consistent performance for daily cooking tasks with professional results.
Delicate Simmer Control
  • All burners feature a low 500 BTU simmer setting, allowing for ultra-precise control when melting or gently warming.
Commercial-Grade Grates
  • Durable, professional-grade cast iron grates support even the heaviest cookware while maintaining even heating.
Personalized Style Options
  • Choose from 190 painted knob colors and multiple trim finishes to match your unique kitchen aesthetic.
American Craftsmanship
  • Handcrafted with pride in Pennsylvania since 1880 for exceptional quality and performance.
Key Features
BlueStar Cooktop Video
X-8™Burner
The exclusive X-8™ star-shaped sealed burner delivers unparalleled versatility and precise control on every burner.
