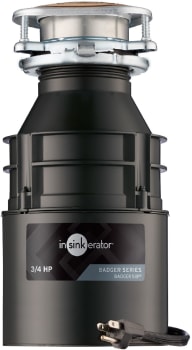

InSinkErator Badger Series BADGER5XPWC - Continuous Feed Food Waste Disposer with Dura-Drive® 3/4 HP Heavy Duty Motor
InSinkErator Badger Series BADGER5XPWC - Continuous Feed Food Waste Disposer with Dura-Drive® 3/4 HP Heavy Duty Motor
InSinkErator Badger Series BADGER5XPWC - Continuous Feed Food Waste Disposer
InSinkErator Badger Series BADGER5XPWC - Continuous Feed Food Waste Disposer
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
InSinkErator Badger Series BADGER5XPWC
Authorized
Dealer

InSinkErator Badger Series
BADGER5XPWC
Continuous Feed Food Waste Disposer with Dura-Drive® 3/4 HP Heavy Duty Motor, Galvanized Steel Construction, and Space-Saving Compact Design

Top Quality Store on Google
Only 4 left in stock
quick specs
Width: 6 5/16 Inch
Height: 12 5/8 Inch
Type: Continuous Feed
Horsepower (Hp): 3/4 Hp
Grinding Speed (RPM): 1,725 RPM
View more
$236.80
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: InSinkErator
Series: Badger Series
Model: BADGER5XPWC
Dimensions
Width: 6 5/16 Inch
Height: 12 5/8 Inch
Features
Type: Continuous Feed
WiFi Connected: No
Grind Chamber Capacity: 26 Oz.
Technical Details
Horsepower (Hp): 3/4 Hp
Grinding Speed (RPM): 1,725 RPM
Amps: 10
Voltage: 120 Volts
ADA Compliant: No
Are you a Trade Pro? Join Now

Description

Continuous Feed Food Waste Disposer with Dura-Drive® 3/4 HP Heavy Duty Motor
Our Badger 5XP garbage disposal offers a heavy duty motor and space-saving compact design. The InSinkErator Badger® Series garbage disposals are a reliable and functional choice when affordability is the prime concern. Choose from three Badger Series garbage disposal models, each with a space-saving compact design.

Specifications

Specification
Type of Feed:
Continuous
On/Off Control:
Wall Switch
Motor:
Single Phase
Amp. (Avg. Load):
9.5
Time Rating:
Intermittent
Lubrication:
Permanently Lubricated Upper & Lower Bearings
Unit Finish:
Waterborne Grey Enamel
Grind Chamber:
Capacity 26 oz.
Motor Protection:
Manual Reset Overload
Average Water Usage:
Approx. 1 Gallon per Person Per Day
Drain Connection:
1-1/2" Cushioned Slip Joint
Dishwasher Drain Connection:
Yes
cUL Listed:
Yes
Electrical Requirement
HP:
3/4
Volts:
120
HZ:
60
RPM:
1725
Average Electrical Usage:
3-4 KWh per Year
Dimension
Overall Height:
12 5/8"
Shipping Weight:
15 lbs.

Features

Quiet Dura-Drive® Induction Motor
  • Provides instant power, ensuring faster operation than traditional induction motors for reliable grinding of the toughest food scraps
Lift & Latch™ Technology
  • For easier sink connection
Quick Lock® Sink Mount
  • Allows for easy installation and disposal replacement
Other Features
  • Galvanized Steel Construction
  • Space-Saving Compact Design
  • cUL Listed
