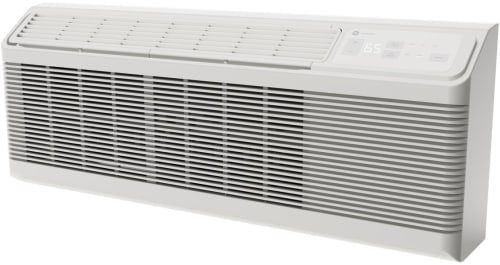

GE Zoneline AZES15DCXXA - 14,800 BTU Packaged Terminal Air Conditioner
GE Zoneline AZES15DCXXA - 14,800 BTU Packaged Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
GE Zoneline AZES15DCXXA
Authorized
Dealer

GE Zoneline AZES15DCXXA 14,800 BTU Packaged Terminal Air Conditioner with Electric Heat, 10.6 EER, Sleep Mode, Smart Fan, Auto Power Recovery, R454B Refrigerant, Electronic Controls, 3 Fan Speed Selections and 208/230 Voltage

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Cooling Capacity (BTU): 14,800 BTU
WiFi: No
Remote Monitoring: No
Control Type: Digital
View more
$1,485.00
OR
Add to Cart for Final Price - Ends Today!
FREE Delivery Available

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
You Will Also Need:
230/208 Volt Line Cord Connection Kit: 15 Amps
+ $41.00
230/208 Volt Line Cord Connection Kit: 20 Amps
+ $49.00
230/208 Volt Line Cord Connection Kit: 30 Amps
+ $59.00
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: GE
Series: Zoneline
Model: AZES15DCXXA
Dimensions
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Capacity
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Window / Wall
Maximum Cooling Amps: 6.7 Amps
Maximum Cooling Watts: 1,390 Watts
Heat: Electric Heat
Energy Efficiency Rating: 10.6
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 440 CFM
Indoor CFM, Low: 330 CFM
Refrigerant Type: R-454B
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
GTIN
UPC: 84691942580
Are you a Trade Pro? Join Now

Description

14,800 BTU Packaged Terminal Air Conditioner
This 14,800 BTU GE Zoneline PTAC air conditioner will keep your guests comfortable all year round. The PTAC AC unit offers high-quality construction and customizable settings to meet even the pickiest guests' climate control demands. This GE Zoneline 14,800 BTU PTAC AC Unit with Electric Heat uses 208/230 Volts and Universal Amps.

Specifications

Capacity
Cooling BTUH (MAX):
14800.000000
CFM Indoor Fan Low:
330
CFM Indoor Fan High:
440
Cooling EER (BTUH / Watt):
10.5 / 10.6
Dehumidification (pts./hr.):
4.5 (High Speed)
Vent CFM (high fan at zero ESP):
33
Cooling BTUH (MIN):
14500
Features
"Sleep" Mode:
Yes
"Smart Fan" Fan Cycle Control:
Yes
Auto Power Recovery:
Yes
Automatic Indoor Frost Control:
Yes
Central Desk Control Compatibility:
Yes
Freeze Sentinel:
Yes
Heat Sentinel (85F):
Yes
Proportional - Integral ID Airflow:
Yes
Random Twist/Length Segment Tangential Blower:
Yes
Remote Thermostat Compatibility:
Yes
Universal Heaters:
Yes
Weather Protected Electrical Components:
Yes
Louver Style:
Reversible
Control Type:
Tactile touch pad with LED Display
Discharge Grille:
2-position
Fan Speed Selections:
Hi/Low Cooling
Hi/Low Fan Only:
Yes
Hi/Low Heating:
Yes
Sensible Heat Ratio:
63%
Power Factor:
97
Refrigerant Type:
R454B
Filter Type:
Rigid Frame
Slide-Out:
Yes
Manual Vent Control:
Hidden
Chassis Type:
Slide-In
Fan Motor:
2
Temperature Limiting:
Electronic 7-Step
Fan Speed Control:
Yes
Temperature Range:
60 - 85 F
Corrosion Treated:
Yes
Heat - Cool:
Yes
Electronic Micro Computer Control:
Yes
Fan Cycle Switch:
Yes
Central Desk Control Compatibility:
Yes
Rotary Compressor:
Yes
Vent Control:
3-position
Concealed Manual Vent Control:
Yes
Outdoor Vent Control - 3 Positions:
Yes
Vent Air Filter:
Yes
Heating System Electric Resistance:
Yes
Weights & Dimensions
Overall Width:
42
Approximate Shipping Weight:
117
Overall Height:
16
Overall Depth:
20 13/16
Net Weight:
107
Power / Ratings
Cooling - Amperes; L.R.:
31.5
Cooling - Amperes; F.L. - Cooling:
6.3/6.7
Cooling - Amperes:
6.3/6.7
Cooling - Watts:
1390/1380
Voltage (MIN):
208
Voltage (MAX):
230.000000
Warranty
Labor Warranty:
Limited 1-year entire appliance
Parts Warranty:
Limited 1-year entire appliance
Certifications
California Prop 65:
Yes
UL:
Yes
AHRI:
Yes
CUL:
Yes
NRCAN:
Yes

Features

Heat Pump
  • Efficiently provides both cooling and heating, ensuring year-round comfort.
Corrosion Protection
  • Extends Life of the Unit in Sea Coast Areas/Corrosive Environments.
Electronic Touch Controls
  • Intuitive touch-sensitive controls for precise temperature and mode adjustments.
Heat & Freeze Sentinels
  • Keeps the room from overheating or freezing
Boost Heat Option
  • Provides Supplemental Resistance Heat in Heat Pump Mode
Other Features
  • Sleep Mode
  • Auto Power Recovery
  • 2 Pints/Hour
  • LED Display
  • R 454B Refrigerant
  • 3-Stage Heating Design
  • Reverse Cycle Defrost
  • Quick Heat Recovery
