Quick Specs

Product Information
Brand: GE
Series: Zoneline
Model: AZ45E09EAC
Dimensions
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 16.5 Amps
Maximum Cooling Watts: 815 Watts
Heat: Electric Heat
CFM Room Circulation: 409 CFM
Energy Efficiency Rating: 11.6
Control Type: Digital
PTAC: Yes
Technical Details
Voltage: 265 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
Price:
$1,109.00
Add to Cart for Final Price - Ends Today!
$74.08/month with No Interest for 12 months if paid in full. Learn More.
Warranty
5 Year In Home Service - 50% Cash Back! +$199.00
3 Year In Home Service +$89.99
Decline Protection

Image Disclaimer

Authorized
Dealer

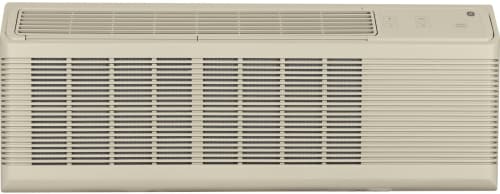

GE Zoneline AZ45E09EAC
9,500 BTU Packaged Terminal Air Conditioner

  • 9,500 BTU
  • Packaged Terminal Air Conditioner
  • Electric Heat
  • Corrosion Protection
  • 11.6 EER
  • 2.7 Pints Per Hour Dehumidification
  • R410A Refrigerant
  • 265 Volt
FREE Nationwide Delivery
Additional Options
1. Wall Sleeve Options
Add
Standard Wall Case: Galvanized Steel RAB71B preview + $98.00
Add
SMC Wall Case RAB77B preview + $120.00
2. Rear Grille
Add
Extruded Aluminum Architectural Outdoor Grille RAG67 preview + $78.00
Add
Stamped Aluminum Exterior Rear Grille RAG60 preview + $30.00
3. High-Impact Polymer Grille
Add
Exterior Architectural Louvers Durable Polycarbonate: Beige RAG61 preview + $59.00
Add
Exterior Architectural Louvers Durable Polycarbonate: Maple RAG62 preview + $73.00
Add
Exterior Architectural Louvers Durable Polycarbonate: Dark Brown RAG63 preview + $73.00
4. Retrofit Kits
Add
Air Deflector Kit RAK40 preview + $19.00
5. 230/208 Volt Line Cord Connection Kit
Add
230/208 Volt Line Cord Connection Kit: 30 Amps RAK330P + $47.00
Add
230/208 Volt Line Cord Connection Kit: 20 Amps RAK320P preview + $42.00
Add
230/208 Volt Line Cord Connection Kit: 15 Amps RAK315P preview + $42.00
6. 230/208 Volt Universal Power Supply Kit (To Be Used with Sub-Base)
Add
230/208 Volt Universal Power Supply Kit: 30 Amps RAK330D preview + $48.00
Add
230/208 Volt Universal Power Supply Kit: 20 Amps RAK320D preview + $48.00
Add
230/208 Volt Universal Power Supply Kit: 15 Amps RAK315D preview + $48.00
7. 265 Volt Universal Power Supply Kit (To Be Used With Sub-Base or Connection to Building Wiring)
Add
Direct Connect Kit: 15 Amps RAK515D preview + $40.00
Add
Direct Connect Kit: 20 Amps RAK520D preview + $40.00
Add
Direct Connect Kit: 30 Amps RAK530D preview + $40.00
8. Standard Sub-Base with Power Cord Included
Add
Standard Sub-Bases with Power Cord Included: 30 Amps RAK204D30PA preview + $113.00
Add
Standard Sub-Bases with Power Cord Included: 20 Amps RAK204D20PA preview + $113.00
Add
Standard Sub-Bases with Power Cord Included: 15 Amps RAK204D15PA preview + $113.00

Quick Specs

Product Information
Brand: GE
Series: Zoneline
Model: AZ45E09EAC
Dimensions
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 16.5 Amps
Maximum Cooling Watts: 815 Watts
Heat: Electric Heat
CFM Room Circulation: 409 CFM
Energy Efficiency Rating: 11.6
Control Type: Digital
PTAC: Yes
Technical Details
Voltage: 265 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

***NOTE*** Power cord, wall sleeve, and grille not included, select from the listing above.

GE Air Conditioning
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

Selecting a GE air conditioner is not only good for the occupant and guests, it's a decision that will leave you resting comfortably as well. All GE air conditioners are engineered to give many years of dependable service with a full complement of standard features and a variety of exclusive GE features. They're designed for hassle-free installation and easy maintenance.

How to Choose a Room Air Conditioner
Compared to large capacity central units, room air conditioners have several advantages. The initial cost of a room air conditioning unit is significantly lower than the cost of central air. Because room air conditioners are designed for cooling small spaces, operating costs are reduced. And, room air conditioners can provide personalized temperature and humidity controls that central systems cannot.

Calculating Cooling Capacity
Cooling capacity is the critical factor in properly selecting a room air conditioner. Cooling capacity is measured in British Thermal Units (BTUs) and typical models will range in capacity from 5,000 BTUs to 28,500 BTUs.

Choosing an undersized unit will overwork the unit and it will not cool properly. Choosing an over-sized unit will cost more to buy and operate and it will not dehumidify properly.

We can help you to calculate capacity. Be prepared to provide specific information on:
  • Room Dimensions
  • A simple floor plan to show the location of doors and north-facing windows
  • The number of people it will serve
  • Sources of heat such as lamps, TV and appliances
  • An explanation of what's above the intended room
  • Your insulation provisions
Cooling Capacity by Room Size
Measure the length and width of the area to be cooled. Multiply the length by the width to determine square footage or square meters. Locate the room size in the chart below to select the appropriate BTUs. Then use the product information to select the unit for your room. When cooling rooms with uninsulated ceilings, great rooms, or southern or western sun exposures - step up to the next BTU size.
Room SizeBTU
Sq. Ft.Sq. m
15014 up to 5,000
16515 5,200
216206,000
350338,000
425399,000
5004610,000
6406014,00
9008415,100
1,11010318,000
1,17010918,500
1,43513322,000
1,67215425,000
1,96018228,500

Specifications

Features
Sensible Heat Ratio:
67%
Chassis Type:
Slide-In
Control Type:
Coverless Backlit White LED Touch Controls
Discharge Grille:
2-position
Electronic Micro Computer Control:
Yes
Fan Cycle Switch:
Yes
Fan Motor:
2
Fan Speed Control:
Yes
Fan Speed Selections:
Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating
Filter Type:
Rigid Frame, Slide-Out
Heating and Cooling:
Yes
Louver Style:
Reversible
Manual Vent Control:
Hidden
Rotary Compressor:
Yes
Temperature Limiting:
Electronic 7-Step
Vent Control:
3-position
Venting Features:
Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter
Zoneline Features:
"Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, LCDI Power Cord, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components
Temperature Range:
60 - 85 F
Capacity
Cooling BTU (Max.):
9,500 BTU
Cooling EER (BTU/Watt):
11.6
Indoor Fan CFM (High):
409
Indoor Fan CFM (Low):
280
Dehumidification (Pts./Hr.):
2.7
Vent CFM (High Fan at Zero ESP):
38
Power / Ratings
Cooling - Amperes; F.L. - Cooling:
3.3
Cooling - Amperes; L.R.:
16.5
Cooling - Watts:
815
Power Factor:
94
Voltage (Max.):
265.0 V
Warranty
Parts & Labor:
1 Year
Sealed Refrigerating System:
5 Years
Weights & Dimensions
Shipping Weight:
110 Lbs.
Depth:
20 13/16"
Height:
16"
Width:
42"

Features

***NOTE***Power cord, wall sleeve, and grille not included, select from the listing above.
Cooling Capacity
  • 9,500 BTU
Energy Efficiency
  • 11.6 EER (BTU / Watt)
Dehumidification
  • 2.7 pints/hour
Indoor Fan
  • 409/280 high/low CFM
Fresh Air Vent
  • 38
Quiet Operation
  • Baked-on mastic, cross flow blower and two DC fan motors create less noise to ensure comfort
Heat & Freeze Sentinels
  • Keeps the room from overheating or freezing
Electronic Temperature Limiting
  • Prevents expensive over-cooling or over-heating of the room
Corrosion Resistant
  • Extends life of the unit in sea coast areas/corrosive environments
Electronic Touch Controls with LED Display
Eco-Friendly R-410A Refrigerant
