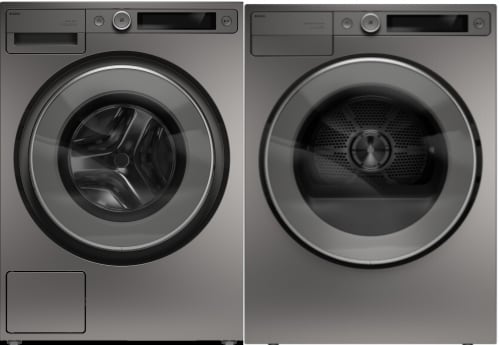

ASKO ASWADRELT5X - Side by Side Washer and Heat Pump Dryer
ASKO ASWADRELT5X - Side by Side Washer and Heat Pump Dryer
ASKO ASWADRELT5X - 24 Inch Front Load Smart Washer
ASKO ASWADRELT5X - 24 Inch Electric Smart Dryer
+10

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
ASKO ASWADRELT5X
Authorized
Dealer

ASKO
ASWADRELT5X
Side-by-Side Front Load Washer and Electric Dryer Set in Titanium

Top Quality Store on Google
Save $850!
included items
24 Inch Front Load Smart Washer (W5XLT)
• 2.8 cu. ft. Capacity, 28 Wash Programs, 1,400 RPM
24 Inch Electric Smart Dryer (T5VXLT)
• 5.2 cu. ft. Capacity, 17 Drying Programs, Butterfly Drying™
Color:
Titanium
Graphite Black
Titanium
White
Configuration:
Side-by-Side
Side-by-Side
Stacked
Same Price
Fuel Type:
Electric
Electric
$4,648.00
MSRP: $5,498.00
You save $850.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
Electric Dryer & Washer Install Kit
+ $69.00
Protect Your Purchase
+$390
- 30% Cash Back! +$590
Have questions? Chat with us!
Product Information
Brand: ASKO
Model: W5XLT
MPN: W5XLT.U
Appearance
Type: Front Load
Color: Titanium
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 7/16 Inch
Depth: 27 1/16 Inch
Height: 33 7/16 Inch
Capacity: 2.8 Cu. Ft.
Smart
WiFi: Yes
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: No
App Integration: ConnectLife
Smart Accessory Required: No
AI Technology: No
Features
Control Type: Digital and Knobs
Bleach Dispenser: No
Fabric Softener Dispenser: Yes
Stainless Steel Drum: Yes
Leveling Legs: Yes
Maximum Spin Speed (RPM): 1,400
Reversible Door: No
Interior Light: Yes
Includes Hoses: Yes
Water Heater: Yes
Usage: Residential
Voice Assistant: No
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: ConnectLife
Remote Access: Yes
Cycles
Wash Cycles: 28
Wash Options: 11
Steam Cycle: Yes
Sanitize Cycle: Yes
Allergy Cycle: Yes
Pet Cycle: No
Add Wash: Yes
Bulky/Large Items Cycle: Yes
Delicate Cycle: Yes
Extra Rinse Cycle: Yes
Heavy Duty Cycle: No
Permanent Press Cycle: No
Pre-Wash Cycle: Yes
Programmable Cycle: Yes
Quick Wash Cycle: Yes
Soak Cycle: No
Whites Cycle: Yes
Cold Water Cycle: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: Yes
NSF Certified: No
Amps: 15
Voltage: 240/208 Volts
GTIN
EAN: 3838783001481
Are you a Trade Pro? Join Now

Description

24 Inch Front Load Smart Washer with 2.8 cu. ft. Capacity
ASKO W5XLT is a washing machine designed in Sweden and with extra robust construction for a trouble-free everyday life for many years. It has an 24.3 lbs. load capacity and 28 programs for easy and efficient washing. The machine is extra hygienic thanks to Steel Seal™ and with Quattro Construction™ 2.0 you get a quiet run and minimal vibrations even when the machine spins at the maximum speed of 1,400 rpm.

Specifications

General Specifications
Series:
5-Series
Color:
Titanium
Installation:
Freestanding
Drum Volume:
2.8 cu. ft.
Loading Capacity:
24.3 lbs.
Draining Capacity:
5.3 Gal/Min
Loading Type:
Front Load
Max Spin Speed:
1,400 rpm
Type Of Display:
TFT - Full Color Touch Display
Load Light™ - Illumination Of The Drum:
Yes
Automatic Dosing System:
Yes, with Detergent and Fabric Conditioner
Included Accessory:
Discharge Hose Bow
Door Lock:
Motorized
Temperature Range:
194 °F
Transparent Door Cover/Double Glass Door:
No
Easy Mounting Of ASKO Dryer On Top Of The Washers:
Yes
Adjustable Feet:
3/8"
Programs & Options
Number Of Program:
28
Programs:
Rinse, Spin, Drain, Drum Cleaning, Normal Cotton, White Laundry, Colored Laundry, Mix/Synthetic, Delicate, Wool/Hand Wash, Cotton, Sportswear, Outerwear, Time, Steam Refresh, Quick Pro Cotton, Jeans, Shirts/Blouses, Beddings/Towels, Down, Waterproofing, Anti-Allergy Cotton, Anti-Allergy Synthetics, Textile Trainers, Soft Toys, Underwear, Swimwear, Baby Clothes Cotton
Number Of Modes:
4
Program Modes:
Normal, Speed, Green, Intensive
Number Of Options:
11
Options:
Temperature, Spin Speed, Manual Dose Assist, Super Rinse, Prewash, High Water Level, Anti-crease, Time Start Delay, Child Lock, Small Load, Steam Disinfection
Features
Wi-Fi:
Yes
ConnectLife:
Yes
Bluetooth:
Yes
Dose Assist:
Yes
Spin Speed Setting:
Adjustable
Delayed Start:
Up to 24 hours
Settings:
No Spin, Pause, Add Clothes
Remaining Time Indication:
Yes
Create Own Program:
Yes
Easy Close Door:
Yes
Easy Door Opening:
Yes
Stop Flap For Liquid Detergent:
Yes
Automatic Detergent Drawer Cleaning:
Time Remaining Indicator
Construction and Performance
Door Sealing:
Steel Seal™
Quattro Construction™:
Yes, 2.0 Professional Suspension
Tub:
Stainless Steel
Inner Drum:
Stainless Steel
Counter Weight Material:
Cast Iron
Counterweight:
37.5 lbs.
Active Drum™:
Yes
Max +/- 1 °F Temperature Variation:
Yes
Door Hinge Placement:
Left
Door Opening Diameter:
12 3/16"
Door Maximum Opening Angle:
110°
Motor:
Long Life and Quiet Brushless Motor
Shortest Program Time:
20 Min
Safety and Maintenance
Waterproof Bottom Plate with Leakage Detection:
Yes
Maximized Water Inlet Time:
Yes
Aqua Safe System:
Yes, with Bottom Sensor
Water Inlet Hose:
Aqua Stop, Shuts off water if it leaks
Drain System:
Anti Block™ - Self-cleaning Drain Pump
Overflow Protection:
Yes
Emergency Door Opening Function:
Yes
Child Lock On Display:
Yes
Unbalance Detection:
Yes
Overheat Protection:
For Motor and Electronics
Technical Data
Plug Type:
USA
Connected Load:
2,200 W
Voltage:
208–240 V
Number of Phases:
1
Fuse:
15 A
Frequency:
60 Hz
Heater Power:
2,000 W
Water Connection:
Cold Water
Dimensions & Weights
Width:
23 7/16"
Height:
33 7/16"
Depth:
27 1/16"
Depth with Door Open:
44 7/16"
Length of Electrical Cord:
82 11/16"
Length Inlet Hose:
59 1/16"
Length Outlet Hose:
63"
Packaging Width:
25 1/16"
Packaging Height:
36 1/4"
Packaging Depth:
30 9/16"
Net Weight:
218.3 lbs.
Gross Weight:
225.8 lbs.
Test Certificate & Certifications
ISO 14001 Certified Manufacturing:
Yes
ADA Compliant:
Yes, Standing on the ASKO pedestal drawer

Features

2.8 cu. ft. Capacity
  • An extra large drum that can load 24.3 lbs., accommodating up to two king comforters with ease and efficiency.
28 Wash Programs
  • Deliver versatile fabric care for every laundry need.
1,400 RPM
  • Delivers faster drying and reduced moisture.
Steam Disinfection
  • Allows you to effectively wash sensitive fabrics at cold or low temperatures by adding steam before the main wash cycle. Steam also enables you to refresh clothes without visible stains, completely without detergent.
Anti-Allergy Program
  • Anti-allergy program that eliminates 99.99999% of bacteria and viruses.
Quick Pro Program
  • The Quick Pro program is for those who thinks washing machines are too slow. Still high performing, the program uses gentle tumbling and a lower spinning rate, finishing within an hour.
Delay Start
  • Flexible scheduling allows you to set wash cycles to begin at your convenience.
Prewash Option
  • Tackles heavily soiled garments by adding an extra rinse before the main wash.
Auto Dose
  • ASKO's convenient auto dosing system includes two detachable tanks, which can be used for detergent and fabric softener.
Unbalance Detection
  • Protects the washer against harmful vibrations.
Wi-Fi Connection
  • Wi-Fi connectivity with the ConnectLife app allows remote monitoring, control, and access to helpful washing guides directly from your smartphone.
Aqua Safe System™
  • Consists of several functions that work together to detect, prevent, and warn of leaks and overflows. For example, if the machine detects a water level that is too high, the inlet valve closes, the drain pump starts, and an alarm goes off.
Sensi Save 2.0
  • An eco-friendly innovation that adapts the wash cycle based on the load size and fabric type.
  • This technology enables ASKO washing machines to deliver beautifully clean clothes while using the least amount of water and energy while saving time by running each cycle only as long as necessary.
Active Drum™
  • All ASKO washers feature the unique Active Drum™, ensuring optimal cleaning and fabric care. Hourglass-shaped lifters guide clothes to the gentler central area while moving debris like dirt and gravel to the larger holes at the drum’s edge.
Hygienic Steel Seal™
  • Washing machine opening without a rubber seal for better hygiene, no smell or mold, easier access, and increases life span. 95% less bacterial growth according to 3rd party test institute.
  • The motorized door lock firmly secures the door to the drum, reducing noise and vibrations.
Quattro Construction™ 2.0
  • Exclusive suspension system with stainless steel inner and outer drum, cast iron weights, and 4 shock absorbers to reduce vibrations, increase machine stability and life span.
Stainless Inner and Outer Drum
  • All ASKO washing machines have both stainless inner and outer drum resulting in higher levels of performance, hygiene, and durability.
Drum Light
  • The drum light in ASKO washers illuminates the drum for easy loading, unloading, and cleaning, helping you spot forgotten garments. Integrated into the door, this long-lasting light adds convenience and a touch of luxury to your laundry routine.
Full Color TFT Touch Display
  • Experience effortless control with the full-color touch display, navigating settings via touch or the convenient jog dial. Choose Normal View for detailed info or Easy View for larger text and icons, making every interaction clear, simple, and enjoyable.
Additional Features
  • Steam Refresh
  • SportWash Program
  • Add Clothes Setting
  • Child Lock
  • ADA Compliant
California residents see Prop 65 WARNINGS

Reviews

Washer Accessories

Manuals & Guides

Specification Guide
Owners Guide
Declaration of Conformity
Dimensional Diagram
Product Information
Brand: ASKO
Model: T5VXLT
MPN: T5VXLT.U
Appearance
Type: Front Load
Fuel Type: Electric
Color: Titanium
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 7/16 Inch
Depth: 29 1/4 Inch
Height: 33 7/16 Inch
Capacity: 5.2 Cu. Ft.
Smart
WiFi: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: No
App Integration: ConnectLife app
Smart Accessory Required: No
AI Technology: No
Features
Control Type: Digital and Knobs
Cycles: 17
Options: 4
Stainless Steel Drum: Yes
Reversible Door: Yes
Dry Rack: Optional
Venting Type: Vented
Interior Light: Yes
Voice Assistant: No
Leveling Legs: Yes
Usage: Residential
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: ConnectLife app
Remote Access: Yes
Cycles
Wrinkle Control Cycle: Yes
Steam Cycle: No
Sanitize Cycle: No
Pet Cycle: No
Sensor Dry: Yes
Air Dry/Air Fluff Cycle: Yes
Delicate Cycle: Yes
Heavy Duty Cycle: No
Permanent Press Cycle: No
Programmable Cycle: Yes
Quick / Express Dry: Yes
Refresh Cycle: Yes
Timed Dry: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: Yes
NSF Certified: No
Amps: 15
Voltage: 240/208 Volts
GTIN
EAN: 3838783002518
Are you a Trade Pro? Join Now

Description

24 Inch Electric Smart Dryer with 5.2 cu. ft. Capacity
ASKO T5VXLT is a tumble dryer designed in Sweden and with extra robust construction for a trouble-free everyday life for many years. It has a 5.2 cu ft drum and 18 programs for easy and efficient drying. The machine has an easy-to-use lint filter, One Motion™ Lint Filter, which makes daily care of the dryer simple. Butterfly Drying™ technology distributes the clothes and ensures even and gentle drying.

Specifications

General Specifications
Capacity:
5.2 cu. ft.
Loading Type:
Front Load
Installation:
Freestanding
Heating System:
Electric Heater
Drying Types:
Sensor Or Time Controlled
Inner Drum:
Stainless Steel
Motor:
Long Life and Quiet Brushless Motor
Type Of Display:
TFT - Full Color Touch Display (Possible to interact with jog dial as well)
Drying Basket:
Sold Separately
Door Hinge Placement:
Right/Left
Adjustable Feet:
9/16"
Features
Wi-Fi Connection:
Yes
Child Lock On Display:
Yes
Overheat Protection:
For Motor and Electronics
Remaining Time Indication:
Yes
Automatic Programs:
Yes
Sensors:
Moisture Sensor
Auto Condenser Filter Cleaning:
No
Shortest Program Time:
30 Min
Easy To Use Lint Filter:
Yes
Load Light™ - Illumination Of The Drum:
Yes
Programs and Options
Number of Program:
17
Drying Programs:
ECO Cotton, Storage Dry Cotton, Iron Dry Cotton, Synthetic, Delicates, Mixed Laundry, Beddings/Towels, Down/Bulky Items, Airing, Time Program, Quick Pro Cotton, Activewear, Jeans, Shirts/Blouses, AntiAllergy, Waterproofing, Wool
Number of Options:
4
Options:
Dry Level, Delayed Start, Anti-Crease, Child Lock
Settings:
Load Level Setting, Low Temperature Option, Timed Drying, Half Load, Pause, Quick Dry
Modes:
2
Modes:
Standard, Delicate
Technical Data
Noise Level Drying dB(A):
59
Heater Power:
3,000 W
Connected Load:
3,400 W
Voltage (V):
208-240 V
Number of Phases:
1
Fuse:
30 A
Frequency:
60 Hz
Dimensions & Weights
Width:
23 7/16"
Height:
33 7/16"
Depth:
29 1/4"
Depth with Door Open:
45 7/8"
Packaging Width:
24 7/16"
Packaging Height:
36 7/16"
Packaging Depth:
33 7/8"
Net Weight:
100.3 lbs.
Gross Weight:
111.8 lbs.
Length of Electrical Cord:
82 11/16"
Test Certificate & Certifications
ISO 14001 Certified Manufacturing:
Yes
ADA Compliant:
Yes, when installed on top of an ASKO pedestal drawer

Features

5.2 cu. ft. Capacity
  • Spacious drum designed to handle family-sized loads with ease.
17 Drying Programs
  • Offers versatile cycles for everyday fabrics, delicates, wool, bedding, and more.
Butterfly Drying™
  • With Butterfly Drying™, the paddles in the drum gently tumble the clothes in a figure 8 to create space between the garments, ensuring an even drying experience.
Sensor Dry
  • Automatically adjusts drying time based on moisture levels for efficiency.
Fast Drying
  • Fast programs, up to -54% shorter program time vs previous models thanks to increased airflow in the dryer. High heater effect of 3 kW also contributes to fast drying cycles.
Wi-Fi Connection
  • Wi-Fi connectivity with the ConnectLife app allows remote monitoring, control, and access to helpful drying guides directly from your smartphone.
ECO Feedback
  • In the ConnectLife app you can check energy, water and detergent consumptions.
Delicates Program
  • Careful drying of sensitive garments.
One Motion™ Lint Filter
  • The lint filter is conveniently located on the lower edge of the tumble dryer opening, making it easy to lift with its ergonomic handle and empty.
BLDC Motor
  • BLDC motors are extra durable, quieter than ordinary motors and more energy efficient. And unlike standard motors, there are no brushes that can be damaged and need replacing.
Drum Light
  • The built-in drum light in your tumble dryer adds a touch of smart convenience by lighting up the interior as soon as you open the door.
Full Color TFT Touch Display
  • Experience effortless control with full-color touch display, offering intuitive navigation via touch or jog dial. Switch between Normal View for details or Easy View with enlarged text and icons for clarity, making every interaction simple and stylish.
Additional Features
  • Delay Start
  • Half Load Setting
  • Anti-Allergy Program
  • Timed Drying
  • Child Lock
  • ADA Compliant
California residents see Prop 65 WARNINGS

Reviews

Dryer Accessories

Manuals & Guides

Specification Guide
Quick Reference Sheet
Owners Guide
Dimensional Diagram
In Stock
Items labeled In Stock will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items qualify for In Stock, the order will ship when all items are available to ship. In Stock may not apply to multiple quantities of the same product.
