Quick Specs

Product Information
Brand: American Range
Series: Villa Series
Model: ARR30WD
MPN: ARR-30WD
Appearance
Fuel Type: Electric
Style: Warming Drawer
Color: Stainless Steel
Stainless Steel Handle: Yes
Viewing Window: No
Drawer: Warming
Clock: No
Dimensions
Cutout Width: 28 5/8 Inch
Cutout Depth: 24 Inch
Cutout Height: 9 3/16 Inch
Exterior Width: 30 Inch
Exterior Depth: 24 1/4 Inch
Exterior Height: 9 7/8 Inch
Oven Features
Capacity: 1.6 Cu. Ft.
Convection: Yes
Self-Cleaning: No
Control Type: Digital
Delay Bake: No
Digital Temperature Display: Yes
Interior Oven Light: No
Sabbath Mode: Yes
Temperature Probe: No
Timer: Yes
Technical Details
Wattage: 800
Amps: 15
Voltage: 120 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
Price:
$1,699.00
& FREE Nationwide Delivery

Special Order

Image Disclaimer

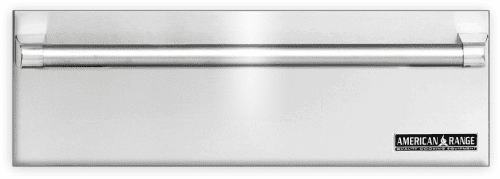

American Range Villa Series ARR30WD

30 Inch Warming Drawer
  • 1.6 cu. ft. Capacity
  • 800 Watt Element
  • 2 Convection Fans
  • Sabbath Mode
  • Digital Display
Color: Stainless Steel
Stainless Steel
ARR30WD
$1,699.00

Quick Specs

Product Information
Brand: American Range
Series: Villa Series
Model: ARR30WD
MPN: ARR-30WD
Appearance
Fuel Type: Electric
Style: Warming Drawer
Color: Stainless Steel
Stainless Steel Handle: Yes
Viewing Window: No
Drawer: Warming
Clock: No
Dimensions
Cutout Width: 28 5/8 Inch
Cutout Depth: 24 Inch
Cutout Height: 9 3/16 Inch
Exterior Width: 30 Inch
Exterior Depth: 24 1/4 Inch
Exterior Height: 9 7/8 Inch
Oven Features
Capacity: 1.6 Cu. Ft.
Convection: Yes
Self-Cleaning: No
Control Type: Digital
Delay Bake: No
Digital Temperature Display: Yes
Interior Oven Light: No
Sabbath Mode: Yes
Temperature Probe: No
Timer: Yes
Technical Details
Wattage: 800
Amps: 15
Voltage: 120 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

American Range
Inspired by their passion for perfection, renowned for their product innovation and quality, American Range is a recognized leader in the commercial food service industry. Their commercial workhorse pedigree has been proven in the world's most demanding kitchens for over past 30 years. In that time, innovative technology and robust engineering have advanced every aspect of their cooking equipment. Their commercial equipment is constructed to withstand the challenges of the most demanding chefs and kitchens. Available at AJ Madison.

They earnestly feel they have perfected the professional home range. Their residential professional line of gas ranges, French-door wall ovens, and cook-tops are commercial grade. Their professional cooking products have the soul and capability of their commercial ranges bended with luxurious style. To summarize, they have 'civilized' their commercial ranges.

Specifications

Specifications
Capacity:
1.6 Cu. Ft.
Heating Element:
800 Watts
Convection Fans:
2
Temperature Range:
80°F to 195°F
Operating Modes:
Timed, Continuous, Sabbath
Electrical Supply:
120 VAC 15 Amp 60 Hz Single Phase
Shipping Weight:
75 Lbs.
Dimensions
Interior Width:
22 1/2"
Interior Depth:
6"
Interior Height:
20 1/2"
Overall Width:
29 7/8"
Overall Depth:
24 1/4"
Overall Height:
9 7/8"
Cutout Width:
28 5/8"
Cutout Depth:
24" Min.
Cutout Height:
9 3/16"

Features

Features
  • Electronic controls hidden behind the front panel are kitchen-design friendly.
  • One-touch controls presets, adjustable drawer temperatures and on-times.
  • Easy-to-read digital display of time and temperature simplifies programming.
  • Automatic shut-off at end of cycle helps save energy.
  • Adjust, Add and Remove function keys make memory programming easy.
  • Sabbath mode for up to 84 hours of hands-free operation.
  • Four radiant heaters take the drawer from 70°F to 140°F in 4 minutes and to 90°F in 9 minutes.
  • Heaters are easy to replace and unit continues to function, creating a "safe-landing" should one or more heaters fail during operation.
  • Two convection fans hold the drawer at a uniform temperature to +/- 1°F accuracy.
  • Drawer capacity is truly proportional to product width, larger models have a larger drawer (30" and 36" only).
  • Best quality Triple-Play cabinet slides keeps the drawer from wobbling.
  • Low sides on drawer make loading and unloading easy and clean-up a snap.
Specifications
  • Computer control of time and temperature.
  • Standard kitchen cabinets widths.
  • Three-slides on the drawer for increased stability.
  • Timed, Continuous and Sabbath modes.
  • Four infrared heaters and two convection fans standard in all models.
  • Design protected under U.S. Patent 7,166,821.
