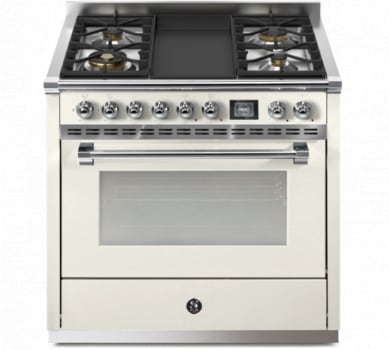

Steel Cucine Ascot Series AQY9S4TNAC - 36 Inch Freestanding Dual Fuel Range

Steel Cucine Ascot Series AQY9S4TNAC - 36 Inch Freestanding Dual Fuel Range 4 Burners + Dual Frytop

Steel Cucine Ascot Series AQY9S4TNAC - 36 Inch Freestanding Dual Fuel Range Combi-Steam

Image Disclaimer

Authorized

Dealer

Steel Cucine Ascot Series

AQY9S4TNAC

36 Inch Freestanding Dual Fuel Range with 4 Sealed Burners, 3.75 cu. ft. Convection Oven, Dual Frytop, Storage Drawer, Combi-Steam, INNVENT® System, and Sabbath Mode: Nuvola with Chrome Accents

Be the first to write a review

Top Quality Store on Google

Only 2 left in stock

quick specs

Sabbath Mode: Yes

Fingerprint Resistant: No

Cooktop: Sealed Burner & Griddle

Drawer: Storage

Width: 35 3/8 Inch

Depth: 25 Inch

Height: 35 7/16 Inch

Alexa: No

Google Home: No

Number of Burners: 4

Primary Oven Capacity: 3.75 Cu. Ft.

Continuous Grates: Yes

Convection: Yes

Self-Cleaning: Yes

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Color: Nuvola with Chrome Accents

Antracite with Chrome Accents

AQY9S4TANC

$9,999.00

Antracite with Brass Accents

AQY9S4TANO

$9,999.00

Nuvola with Chrome Accents

AQY9S4TNAC

$9,999.00

Nuvola with Brass Accents

AQY9S4TNAO

$9,999.00

^$9,999^.00

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Steel Cucine

Series: Ascot Series

Model: AQY9S4TNAC

MPN: AQY9S-4T NA-C

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Style: Freestanding

Color: Nuvola

Trim Color: Chrome

Fingerprint Resistant: No

Stainless Steel Handle: No

Cooktop: Sealed Burner & Griddle

Cooktop Control Type: Knobs

Oven Control Type: Digital

Viewing Window: Yes

Double Oven: No

Drawer: Storage

Clock: Yes

Downdraft Venting: No

Dimensions

Width: 35 3/8 Inch

Depth: 25 Inch

Height: 35 7/16 Inch

Interior Width: 23 13/16 Inch

Interior Depth: 16 59/64 Inch

Interior Height: 13 25/32 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: None

Smart

WiFi: No

Bluetooth: No

Alexa: No

Google Home: No

Remote Control: No

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

AI Technology: No

Capacity

Number of Burners: 4

Primary Oven Capacity: 3.75 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 4200 / 3000 BTUs - Simmer (NG/LP)

Burner 2 Output: 7500 / 5600 BTUs - Semi-Rapid (NG/LP)

Burner 3 Output: 11500 / 9500 BTUs (NG/LP)

Burner 4 Output: 13500 / 10600 BTUs (NG/LP)

Gas Cooktop Features

Continuous Grates: Yes

Cooktop Accessory: Griddle

Grill: No

Griddle: Yes

French Top: No

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: No

Fast Preheat: Yes

No Preheat: No

Convection: Yes

Proof Mode: Yes

Self-Cleaning: Yes

Self-Cleaning Type: Steam

Steam Clean: Yes

Racks: 2

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler Element Location: Top

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: No

Sous Vide: No

Steam Assist: Yes

Soft Close: Yes

Technical Details

ADA Compliant: No

Energy Star Rated: No

LP Conversion: Yes - Kit Included

Amps: 30

Voltage: 120 Volts

GTIN

UPC: 8057628403852

Description
Specifications
Features
Rebates
Reviews

Description

36 Inch Freestanding Dual Fuel Range with 4 Sealed Burners
Semiprofessional stainless steel range cookers for domestic use, designed with advanced materials and technology to guarantee high-level performance. Inspired by tradition, they feature elegant aesthetics and refined details, available in four different metal finishes. A cooktop for every need, featuring brass burners and cast-iron grids for flexible, efficient cooking. Combi-steam oven and INNVENT® patented ventilation system in the 36-inch ovens ensure perfectly even cooking. Combining power and performance with energy efficiency, these cookers feature ECO and SHABBAT modes for minimal energy consumption.

Specifications

General Properties

Oven Functions:

Defrost, Static, Upper Element, Static Steam, Grill, Ventilated Grill, Fan Steam, Convection, Fast Heating, Proof

Type of Grate:

Enameled Cast Iron

Knob / Handle Material:

Metal

Interior Light:

3 (Halogen)

Kitchen Timer:

Yes

Sealed Burners:

Yes

Cooktop Performance

Total Cooking Zones:

6 (4 Burners + Dual Frytop)

Total Cooktop (NG/LP) BTU:

36,700 / 28,700

Simmer (NG/LP) BTU:

4,200 / 3,000

Semi-Rapid (NG/LP) BTU:

7,500 / 5,600

Rapid (NG/LP) BTU:

11,500 / 9,500

Wok (NG/LP) BTU:

13,500 / 10,600

Oven Performance

Oven Capacity:

3.75 cu. ft.

Bake/Broil Element Watts:

1,000 + 2,800 W

Convection Element Watts:

2,500 W

Lower Element Watts:

1,400 W

Technical Details

Amps:

25 A

Volts:

120 / 240 V

Frequency:

60 Hz

Power Cord Length:

46" (Included)

Plug Type:

NEMA 50-14P - 4 Prong

Energy Source:

Mixed Electric / Gas

Gas Type:

Natural Gas (5" WC)

Alternative Gas Type:

LP (10" WC) - LP Kit Included

Dimensions & Weight

Overall Dimensions (W x H x D):

35 3/8" x 35 7/16" x 24 9/16"

Adjustable Range Height:

35 7/16" Min - 36 7/32" Max

Overall Oven Interior Size (W x H x D):

23 13/16" x 13 25/32" x 16 59/64"

Net Weight:

251 lbs.

Features

4 Sealed Brass Burners

6 wide cooking zones to prepare easily the best family meal

3.75 cu. ft. Convection Oven

Delivers even, consistent cooking with faster preheat times and efficient heat distribution

Dual Zone Electric Frytop

Perfect for preparing fish and vegetables, offering an easy, efficient, and safe cooking experience

Storage Drawer

Conveniently designed to store metal cookware and accessories only

Combi-Steam

Combi-Steam to bake as you've always cooked, in shorter time, with less energy consumption, with better results

INNVENT® System

The patented INNVENT® system with double inverted rotation of the fans distributes heat evenly throughout the oven's cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking

Your oven door can remain closed all the cooking time, because you won't have the need to rotate the tray halfway

TFT Electronic Programmer

Features 11 cooking functions, 34 pre-set recipes, Eco Mode, Sabbath Mode, and both traditional and fan-assisted steam functions for versatile and intuitive cooking

Full Extension Telescopic Rack

Full extension telescopic rack rails for easy access to the oven cavity

Soft Closing Hinges

Softly guide the door shut so the oven door never slams

Additional Features

Kitchen Timer

Defrost

Fast Heating

Proof

Eco Mode

Sabbath Mode

Removable, Dishwasher Safe, Stainless Steel Oven Liners

Key Features

INNVENT® System

Our INNVENT® System is a patented double-inverted ventilation system engineered to ensure consistent heat distribution throughout the entire oven cavity."
