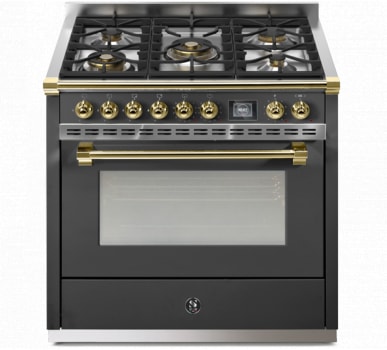

Steel Cucine Ascot Series AQY9S4MANO - 36 Inch Freestanding Dual Fuel Range

Image Disclaimer

Authorized

Dealer

Steel Cucine Ascot Series

AQY9S4MANO

36 Inch Freestanding Dual Fuel Range with 5 Sealed Brass Burners, 3.75 Cu. Ft. Total Oven Capacity, Convection Oven, Combi-Steam, INNVENT System, TFT Display, Continuous Grates, Combi-Steam and Sabbath Mode: Antracite with Brass Accents

Be the first to write a review

Top Quality Store on Google

Only 6 left in stock

quick specs

Sabbath Mode: Yes

Cooktop: Sealed Burner

Width: 35 3/8 Inch

Depth: 25 13/16 Inch

Height: 35 7/16 Inch

Alexa: No

Google Home: No

Number of Burners: 5

Primary Oven Capacity: 3.75 Cu. Ft.

Continuous Grates: Yes

Hot Surface Indicator Light: No

Convection: Yes

Self-Cleaning: Yes

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Color: Antracite with Brass Accents

Antracite with Brass Accents

AQY9S4MANO

$7,999.00

Antracite with Chrome Trim

AQY9S4MANC

$7,999.00

Nuvola with Brass Accents

AQY9S4MNAO

$7,999.00

^$7,999^.00

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Have questions? Chat with us!

Product Information

Brand: Steel Cucine

Series: Ascot Series

Model: AQY9S4MANO

MPN: AQY9S-4M AN-O

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Fuel Subtype 2: LP Convertible

Style: Freestanding

Color: Antracite

Trim Color: Brass

Cooktop: Sealed Burner

Cooktop Control Type: Knobs

Oven Control Type: Digital and Knobs

Viewing Window: Yes

Double Oven: No

Clock: Yes

Dimensions

Width: 35 3/8 Inch

Depth: 25 13/16 Inch

Height: 35 7/16 Inch

Interior Width: 23 13/16 Inch

Interior Depth: 16 59/64 Inch

Interior Height: 13 25/32 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: None

Smart

WiFi: No

Bluetooth: No

Alexa: No

Google Home: No

Remote Control: No

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

AI Technology: No

Capacity

Number of Burners: 5

Primary Oven Capacity: 3.75 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 4200 / 3000 BTUs - Simmer (NG/LP)

Burner 2 Output: 7500 / 5600 BTUs - Semi-Rapid (NG/LP)

Burner 3 Output: 11500 / 9500 BTUs (NG/LP)

Burner 4 Output: 13500 / 10600 BTUs (NG/LP)

Burner 5 Output: 17000 / 13100 BTUs (NG/LP)

Gas Cooktop Features

Continuous Grates: Yes

Cooktop Accessory: No Accessory

Grill: No

Griddle: No

French Top: No

Electric Cooktop Features

Hot Surface Indicator Light: No

Pan Detection: No

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: No

Fast Preheat: Yes

No Preheat: No

Convection: Yes

Proof Mode: Yes

Self-Cleaning: Yes

Self-Cleaning Type: Steam

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: No

Sous Vide: No

Steam Assist: Yes

Soft Close: Yes

Technical Details

ADA Compliant: No

Energy Star Rated: No

LP Conversion: Yes - Kit Included

Amps: 15

Voltage: 240 Volts

GTIN

UPC: 8058956676253

Description
Specifications
Features
Rebates
Reviews

Description

36 Inch Freestanding Dual Fuel Range with 5 Sealed Brass Burners
Semiprofessional stainless steel range cookers for domestic use, designed with advanced materials and technology to guarantee high-level performance.
Inspired by tradition, they feature elegant aesthetics and refined details, available in four different metal finishes.
Cook-tops for every need, with brass burners and cast-iron grids for the full-gas options, flex-induction for the full-electric models, and a combination of brass burners and an electric grill or plate for the hybrid options.
Combi-steam oven and INNVENT patented ventilation system in the 36-inch ovens ensure perfectly even cooking.
Power and performance, yet with a focus on energy saving: ECO and SHABBAT modes ensure the lowest consumption. The combi-steam system reduces temperature and cooking time while achieving superior results.

Specifications

General Properties

Oven Functions:

Defrost, static, upper element, static steam, grill, ventilated grill, fan steam, convection, fast heating, proof

Type of Grate:

Enameled cast iron

Knob/Handle Material:

Metal

Interior Light:

3+1 (halogen)

Kitchen Timer:

Yes

Sealed Burnes:

Yes

Main Oven Performance

Bake/Broil Element Watts:

1000 + 2800 W

Convection Element Watts:

2500 W

Lower Element Watts:

1400 W

Oven Volume:

3.75 cubic feet

Cook Top Performance

Total Cooking Zones:

Total Cook Top:

(NG/LP)

Simmer(NG/LP) BTU:

4200 / 3000

Semi-Rapid:

(NG/LP)

Rapid:

(NG/LP) BTU

Wok (NG/LP) BTU:

13500 / 10600

Mega-Wok(NG/LP) BTU:

17000 / 13100

Technical Details

Amperage:

15 A

Volts:

120 / 240 V

Frequency:

60 Hz

Power Cord Length:

46” (included)

Plug Type NEMA:

50-14P - 4 prong

Energy Source:

Mixed electric / gas

Gas Type:

Natural gas (5” wc)

Alternative Gas Type:

lp (10” wc) - LP kit included

Dimensions & Weight

Overall Dimensions:

W- 35 3/8” (89,8cm) H- 35 7/16” (90cm) D- 24 9/16” (62cm)

Adjustable Range Height:

35 7/16” (90cm) min, 36 7/32” (92cm) max

Overall Oven Interior Size:

W- 23 13/16” (60,5cm) H- 13 25/32” (35cm) D- 16 59/64 (43cm)

Net Weight:

251lbs (114kg)

Features

5 Sealed Brass Burners

Powerful 17,000 BTU double ring burner speeds cooking time

Combi-Steam

Combi-Steam to bake as you’ve always cooked, in shorter time, with less energy consumpltion, with better results

INNVENT System

INNVENT system with double inverted rotation of the fans distributes heat evenly throughout the oven’s cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking. Your oven door can

TFT Display

The advanced electronic programmer features a user-friendly TFT display and ensures precise temperature control throughout cooking.

It offers 11 distinct cooking functions plus 2 special modes: proofing for perfect dough rising and steam cleaning for effortless maintenance.

Additional Features

3.75 Cu. Ft. Total Oven Capacity

Convection Oven

Continuous Grates

Sabbath Mode

Key Features

INNVENT® System

Our INNVENT® System is a patented double-inverted ventilation system engineered to ensure consistent heat distribution throughout the entire oven cavity."
