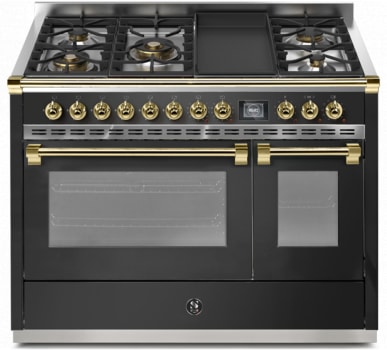

Steel Cucine Ascot Series AQY12SF4TMANO - 48 Inch Freestanding Dual Fuel Range

Image Disclaimer

Authorized

Dealer

Steel Cucine Ascot Series

AQY12SF4TMANO

48 Inch Freestanding Dual Fuel Range with 5 Sealed Brass Burners, 4.6 Cu. Ft. Total Oven Capacity, Convection Oven, Combi-Steam, INNVENT System, TFT Display, Continuous Grates, Electric Frytop Dual Zone, Combi-Steam, and Sabbath Mode: Antracite with Brass Accents

Be the first to write a review

Top Quality Store on Google

Only 3 left in stock

quick specs

Sabbath Mode: Yes

Cooktop: Sealed Burner & Griddle

Drawer: Storage

Width: 46 1/8 Inch

Depth: 24 9/16 Inch

Height: 35 7/16 Inch

Alexa: No

Google Home: No

Number of Burners: 5

Primary Oven Capacity: 3.2 Cu. Ft.

Continuous Grates: Yes

Convection: Yes

Self-Cleaning: Yes

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Color:

Antracite

Trim Color:

Brass

^$14,999^.00

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Have questions? Chat with us!

Product Information

Brand: Steel Cucine

Series: Ascot Series

Model: AQY12SF4TMANO

MPN: AQY12SF-4TM AN-O

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Fuel Subtype 2: LP Convertible

Style: Freestanding

Color: Antracite

Trim Color: Brass

Cooktop: Sealed Burner & Griddle

Cooktop Control Type: Knobs

Oven Control Type: Touch Sensor

Viewing Window: Yes

Double Oven: Yes

Drawer: Storage

Clock: Yes

Downdraft Venting: No

Dimensions

Width: 46 1/8 Inch

Depth: 24 9/16 Inch

Height: 35 7/16 Inch

Shabbos Compliance

Sabbath Mode: Yes

Smart

WiFi: No

Bluetooth: No

Alexa: No

Google Home: No

Remote Control: No

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

AI Technology: No

Capacity

Number of Burners: 5

Primary Oven Capacity: 3.2 Cu. Ft.

Secondary Oven Capacity: 1.4 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 4200/3000 BTUs (NG/LP)

Burner 2 Output: 7500 / 5600 BTUs (NG/LP)

Burner 3 Output: 11500 / 9500 BTUs (NG/LP)

Burner 4 Output: 17000 / 13100 BTUs (NG/LP)

Burner 5 Output: 13500/10600 BTUs (NG/LP)

Burner 6 Output: 2 x 1200 W (Dual Frytop)

Gas Cooktop Features

Continuous Grates: Yes

Cooktop Accessory: No Accessory

Grill: No

Griddle: Yes

French Top: No

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: No

Fast Preheat: Yes

No Preheat: No

Convection: Yes

Proof Mode: Yes

Self-Cleaning: Yes

Self-Cleaning Type: Steam

Steam Clean: Yes

Racks: 3

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler Element Location: Top

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: No

Sous Vide: No

Steam Assist: Yes

Soft Close: Yes

Technical Details

ADA Compliant: No

Energy Star Rated: No

Oven Wattage: 1,200

LP Conversion: Yes - Kit Included

Amps: 30

Voltage: 240 Volts

GTIN

UPC: 8058956676079

Description
Specifications
Features
Rebates
Reviews

Description

48 Inch Freestanding Dual Fuel Range with 5 Sealed Burners
Semiprofessional stainless steel range cookers for domestic use, designed with advanced materials and technology to guarantee high-level performance.
Inspired by tradition, they feature elegant aesthetics and refined details, available in four different metal finishes.
Cook-tops for every need, with brass burners and cast-iron grids for the full-gas options, flex-induction for the full-electric models, and a combination of brass burners and an electric grill or plate for the hybrid options.
Combi-steam oven and INNVENT patented ventilation system ensures perfectly even cooking.
Power and performance, yet with a focus on energy saving: ECO and SHABBAT modes ensure the lowest consumption. The combi-steam system reduces temperature and cooking time while achieving superior results.

Specifications

General Properties

Oven Functions:

Defrost, static, upper element, static steam, grill, ventilated grill, fan steam, convection, fast heating, proof

Type of Grate:

Enameled cast iron

Knob/Handle Material:

Metal

Interior Light:

3+1 (halogen)

Kitchen Timer:

Yes

Sealed Burnes:

Yes

Main Oven Performance

Bake/Broil Element Watts:

1000 + 2800 W

Convection Element Watts:

2500 W

Lower Element Watts:

1400 W

Oven Volume:

3.2 cubic feet

Side Oven Performance

Bake/Broil Element Watts:

1200 + 500 W

Lower Element Watts:

900 W

Oven Volume:

1.4 cubic feet

Cook Top Performance

Total Cooking Zones:

7 (5 burners + dual frytop)

Total Cook Top:

(NG/LP) BTU 53700 / 41800

Semi-Rapid:

(NG/LP) BTU 7500 / 5600

Rapid:

(NG/LP) BTU 11500 / 9500

Mega-Wok:

(NG/LP) BTU 17000 / 13100

Frytop:

2 X 1200 W

Technical Details

Amperage:

25 A

Volts:

120 / 240 V

Frequency:

60 Hz

Power Cord Length:

46” (included)

Plug Type NEMA:

50-14P - 4 prong

Energy Source:

Mixed electric / gas

Gas Type:

Natural gas (5” wc)

Alternative Gas Type:

lp (10” wc) - LP kit included

Dimensions & Weight

Overall Dimensions:

W- 46 1/8” (117cm) - adj 48” (121,92 cm)H- 35 7/16” (90cm), D- 24 9/16” (62cm)

Adjustable Range Height:

35 7/16” (90cm) min, 36 7/32” (92cm) max

Overall Oven Interior Size:

W- 23 13/16” (60,5cm), H- 13 25/32” (35cm), D- 16 59/64" (43cm)

Overall Oven Interior Size(side oven):

W- 10 15/64” (26cm), H- 13 25/32” (35cm), D- 16 59/64" (43cm)

Net Weight:

359lbs (163kg)

Features

15 Multifunction Cooking Modes

Choose from 15 versatile cooking functions, including convection, grill, steam-assisted cooking, rapid preheat, defrost, and dedicated bread proofing to achieve exceptional results for every recipe.

37 Preset Recipes

Take the guesswork out of cooking with 37 pre-programmed recipes that automatically select the ideal cooking mode, temperature, and time for meats, fish, desserts, breads, pizzas, side dishes, and more.

Combi-Steam Cooking

The integrated Combi-Steam oven combines steam and convection cooking to produce crisp exteriors, tender interiors, and exceptional moisture retention for professional-quality results.

INNVENT™ Dual Fan Convection System

Steel's patented INNVENT™ system utilizes dual counter-rotating fans to distribute heat evenly throughout the oven cavity, delivering consistent cooking results on every rack without rotating pans.

Meat Probe

Monitor the internal temperature of meats with the included temperature probe for precise, perfectly cooked results every time.

Steam-Clean Function

Clean the oven naturally using the power of steam to loosen baked-on residue, reducing the need for harsh chemicals and making cleanup faster and easier.

4.3" TFT Color Touch Display

A vibrant TFT touchscreen provides intuitive control of cooking functions, temperature, timers, delayed start, lighting, and oven status from a single easy-to-use interface.

Rapid Preheat

Bring the oven to the desired cooking temperature quickly, reducing wait times so you can begin cooking sooner.

Bread Proofing Function

A dedicated proofing mode maintains an ideal 82°F temperature to promote consistent dough rising for homemade breads, pizza dough, and pastries.

ECO Cooking Mode

Reduce energy consumption without sacrificing cooking performance by using the dedicated ECO mode for efficient everyday cooking.

Sabbath Mode

Sabbath Mode allows the oven to operate continuously for up to 24 hours with the lights off and reduced energy consumption to accommodate religious observances.

Soft-Close Oven Door

Premium soft-close hinges ensure smooth, quiet door operation while reducing wear and enhancing the overall cooking experience.

Enhanced Interior Lighting

An additional side-mounted oven light improves visibility throughout the cavity, making it easy to monitor multiple dishes without opening the door.

Removable Stainless Steel Side Panels

Dishwasher-safe stainless steel side panels can be removed for convenient cleaning and long-lasting oven maintenance.

Heavy-Duty Reinforced Oven Racks

Professional-grade oven racks feature reinforced 6 mm construction to provide exceptional strength and stability when supporting heavy cookware.

Professional Cooking Surface Options

Available with gas, induction, dual-fuel, griddle, frytop, and teppanyaki cooking configurations to suit a wide range of cooking styles and kitchen designs.

High-Efficiency Brass Burners

Premium brass burners deliver up to 60% greater efficiency than conventional aluminum burners, providing powerful, responsive, and even heat distribution.

Flexible Induction Cooking

Select induction models feature five cooking zones with dual flexible cooking areas that accommodate cookware of various shapes and sizes.

Additional Features

4.6 Cu. Ft. Total Oven Capacity

Continuous Grates

Electric Frytop Dual Zone

Soft Closing Hinges

Sabbath Mode

Key Features

INNVENT® System

Our INNVENT® System is a patented double-inverted ventilation system engineered to ensure consistent heat distribution throughout the entire oven cavity."
