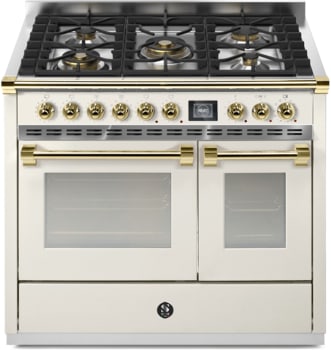

Steel Cucine Ascot Series AQY10SF4MNAO - 40 Inch Freestanding Dual Fuel Range

Image Disclaimer

Authorized

Dealer

Steel Cucine Ascot Series

AQY10SF4MNAO

40 Inch Freestanding Dual Fuel Range with 5 Sealed Brass Burners, 3.9 Cu. Ft. Total Oven Capacity, Convection Oven, Combi-Steam, TFT Display, Combi-Steam, and Sabbath Mode: Nuvola with Brass Accents

Be the first to write a review

Top Quality Store on Google

Only 1 left in stock

quick specs

Sabbath Mode: Yes

Cooktop: Sealed Burner

Width: 39 5/16 Inch

Depth: 24 9/16 Inch

Height: 35 7/16 Inch

Alexa: No

Google Home: No

Number of Burners: 5

Primary Oven Capacity: 2.5 Cu. Ft.

Continuous Grates: Yes

Convection: Yes

Self-Cleaning: Yes

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Color:

Nuvola

Trim Color:

Brass

^$10,499^.00

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Have questions? Chat with us!

Product Information

Brand: Steel Cucine

Series: Ascot Series

Model: AQY10SF4MNAO

MPN: AQY10SF-4M NA-O

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Style: Freestanding

Color: Nuvola

Trim Color: Brass

Stainless Steel Handle: Yes

Cooktop: Sealed Burner

Cooktop Control Type: Knobs

Oven Control Type: Digital and Knobs

Viewing Window: Yes

Double Oven: Yes

Clock: Yes

Dimensions

Width: 39 5/16 Inch

Depth: 24 9/16 Inch

Height: 35 7/16 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: None

Smart

WiFi: No

Bluetooth: No

Alexa: No

Google Home: No

Remote Control: No

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

AI Technology: No

Capacity

Number of Burners: 5

Primary Oven Capacity: 2.5 Cu. Ft.

Secondary Oven Capacity: 1.4 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 4200 / 3000

Burner 2 Output: 7500 / 5600

Burner 3 Output: 11500 / 9500

Burner 4 Output: 13500 / 10600

Burner 5 Output: 17000 / 13100

Gas Cooktop Features

Continuous Grates: Yes

Cooktop Accessory: No Accessory

Grill: No

Griddle: No

French Top: No

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: No

Fast Preheat: Yes

No Preheat: No

Convection: Yes

Proof Mode: Yes

Self-Cleaning: Yes

Self-Cleaning Type: Steam

Steam Clean: Yes

Racks: 2

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler Pan Included: Yes

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: No

Steam Assist: Yes

Soft Close: Yes

Technical Details

ADA Compliant: No

Energy Star Rated: No

Amps: 15

Voltage: 240 Volts

GTIN

UPC: 8058956676000

Description
Specifications
Features
Rebates
Reviews

Description

40 Inch Freestanding Dual Fuel Range with 5 Sealed Brass Burners
Semiprofessional stainless steel range cookers for domestic use, designed with advanced materials and technology to guarantee high-level performance.
Inspired by tradition, they feature elegant aesthetics and refined details, available in four different metal finishes.
Cook-tops for every need, with brass burners and cast-iron grids for the full-gas options, flex-induction for the full-electric models, and a combination of brass burners and an electric grill or plate for the hybrid options.
Combi-steam oven and INNVENT patented ventilation system ensure perfectly even cooking.
Power and performance, yet with a focus on energy saving: ECO and SHABBAT modes ensure the lowest consumption. The combi-steam system reduces temperature and cooking time while achieving superior results.

Specifications

General Properties

Oven Functions:

Defrost, static, upper element, static steam, grill, ventilated grill, fan steam, convection, fast heating, proof

Type of Grate:

Enameled cast iron

Knob/Handle Material:

Metal

Interior Light:

2+1 (halogen)

Kitchen Timer:

Yes

Sealed Burnes:

Yes

Main Oven Performance

Bake/Broil Element Watts:

850 + 1900 W

Convection Element Watts:

2100 W

Lower Element Watts:

1200 W

Oven Volume:

2.5 cubic feet

Side Oven Performance

Bake/Broil Element Watts:

1200 + 500 W

Lower Element Watts:

900 W

Oven Volume:

1.4 cubic feet

Cook Top Performance

Total Cooking Zones:

Total Cook Top (NG/LP):

BTU 53700 / 41800

Semi-Rapid (NG/LP):

BTU 7500 / 5600

Rapid (NG/LP):

BTU 11500 / 9500

Wok (NG/LP):

BTU 13500 / 10600

Technical Details

Amperage:

15 A

Volts:

120 / 240 V

Frequency:

60 Hz

Power Cord Length:

46” (included)

Plug Type NEMA:

50-14P - 4 prong

Energy Source:

Mixed electric / gas

Gas Type:

Natural gas (5” wc)

Alternative Gas Type:

lp (10” wc) - LP kit included

Dimensions & Weight

Overall Dimensions:

W- 39 5/16” (100cm), H- 35 7/16” (90cm), D- 24 9/16” (62cm)

Adjustable Range Height:

35 7/16” (90cm) min, 36 7/32” (92cm) max

Overall Oven Interior Size:

W- 18 19/64” (46,5cm), H- 13 25/32” (35cm), D- 16 59/64 (43cm)

Overall Oven Interior Size (Side Oven):

W- 10 15/64” (26cm), H- 13 25/32” (35cm), D- 16 59/64 (43cm)

Net Weight:

269lbs (122kg)

Features

5 Sealed Brass Burners

5 wide cooking zones to prepare easily the best family meals

Combi-Steam

Combi-Steam to bake as you’ve always cooked, in shorter time, with less energy consumpltion, with better results

The advanced electronic programmer features a user-friendly TFT display and ensures precise temperature control throughout cooking.

It offers 11 distinct cooking functions plus 2 special modes: proofing for perfect dough rising and steam cleaning for effortless maintenance.

Soft-Close Hinges

Soft closing hinges softly guide the door shut so the oven door never slams

Additonal Features

3.9 Cu. Ft. Total Oven Capacity

Convection Oven

Continuous Grates

Sabbath Mode
