Summit ALFZ37B - 20 Inch Built-In Upright Freezer

Image Disclaimer

Authorized

Dealer

Summit

ALFZ37B

20 Inch Built-In Upright Freezer with 2.68 Cu. Ft. Capacity, Adjustable Shelves, Insulated Door, Temperature Alarms, and ADA Compliant: Black

Average rating of
1 review

Top Quality Store on Google

quick specs

Sabbath Mode: No

Counter Depth: Yes

Total Capacity: 2.68 Cu. Ft.

Width: 19 3/4 Inch

Depth: 22 1/2 Inch

Depth with door at 90°: 40 1/4 Inch

Height: 32 Inch

WiFi: No

Defrost: Manual

Ice Maker: No

Quick Freeze: No

Type of Shelves: Wire

Approved for Medical Use: No

Approved for Outdoor Use: No

Color: Black

Stainless Steel Cabinet (Professional Handle)

ALFZ37BCSSHV

$1,899.00

Stainless Steel Cabinet

ALFZ37BCSS

$1,899.00

Stainless Steel Vertical Handle

ALFZ37BSSHV

$1,399.00

Stainless Steel Towel Bar Handle

ALFZ37BSSTB

$1,399.00

Integrated Solid Panel Ready

Black

ALFZ37B

$899.00

^$899^.00

MSRP: ~~$1,300.00~~

You save $401.00

Buy more & save up to $900

See all eligible items

$100

$200

$300

$400

$500

$600

$700

$800

$900

Current Offers

Summit Buy More Save More! Up to $900 Instantly! Expires 12/31/2026

Have questions? Chat with us!

Recommended Accessories & Add-ons

Summit

21 Inch Built-In All-Refrigerator

$769.00

Product Information

Brand: Summit

Model: ALFZ37B

Appearance

Type: Built In

Style: Upright

Size: Compact

Counter Depth: Yes

Undercounter: Yes

Color: Black

Trim Color: Black

Cabinet Color: Black

Hinge Side: Right

Field Reversible Doors: Yes

Glass Door: No

Accepts Custom Panels: No

Lock: No

Column: No

Capacity

Total Capacity: 2.68 Cu. Ft.

Dimensions

Width: 19 3/4 Inch

Depth: 22 1/2 Inch

Depth with door at 90°: 40 1/4 Inch

Height: 32 Inch

Height without hinges: 31 3/4 Inch

Shabbos Compliance

Sabbath Mode: No

Certification: None

Smart

WiFi: No

Alexa: No

Google Home: No

Remote Control: No

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

AI Technology: No

Features

Defrost: Manual

Ice Maker: No

Interior Light: No

Quick Freeze: No

Type of Shelves: Wire

Glass Shelves: No

Wire Shelves: Yes

Plastic Shelves: No

Stainless Steel Shelves: No

Number of Shelves: 3

Fingerprint Resistant: No

Smart Home / App Compatible: No

Remote Access: No

Usage: Residential

Garage Ready: No

LED Lighting: No

Push to Open: No

Soft Close: No

Technical Details

Energy Star Rated: No

CEE Rating: Not Available

ADA Compliant: Yes

Approved for Commercial Use: No

Approved for Medical Use: No

Approved for Outdoor Use: No

Amps: 15

Voltage: 115 Volts

GTIN

UPC: 761101074016

EAN: 0761101074016

Description
Specifications
Features
Rebates
Reviews

Description

20 Inch Built-In Upright Freezer with 2.68 Cu. Ft. Capacity
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.
The ALFZ37B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.
Inside, the ALFZ37B features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu. ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

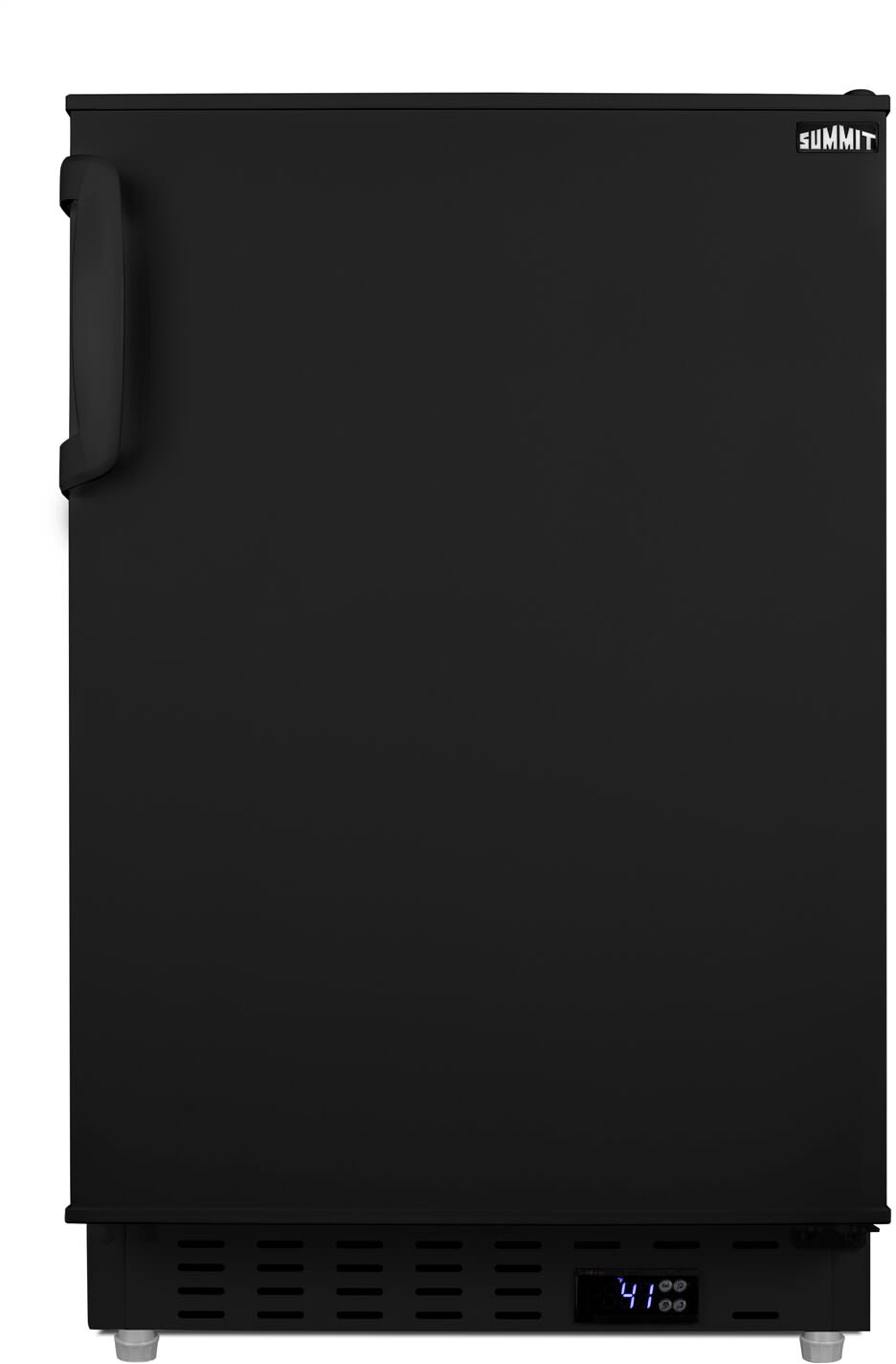

Sized at just 20" wide, the ALFZ37B is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47B all-refrigerator. Additional choices with a stainless steel cabinet and panel-ready styles are available.

Specifications

Product Overview

Height of Cabinet:

31 3/4"

Height to Hinge Cap:

32"

Width:

19 3/4"

Width with Door Open:

20 1/4"

Depth:

22 1/2"

Depth with Handle:

24 3/8"

Depth with door at 90°:

40 1/4"

Capacity:

2.68 cu. ft. (76 L)

Defrost Type:

Manual

Door:

Black

Cabinet:

Black

ADA Compliant:

Yes

US Electrical Safety:

ETL

Canadian Electrical Safety:

ETL-C

Energy Usage/Year:

266.0kWh/year

Amps:

0.6

Voltage/Frequency:

115 V AC/60 Hz

Weight:

65 lb.

Shipping Weight:

70 lb.

Parts & Labor Warranty:

1 Year

Compressor Warranty:

5 Years

Freezer

Door Swing:

RHD

Reversible:

Yes

Interior Height:

23 3/4"

Interior Width:

14 1/2"

Interior Depth:

17"

Shelf Type:

Wire

Shelf Quantity:

Full Door Shelves:

Adjustable Shelves:

Yes

Thermostat Type:

Digital

Fan Type:

Exterior

Refrigerant Type:

R600a

Refrigerant Amount:

1.83 oz.

High Side PSI:

180.0

Low Side PSI:

80.0

Level Legs:

Wheels:

Compressor Step Height:

5 3/4"

Compressor Step Width:

14 1/2"

Compressor Step Depth:

Temperature Range:

-13 to 5°F

Features

20 Inch Built-In All-Freezer

Built-In All Freezer with fully finished cabinets also allows for freestanding installation

2.68 Cu. Ft. Capacity

Adjustable Shelves and door bin storage offer additional storage of larger items

Adjustable Shelves

Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior

Door Shelves

Three removable door racks for additional storage of larger items

Manual Defrost

More temperature stability with an energy efficient manual defrost system

Open Door Alarm

Audible alarm will sound if the door is left ajar for over a minute

Temperature Alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Insulated Door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please refer to drawings to ensure adequate space

Adjustable Thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

Built-in Capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Fully Finished Black Cabinet

Allows the unit to be used freestanding

Sealed Back

Space-saving design that offers easier cleanability

Right-angle Plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Reversible Door

User-reversible door swing for added flexibility to best accommodate your setting

100% CFC Free

Environmentally friendly design without ozone-damaging chemicals

ADA Compliant

32-inch height allows easy installation under lower ADA compliant counters
