Description

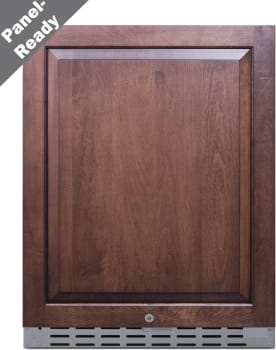

24 Inch Built-In Undercounter Outdoor Refrigerator with 4.2 cu. ft. Capacity
Summit's innovative lineup features built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters, with advanced weatherproof construction for convenient use in any outdoor kitchen.
The AL55OSCSSIF is a 24" wide outdoor refrigerator that meets residential and commercial standards and is ETL-S listed to NSF-7. Its sealed rear and complete stainless steel exterior offer true luxury designed to last outdoors. The front-breathing system allows built-in installation under lower ADA compliant counters, while the fully finished cabinet allows freestanding use. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A factory-installed lock offers security.
Inside, the AL55OSCSSIF has a digital control panel that allows you to manage the unit's temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two-door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior. Additional features include a high temperature alarm, Sabbath mode, and internal fan to ensure an evenly cooled interior.
With its advanced user features and versatile design, the AL55OSCSSIF is an excellent addition to any ADA-compliant outdoor setting looking for a customizable, reliable refrigerator. For this unit in complete stainless steel, see the AL55OSCSS.
Specifications
Overview
Height of Cabinet:
31.63" (80 cm)
Depth with Panel:
24.13" (61 cm)
Depth with door at 90°:
45.0" (114 cm)
Capacity:
4.2 cu.ft. (119 L)
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Energy Usage/Year:
250.0kWh/year
Voltage/Frequency:
115 V AC/60 Hz
Weight:
95.0 lbs. (43 kg)
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Refrigerator Features
Reversible:
Factory Reversible
Fan Type:
Interior and Exterior
Refrigerant Amount:
1.23oz.
Temperature Range:
36 to 46ºF
Dimensions
Interior Height:
23.5" (60 cm)
Interior Width:
19.0" (48 cm)
Interior Depth:
16.0" (41 cm)
Compressor Step Height:
5.5" (14 cm)
Compressor Step Width:
19.0" (48 cm)
Compressor Step Depth:
5.0" (13 cm)
Features
24" Wide Outdoor All-Refrigerator
- Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height
ADA-compliant
- 32” height allows for installation within ADA-compliant spaces
Panel-ready door
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their
Commercially approved
- ETL-S listed to NSF-7 commercial standards
Weatherproof design
- Durable construction for safe installation in outdoor kitchens
Built-In capable
- Front-breathing design allows the unit to be built-in under counters
Digital control panel
- Makes for easy temperature reading/management with electronic controls inside
Factory installed lock
- Keyed lock for secure interior
Stainless steel exterior
- Durable construction with a stylish look
White interior
- Classic interior allows for easy cleaning and viewing of products
Adjustable glass shelving
- Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents
Brake shelving system
- Provides added safety when loading and unloading the unit's 3 shelves
Slotted floor
- Allows for easy storage of bottles
Automatic defrost
- Reduced maintenance with auto defrost system
Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Interior light
- Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel
Temperature alarm
- Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode
- Optional feature disables alarms, interior light, and displays for up to 96 hours
Quiet operation
- Runs under 34 dB for a quiet performance that won't interrupt your conversation
100% CFC free
- Environmentally friendly design with no ozone-damaging chemicals
CARB compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
