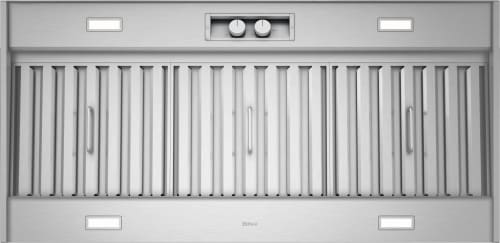

Zephyr Pro Collection AK9846BS - Front View
Zephyr Pro Collection AK9846BS - Front View
Zephyr Pro Collection AK9846BS - 3/4 View
Zephyr Pro Collection AK9846BS - Lifestyle View
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Pro Collection AK9846BS
Authorized
Dealer

Zephyr Pro Collection
AK9846BS
Spruce Undercabinet Outdoor Insert Range Hood with 3-Speed 1200 CFM Blower, Directional LumiLight LED Lighting, Metallic Knob Controls, Pro Baffle Filters, Stainless Steel Grease Tray, and UL Listed: 48" Width

Top Quality Store on Google
Only 1 left in stock
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 46 3/8 Inch
Depth: 22 1/2 Inch
Height: 16 3/8 Inch
WiFi: No
CFM: 1,200 CFM
Noise Level: 3.5 Sones
Duct Size: 10 Inch
Number of Fan Speeds: 3
Lights: LED
Delay Shut-Off: No
View more
Width: 48" Width
36" Width
36" Width
AK9834BS
$1,899.00
42" Width
42" Width
AK9840BS
$1,999.00
48" Width
48" Width
AK9846BS
$2,199.00
In stock
60" Width
60" Width
AK9858BS
$2,499.00
$2,199.00
MSRP: $2,399.00
You save $200.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: Zephyr
Series: Pro Collection
Model: AK9846BS
Appearance
Style: Standard Hood
Type: Insert Liner
Color: Stainless Steel
Mounting Type: Under Cabinet
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 46 3/8 Inch
Depth: 22 1/2 Inch
Height: 16 3/8 Inch
Smart
WiFi: No
Bluetooth: No
Capacity
CFM: 1,200 CFM
Noise Level: 3.5 Sones
Duct Size: 10 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Technical Details
Amps: 10
Voltage: 120 Volts
GTIN
UPC: 646328010644
Are you a Trade Pro? Join Now

Description

Spruce Undercabinet Outdoor Insert Range Hood with 3-Speed 1200 CFM Blower
The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, directional LumiLight LED lighting, and pro baffle filters to enhance airflow.

Specifications

Blower Performance
Blower Type:
Internal
Blower CFM (Min. - Max.):
450 - 1200
Sones (Min. - Max.):
3.5 - 9
Features
Color:
Stainless Steel
Controls:
Knobs
Speed Levels:
5
Auto Delay-Off:
No
Lighting:
LumiLight LED, 6W x4
Dual-Level Lighting:
Yes
Filters:
Pro Baffles x2
Recirculating Option:
No
Duct Specifications
Vertical Internal Blower:
10" Round
Electrical Specifications
AC Power:
120V, 60Hz at Max. 6.5A
Dimensions
Mounting Height Range:
30" - 36"
Width:
46 3/8"
Depth:
22 1/2"
Height:
16 3/8"
Warranty
Parts:
3 Years
Labor:
1 Year

Features

3-Speed 1200 CFM Blower
  • Powerful 3-Speed internal blower with speeds of 450 CFM (3.5 Sones) to 1200 CFM (9 Sones)
Directional LumiLight LED Lighting
  • Dual-level LED lighting illuminates the surface for more visibility
Metallic Knob Controls
  • Front knob controls give full access to all fan settings and lighting settings
Warranty
  • 3 years parts, 1 year labor
Additional Features
  • Pro Baffle Filters
  • Stainless Steel Grease Tray
  • UL Listed
