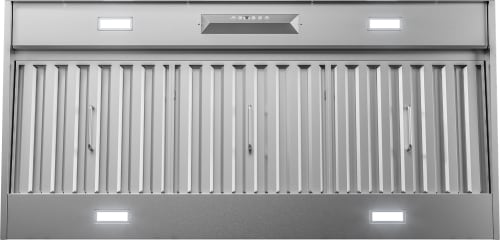

Zephyr Pro Power Monsoon II Series AK9346BS - Cabinet Insert Range Hood
Zephyr Pro Power Monsoon II Series AK9346BS - Cabinet Insert Range Hood
Zephyr Pro Power Monsoon II Series AK9346BS - Cabinet Insert Range Hood
Zephyr Pro Power Monsoon II Series AK9346BS - Cabinet Insert Range Hood
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Pro Power Monsoon II Series AK9346BS
Authorized
Dealer

Zephyr Pro Power Monsoon II Series
AK9346BS
Cabinet Insert Range Hood with 6-Speed/1200 CFM Blower, Electronic Touch Controls, LumiLight LED Lighting, Baffle Filters, and Airflow Control Technology™: 48" Width

Top Quality Store on Google
quick specs
Style: Canopy Pro Style
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 46 3/8 Inch
Depth: 22 1/2 Inch
Height: 12 Inch
WiFi: No
Remote Control: Yes
CFM: 1,200 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 9 Sones
Duct Size: 10 Inch
Number of Fan Speeds: 6
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 48" Width
36" Width
36" Width
AK9334BS
$1,799.00
In stock
42" Width
42" Width
AK9340BS
$1,899.00
48" Width
48" Width
AK9346BS
$1,999.00
54" Width
54" Width
AK9352BS
$2,099.00
In stock
$1,999.00
MSRP: $2,199.00
You save $200.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

24 Inch Freestanding/Built-In Dual Zone Wine Cooler
Zephyr
24 Inch Freestanding/Built-In Dual Zone Wine Cooler
$1,899.00
24 Inch Dual Zone Refrigerator Drawers
Zephyr
24 Inch Dual Zone Refrigerator Drawers
$2,899.00
24 Inch Freestanding Kegerator & Beverage Cooler
Zephyr
24 Inch Freestanding Kegerator & Beverage Cooler
$2,199.00
24 Inch Built-In Dual Zone Wine & Beverage Cooler
Zephyr
24 Inch Built-In Dual Zone Wine & Beverage Cooler
$1,999.00
Product Information
Brand: Zephyr
Series: Pro Power Monsoon II Series
Model: AK9346BS
Appearance
Style: Canopy Pro Style
Type: Cabinet Insert
Color: Stainless Steel
Trim Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 46 3/8 Inch
Depth: 22 1/2 Inch
Height: 12 Inch
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Capacity
CFM: 1,200 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 9 Sones
Duct Size: 10 Inch
Features
Number of Fan Speeds: 6
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
CEE Rating: Not Available
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 646328008337
EAN: 0646328008337
Are you a Trade Pro? Join Now

Description

Cabinet Insert Range Hood with 6-Speed/1200 CFM Blower
Now available with LumiLight LED lighting and our exclusive ACT™ technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.

Specifications

Blower Performance
Blower CFM (Min. - Max.):
450 - 1,200
Sones (Min. - Max.):
3.5 - 9
Blower CFM with ACT:
350 - 590
Features
ACT Technology:
Yes
Controls:
Electronic Touch
Speed Levels:
6
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Lighting:
LED Strip, 6W x4
Dual-Level Lighting:
Yes
Filters:
Pro Baffle
Grease Collection Tray:
Yes
Wireless Remote Control:
Yes
Recirculating Option:
No
ADA Compliant:
Yes
Duct Specifications
Vertical Internal Blower:
10" Round
Electrical Specifications
AC Power:
120V, 60Hz at Max. 7A
Dimensions
Mounting Height Range:
26" - 36"
Depth:
22 1/2"
Height:
12"
Warranty
Parts:
3 Years
Labor:
1 Year

Features

6-Speed
  • 6-speed electronic controls for every cooking situation.
1200 CFM Internal Blower
  • A powerful blower that is efficient and quiet.
LumiLight LED Lighting
  • Dual levels of LED light offer the perfect mood option for your kitchen.
Professional Baffle Filters
  • Dishwasher-safe, high-airflow pro baffle filters help trap grease and remove smoke.
CleanAir Function
  • Will turn the hood on once every four hours for 10 minutes to ensure the air is properly recirculated.
Airflow Control Technology™
  • We're proud to offer the industry's first Airflow Control Technology™ (ACT™), an exclusive feature built into specific Zephyr hoods that can limit the maximum blower CFM to 590, 390, or 290 to meet local code requirements.
Electronic Touch Controls
  • Allows you to adjust the fan speed, light level, delay-off function, and more.
Delay-Off Function
  • Includes an automatic delay-off feature, which allows you to set your hood to continue venting for 5 or 10 minutes after cooking is complete and then automatically powers your hood off.
Additional Features
  • Dual-Level Lighting
  • Auto Delay-Off
  • Wireless Remote Control
  • 22 1/2" Depth
  • Grease Collection Tray
  • ADA Compliant
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Owners Guide
ACT Conversion Sheet
