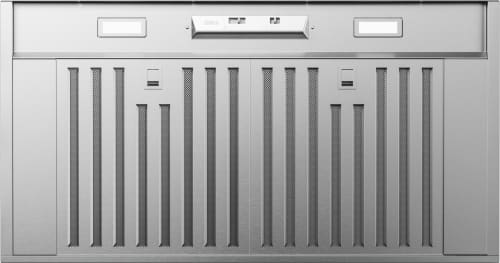

Zephyr Power Monsoon Mini Series AK9134BS - Front View
Zephyr Power Monsoon Mini Series AK9134BS - Front View
Zephyr Power Monsoon Mini Series AK9134BS - Left Side
Zephyr Power Monsoon Mini Series AK9134BS - Right Side
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Power Monsoon Mini Series AK9134BS
Authorized
Dealer

Zephyr Power Monsoon Mini Series
AK9134BS
36 Inch Insert Liner with 3-Speed 300 CFM Internal Blower, Mechanical Slide Controls, LumiLight LED Lighting, Hybrid Baffle Filters, 4 Sones Maximum, and Optional Recirculating Kit

Top Quality Store on Google
quick specs
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 34 3/8 Inch
Depth: 18 1/16 Inch
Height: 6 1/8 Inch
WiFi: No
CFM: 300 CFM
Permanent Air Flow Reduction: No
Noise Level: 4 Sones
Duct Size: 7 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
View more
$849.00
MSRP: $899.00
You save $50.00
OR

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Power Monsoon Mini Series
Model: AK9134BS
MPN: AK9134BS
Appearance
Type: Cabinet Insert
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 34 3/8 Inch
Depth: 18 1/16 Inch
Height: 6 1/8 Inch
Smart
WiFi: No
Bluetooth: No
Capacity
CFM: 300 CFM
Permanent Air Flow Reduction: No
Noise Level: 4 Sones
Duct Size: 7 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 10
Voltage: 120 Volts
GTIN
UPC: 646328009570
EAN: 0646328009570
Are you a Trade Pro? Join Now

Description

36 Inch Insert Liner with Hybrid Baffle Filters
Good things come in small packages, and in this case, it's the Monsoon Mini one-piece liner. Includes dual-level LumiLight LED Lighting, 3-speed mechanical slide controls, and hybrid baffle filters. Equipped with a 300-CFM blower and the ability to duct either vertically or horizontally.

Specifications

Performance
Internal Blower:
150 - 300 CFM
Internal Sones:
1.5 - 4
Features
Controls:
Mechanical Slide
Speed Levels:
3
Lighting:
2 35W Halogen
Lighting Levels:
2
Filters:
Hybrid Baffle
Recirculating:
Optional
Duct Specifications
Vertical - Internal:
7" Round, or 3 1/4" x 10"
Horizontal - Internal:
3 1/4" x 10"
Warranty
Parts:
3 Years
Labor:
1 Year
Dimensions
Width:
34 3/8"
Depth:
18 1/16"
Height:
6 1/8"

Features

3-Speed 300 CFM Internal Blower
  • 150-300 CFM blower speeds
Mechanical Slide Controls
  • Easy to use slide controls to operate the 3 blower speeds
LumiLight LED Lighting
  • Dual-level LED lighting to illuminate the cooktop
Hybrid Baffle Filters
  • Filter out residue and grease from cooking
Recirculating Option
  • Go from ducted to recirculating with the Recirculating Kit (ZRC-9100A)
Warranty
  • 3-years parts, 1-year labor
Additional Features
  • 4 Sones Maximum
  • Vertical or Horizontal Ducting
  • Optional Ductless Recirculating Kit
